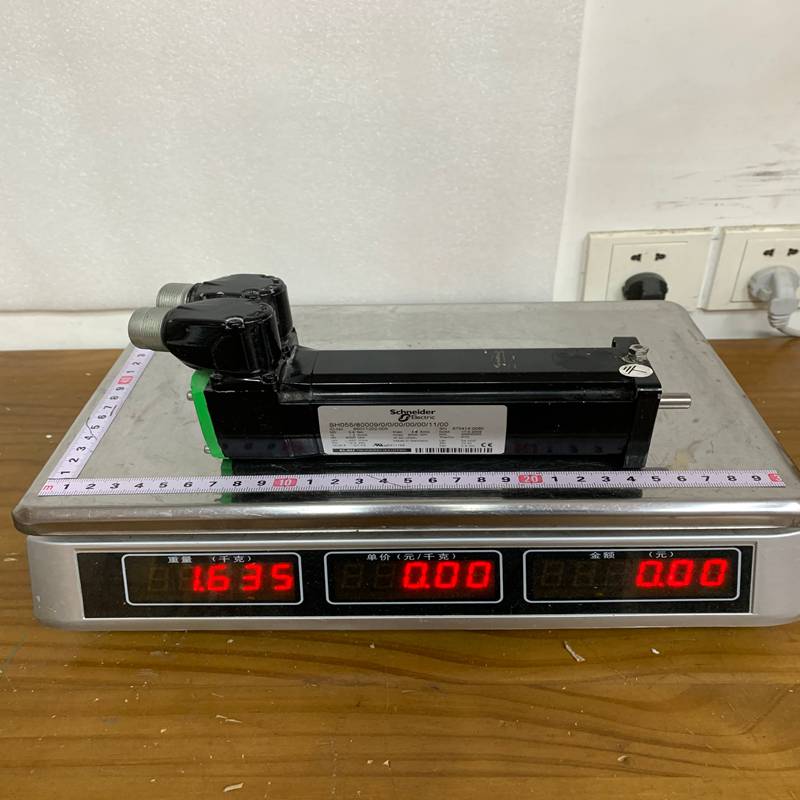

Schneider SH055/80009/0/0/00/00/00/11/00 Hydraulic Servo Valve

Description

Schneider SH055/80009/0/0/00/00/00/11/00 Hydraulic Servo Valve

The Schneider Electric SH055/80009/0/0/00/00/00/11/00 is a specific configuration of the Lexium SH3 high-performance AC servo motor. This motor series is designed to meet the rigorous demands of industrial automation, offering high power density, precision, and dynamic performance.

Product Detailed Description

The SH3 series motors are brushless three-phase AC synchronous servo motors. They are equipped with high-grade Neodymium-Iron-Boron (NdFeB) magnets, which allow for a compact design while maintaining high torque output. The long alphanumeric code represents a specific build-to-order configuration, defining the flange size, stack length, encoder type, shaft style, and degree of protection.

Technical Parameters (SH3-055 Specifics)

Product Advantages

• High Dynamics: Due to the low rotor inertia and high peak torque, this motor can achieve extremely fast acceleration and deceleration cycles.
• Precision Control: Integrated high-resolution encoders ensure accurate positioning and smooth velocity control, even at low speeds.
• Compact Power Density: The 55 mm flange size allows for integration into small-footprint machinery without sacrificing performance.
• Durability: Built with high-quality bearings and a robust housing, it is designed for a long service life in continuous-duty applications.
• Compatibility: Perfectly matched for use with Schneider Electric Lexium 32 and Lexium 52/62 servo drives.

Important Considerations (Precautions)

• Heat Dissipation: Servo motors can become very hot during operation. Ensure adequate ventilation and avoid touching the motor housing during or immediately after use.
• Shaft Loading: Do not exceed the maximum permitted radial and axial forces on the motor shaft. Excessive load can lead to premature bearing failure.
• Encoder Sensitivity: The internal encoder is a precision optical/magnetic component. Avoid mechanical shocks or heavy vibrations to the rear of the motor.
• Cabling: Use only genuine Schneider Electric shielded motor and encoder cables to prevent Electromagnetic Interference (EMI) and ensure signal integrity.

Product Applications

The SH3-055 series is ideal for high-speed, high-precision applications, including:

• Packaging Machinery: Used for bagging, labeling, and capping where rapid movements are required.
• Pick-and-Place Robots: Small delta robots or Cartesian systems requiring high agility.
• Textile Industry: Yarn tension control and high-speed weaving applications.
• Printing & Paper: Precision feed systems and registration control.
• Medical Equipment: Automated laboratory systems and high-speed sorting.
