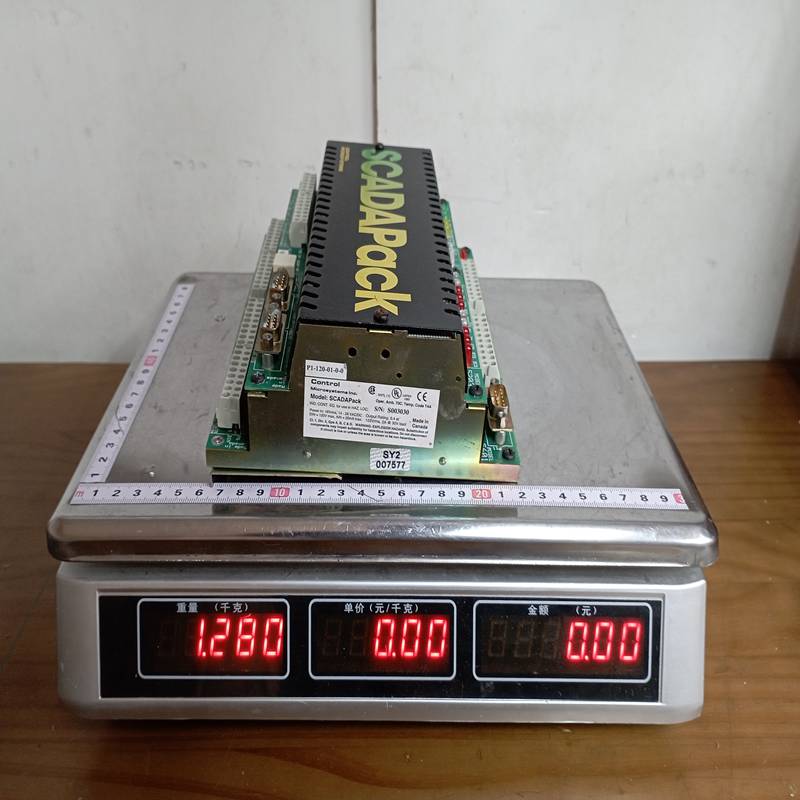

Schneider SCADAPACK Remote Terminal Unit

Description

Schneider SCADAPACK Remote Terminal Unit

The Schneider Electric SCADAPack series (including the 300, 400, and the latest 500 series) represents a high-performance line of Smart RTUs (Remote Terminal Units). They combine the programming environment of a PLC with the rugged communication capabilities of a remote telemetry unit.

Product Detailed Description

A SCADAPack is designed to monitor and control remote assets where reliable communication and low power consumption are critical. Unlike standard PLCs, SCADAPacks are optimized for low-bandwidth or intermittent links (such as radio, cellular, or satellite) and support native industrial telemetry protocols like DNP3 and IEC 60870-5-101/104.

The modern SCADAPack 500 series (e.g., 570, 575) runs on a high-speed processor and utilizes the EcoStruxure Control Expert (Unity Pro) or Remote Logix software for advanced logic execution.

Key Technical Parameters

Specifications vary by model (e.g., SCADAPack 334 vs. 575).

Product Advantages

• Optimized for Telemetry: Built-in support for “Time-stamping” at the source. If communication is lost, the RTU buffers data and back-fills the SCADA host once the link is restored.
• Extreme Durability: Hardened electronics designed to operate in harsh environments without fans or specialized cooling.
• Cybersecurity: Modern units (500 series) include Secure Boot and encrypted communication to protect remote infrastructure from cyber threats.
• Low Power Consumption: Ideal for remote sites powered by solar panels or batteries, with advanced power management modes.
• Hybrid Logic: Supports both Ladder Logic and high-level languages like C/C++ for complex calculations or custom drivers.

Important Considerations & Precautions

• Protocol Configuration: DNP3 configuration can be complex. Ensure “Event Deadbands” are set correctly to avoid flooding narrow-band radio networks with unnecessary data.
• Grounding: Remote sites are highly susceptible to lightning strikes. Proper surge protection and site grounding are mandatory to protect the integrated I/O.
• Firmware Updates: Always keep the bootloader and firmware synchronized. Mismatched versions can lead to communication stability issues.
• Battery Maintenance: If used in a solar application, ensure the charging circuit is calibrated for the specific battery chemistry (Lead-Acid vs. Lithium).

Product Applications

• Oil & Gas: Wellhead monitoring, pipeline pressure sensing, and flow measurement (Electronic Flow Measurement – EFM).
• Water & Wastewater: Remote pump station control, tank level monitoring, and leak detection in sprawling distribution networks.
• Renewable Energy: Monitoring solar farm performance and weather station data integration.
• Electrical Grid: Small substation automation and feeder monitoring where DNP3 is the required standard.
