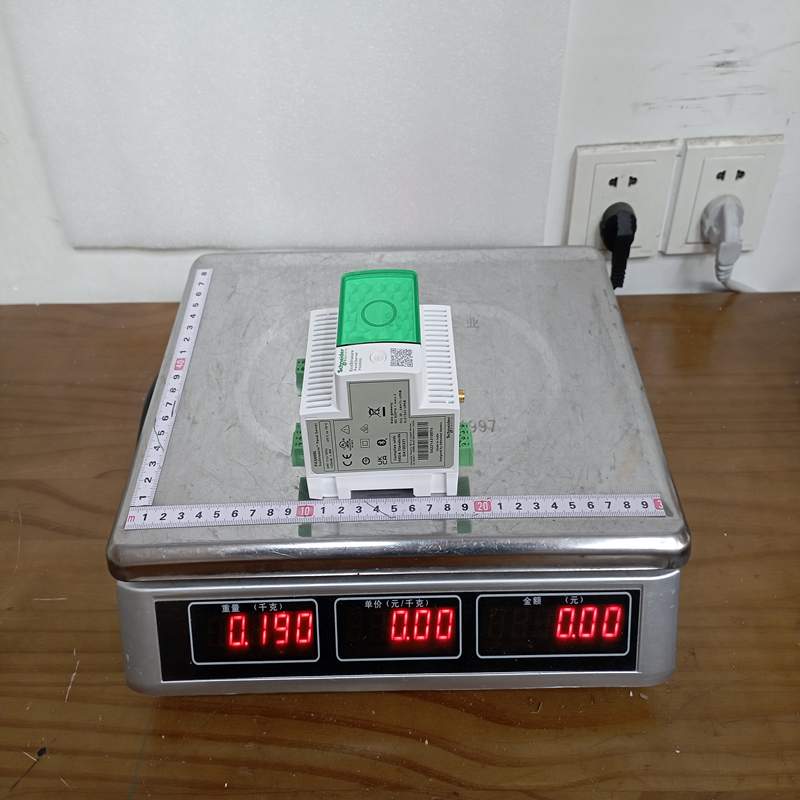

Schneider PAS600L General-purpose rack-mount server

Description

Schneider PAS600L General-purpose rack-mount server

The Schneider Electric PAS600L belongs to the EcoStruxure Panel Server generation of gateways. It is a high-performance modular gateway designed to connect wireless and wired smart IoT devices to edge control software or cloud applications, serving as the backbone for digital energy management.

The “L” in PAS600L typically designates the Entry / Light or localized architecture model within the Panel Server range, focusing on efficient data aggregation without the extensive onboard webpages found in the advanced variants.

Product Detailed Description

The PAS600L acts as an energy management hub. It collects data from various meters, circuit breakers, and sensors (via Modbus RTU, Modbus TCP, or wireless protocols) and concentrates this data. It then pushes the information upstream to building management systems (BMS), SCADA, or cloud platforms like Schneider’s EcoStruxure Asset Advisor.

Technical Parameters

Product Advantages

• Seamless Topology Integration: Dynamically bridges legacy serial (RS-485) instruments and cutting-edge wireless energy sensors (such as PowerLogic PowerTag) into a unified IP network.
• Enhanced Cyber Security: Developed in accordance with the IEC 62443-4-1 secure development lifecycle standard, featuring secure boot, encrypted communications, and user authentication protocols.
• High-Density Monitoring: Compact form factor allows it to be fitted easily into standard electrical distribution boards to monitor dozens of downstream circuits.
• Simplified Commissioning: Seamlessly integrates with EcoStruxure Power Commission software, enabling rapid discovery, configuration, and report generation for all connected field devices.

Important Considerations & Precautions

• Network Separation: Ensure proper IT/OT network isolation. Utilize the dual Ethernet ports correctly to separate the downstream device network from the corporate intranet if required by facility security guidelines.
• Wireless Range Boundaries: When utilizing wireless sensors (like PowerTag), be mindful of metal enclosure attenuation. If the panel door significantly dampens the radio signal, an external antenna extension may be required.
• Firmware Lifecycle: Regularly check for and apply firmware updates via the EcoStruxure platform to patch potential cybersecurity vulnerabilities and unlock new device drivers.
• Power Supply Integrity: Provide standard surge protection upstream of the gateway’s power input to prevent damage during severe voltage transients in industrial environments.

Product Applications

The PAS600L is widely deployed in power distribution systems across various sectors:

• Commercial Buildings: Concentrating data from lighting, HVAC, and power meters to achieve LEED or ISO 50001 energy certification compliance.
• Data Centers: Real-time monitoring of power usage effectiveness (PUE) by tracking branch circuits down to the individual server rack level.
• Industrial Facilities: Monitoring the health and energy consumption of critical production line components, preventing unscheduled downtime through predictive maintenance data.
• Healthcare Infrastructure: Safeguarding power continuity by integrating medical isolation panels and main distribution status into the facility’s central control room.
