SCHNEIDER BT-4/DIO1/10 Digital I/O Module

Description

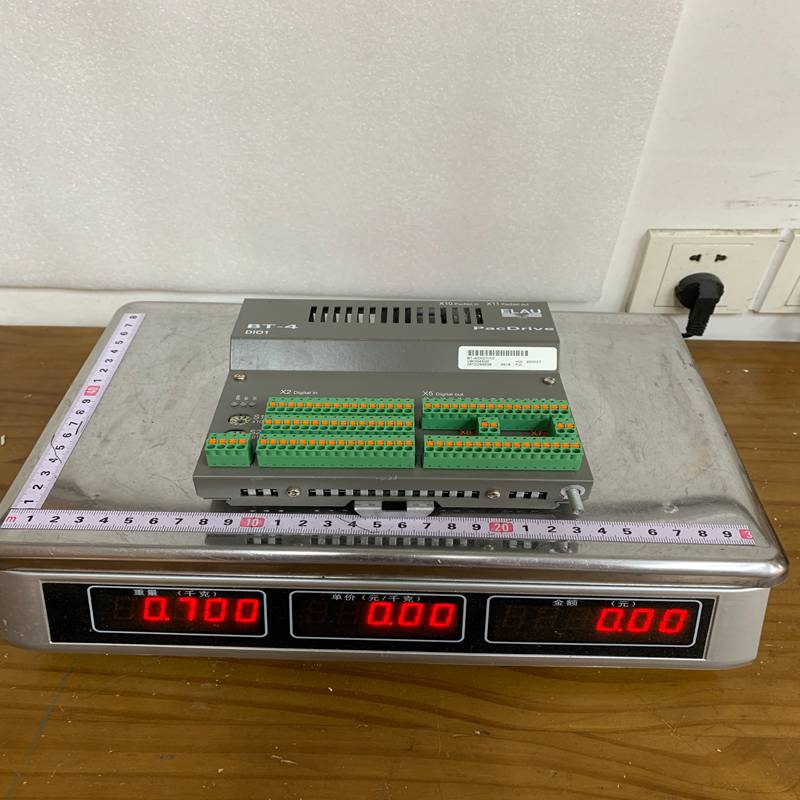

SCHNEIDER BT-4/DIO1/10 Digital I/O Module

The Schneider Electric BT-4/DIO1/10 (also referenced under Schneider/Elau material number VBO04S00 or 13130257) is a high-performance decentralized I/O bus terminal module. It belongs to the legacy ELAU PacDrive system (specifically integrated into PacDrive M and PacDrive 3 logic motion controllers like the LMC Eco, Pro, and Pro 2 series) used for high-speed packaging and motion control automation.

Product Detailed Description

The BT-4/DIO1/10 serves as a PacNet Bus Terminal designed to handle digital inputs and outputs on decentralized machinery sections. Instead of routing dozens of sensor and actuator wires back to a central control cabinet, this module communicates directly with the master motion controller over the deterministic PacNet fieldbus network. The “DIO1” code indicates its identity as a Digital Input/Output module, and it natively expands the logic and positioning control capabilities of a synchronized servo system.

Technical Parameters

Product Advantages

• Optimized for High-Speed Motion: Operates on the deterministic PacNet protocol, ensuring that digital inputs (like registration marks or proximity sensors) are captured with minimal jitter, matching high-speed servo cycles.
• Reduced Cabling Costs: By decentralizing the I/O near the sensors and actuators, it drastically lowers the physical wiring footprint, simplifying troubleshooting and decreasing commissioning times.
• Balanced I/O Density: Providing exactly 16 inputs and 16 outputs in a single compact terminal housing gives an ideal distribution for localized sub-assemblies on a machine line.
• Rugged Integration: Built explicitly to match the thermal and electromagnetic conditions found in demanding packaging and industrial processing machinery.

Important Considerations & Precautions

• Lifecycle Status: This module is technically designated as a discontinued/legacy component by Schneider Electric. When planning new automation installations, the modern Modicon or PacDrive 3 TM5/TM7 I/O systems should be used. Ensure you have reliable backup spares for existing infrastructure.
• Firmware & Controller Compatibility: The BT-4 module must correspond to the correct software configuration in your Max-4 or PacDrive LMC controller program. Mismatched device descriptions can cause fieldbus initialization faults.
• Current Limitations: Pay close attention to the total aggregate current drawn by the 16 digital outputs. Overloading the module’s 24V DC supply rails without supplemental distribution terminal blocks can cause the unit to overheat or trip out on thermal safety protection.
• Fieldbus Shielding: To avoid signal corruption over PacNet, the communication cable shields must be correctly terminated and grounded to mitigate high-frequency EMI from nearby servo drives.

Product Applications

The BT-4/DIO1/10 is prominently featured in high-speed, synchronized automation systems:

• Packaging Machinery: Controlling small solenoids, pneumatic valves, and collecting sensor feedback on form-fill-seal (FFS) machines, cartoners, and capping systems.
• Material Handling: Interfacing tracking sensors, photo-eyes, and diverter gates on high-speed sorting lanes synchronized with servo drives.
• Printing and Converting: Handling auxiliary digital signaling near unwinding/rewinding stations where precise, synchronized timing is required.
