Schneider 845-5051-000 Incremental Rotary Encoder

Description

Schneider 845-5051-000 Incremental Rotary Encoder

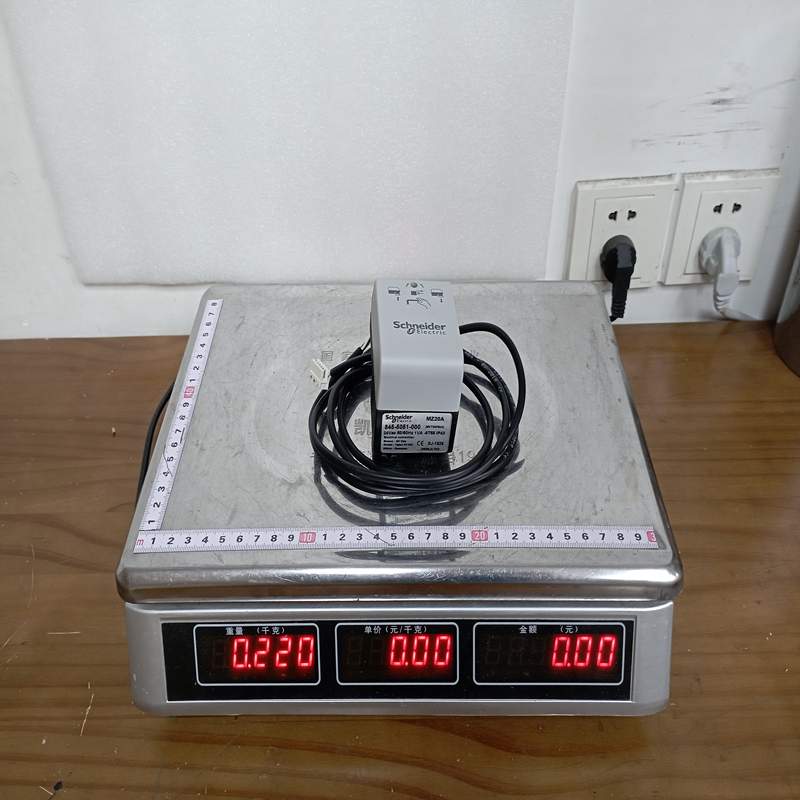

The Schneider Electric 845-5051-000 is a high-efficiency electric zone valve actuator belonging to the MZ20A series. It is a modulating, non-spring return linear actuator designed for precise fluid control in commercial and residential heating, ventilation, and air conditioning (HVAC) systems.

Product Detailed Description

The 845-5051-000 (MZ20A) is engineered to automate zone valves, providing modulating control based on signals received from climate controllers or building management systems (BMS). Because it is a non-spring return actuator, it retains its last physical position if electrical power is lost, which minimizes power surges during system restarts.

It delivers linear stem movement with a force of 200 Newtons (N), making it ideal for standard zone control applications without requiring massive power envelopes.

Technical Parameters

Product Advantages

• High Precision Modulating Control: Allows for infinite positioning between fully open and fully closed, enabling micro-adjustments to water flow for precise temperature stability.
• Energy Efficient: Operates on a very low power envelope (1 VA), helping reduce overall energy overhead in large commercial buildings with hundreds of zones.
• Compact Design: Small footprint allows it to fit easily into tight manifold cabinets, under-floor heating distribution boards, or compact fan coil unit (FCU) enclosures.
• Quiet Operation: Uses a high-grade synchronous motor and gear train that operates silently, which is crucial for hotels, offices, and residential applications.

Important Considerations & Precautions

• Mounting Orientation: To maintain the IP43 rating and prevent fluid leaks from damaging the internal electronics, never mount the actuator upside down (with the wire or housing pointing downward). Vertical or 45-degree angles are recommended.
• Manual Override: If manual regulation is needed during commissioning, ensure power is fully disconnected to avoid stripping internal gears when turning the manual adjustment mechanism.
• Power Supply: Ensure a dedicated, stable 24 V AC transformer is used. Fluctuations beyond the \pm15\% threshold can lead to erratic positioning or premature motor failure.
• Valve Compatibility: This actuator is matched specifically to Schneider’s dedicated zone valve bodies (such as the VZ series). Verify that the valve stem travel and thread match perfectly before locking it down.

Product Applications

The 845-5051-000 is widely used in commercial and residential HVAC hydronic systems:

• Fan Coil Units (FCUs): Regulating hot or chilled water flow to individual room fan coils in office complexes and hotels.
• Chilled Beams: Controlling local water loops in passive or active radiant chilled beam cooling architectures.
• Underfloor Heating Manifolds: Managing zonal loop temperatures across multi-room floor heating installations.
• Baseboard Radiators: Automating residential perimeter zone heating control.

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
