Schneider 140DDO35301 Discrete Output Module

Description

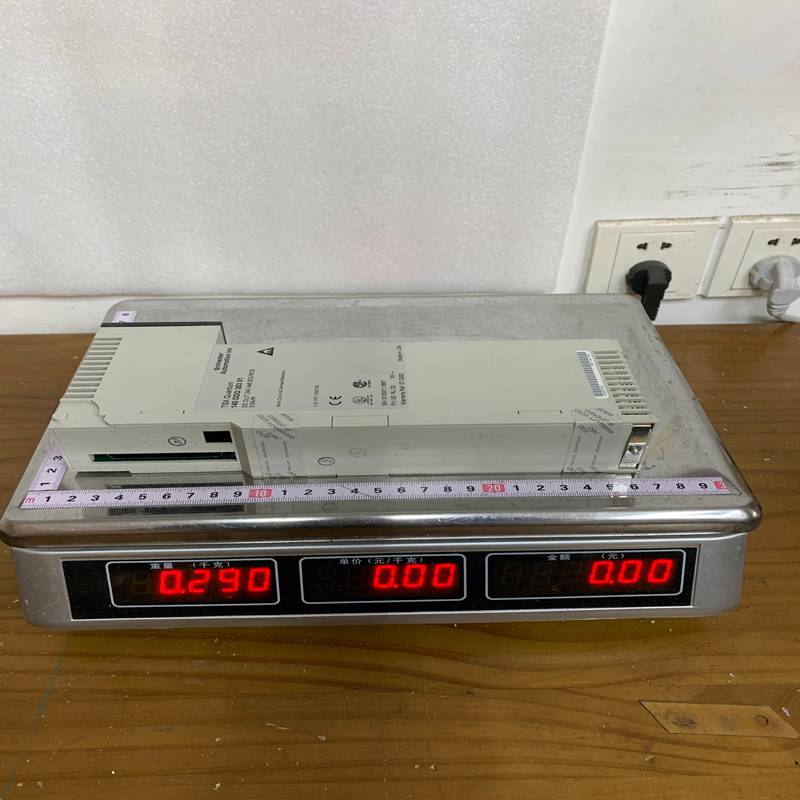

Schneider 140DDO35301 Discrete Output Module

The Schneider Electric 140DDO35301 is a high-density digital output module from the legacy Modicon Quantum automation platform. It is engineered for industrial control applications requiring highly reliable switching of solid-state and electromechanical loads.

Product Detailed Description

The 140DDO35301 is a 24 V DC, 32-Channel Source (Positive Logic) Digital Output Module. It interfaces the Quantum Programmable Logic Controller (PLC) with field devices, such as solenoids, actuators, relays, and indicators. The “Source” designation means the module supplies current to the load from the positive rail when a channel is activated.

Technical Parameters

Product Advantages

• High Density: Packing 32 channels into a single Quantum slot allows for maximum utilization of I/O rack space, reducing overall cabinet footprint.
• Fast Response Time: Boasting a switching speed of less than 1 millisecond, this module is highly suited for time-critical interlocking and rapid cycling applications.
• Grouped Isolation: The 32 channels are divided into 4 isolated groups of 8 channels each, allowing different groups to operate on separate power sources if required, which isolates faults.
• Comprehensive Diagnostics: LED status indicators on the front panel provide clear, immediate visual confirmation of the status of each output channel, simplifying troubleshooting.

Important Considerations (Precautions)

• External Fusing: This module does not feature internal electronic short-circuit protection for its outputs. Users must install external ultra-fast fuses for each channel or group to protect the module’s solid-state switches from permanent overcurrent damage.
• Inductive Load Suppression: When driving inductive loads (e.g., DC solenoids, contactor coils), it is mandatory to connect a flyback diode in parallel with the load to suppress inductive voltage spikes that can degrade or destroy the module’s transistors.
• Current Derating: Pay strict attention to the thermal limits. While each channel can handle 0.5 A, the maximum current for any single group of 8 channels cannot exceed 4 A simultaneously.
• Platform Status: The Modicon Quantum series is a mature product line. For new projects, it is highly recommended to look into modern replacements like the Modicon M580 platform, though the 140DDO35301 remains widely used as a spare part for existing infrastructure.

Product Applications

The 140DDO35301 is typically utilized in large-scale processes and infrastructure projects:

• Manufacturing Lines: Driving pneumatic valves, hydraulic actuators, and conveyor routing gates.
• Chemical & Refining: Actuating small pilot solenoid valves within distributed control schemes.
• Water Treatment Plants: Controlling signaling lamps, small dosing pumps, and motorized valve open/close commands.
• Power Plants: Interfacing control logic with intermediate auxiliary relays in substation or turbine control enclosures.
