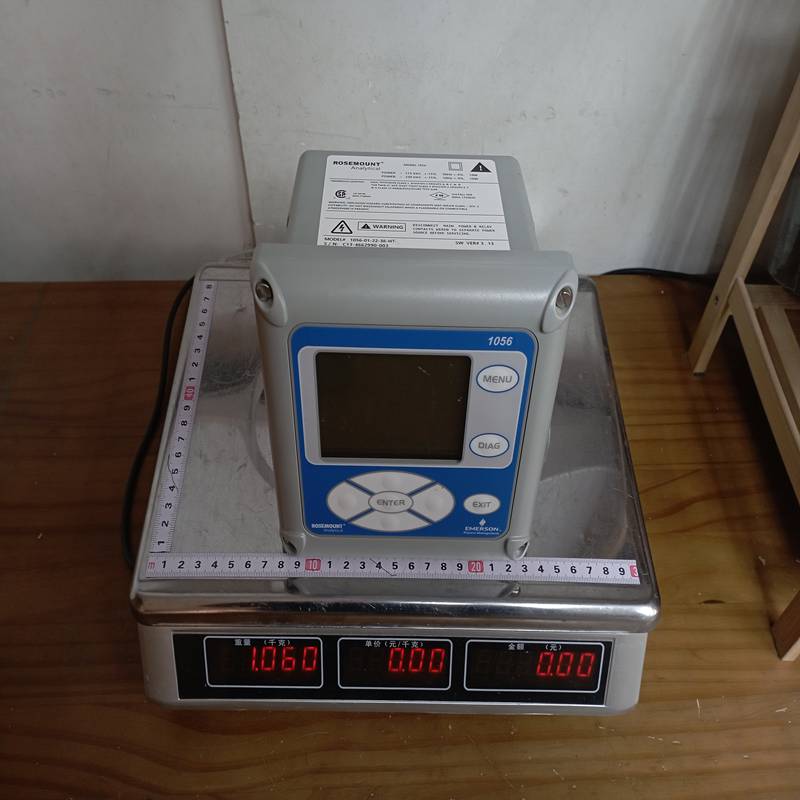

Rosemount 1056-01-22-38-HT 1056 Intelligent Four-Wire Transmitter

Description

Rosemount 1056-01-22-38-HT 1056 Intelligent Four-Wire Transmitter

Product Dimensions：

The Rosemount 1056 Dual-Channel Transmitter is a highly versatile instrument known for its “multi-parameter” capabilities. The specific configuration you provided (1056-01-22-38-HT) is a sophisticated setup typically used for liquid analysis.

1. Product Breakdown (Model Code)

To understand this specific unit, we have to decode the suffix:

• 01: Power supply (115/230 VAC, 50/60 Hz).

• 22: Measurement 1 (Contacting Conductivity).

• 38: Measurement 2 (Toroidal Conductivity/Electrodeless).

• HT: Special Option (HART Digital Communication).

2. Technical Specifications

The 1056 is designed to handle two sensors simultaneously, allowing for differential measurements or two independent readings.

3. Key Product Advantages

• Dual-Channel Versatility: Monitor two different types of conductivity (Contacting and Toroidal) on a single screen, saving space and reducing installation costs.

• User-Friendly Interface: Features a “Quick Start” programming menu that recognizes sensor boards automatically.

• HART Communication: The -HT option allows for remote diagnostics, configuration, and integration into asset management software.

• Robust Diagnostics: Continuous monitoring of sensor integrity and electronics for predictive maintenance.

• High Visibility: The display is easily readable even in direct sunlight or dim industrial environments.

4. Important Considerations (Precautions)

• Sensor Compatibility: Ensure that the sensors used match the “22” and “38” input cards. Using a pH sensor on a conductivity card will not work.

• Grounding: Proper grounding of the shielded sensor cable is critical to prevent signal noise and erratic readings.

• Environmental Exposure: While NEMA 4X rated, avoid installing the transmitter in direct steam paths or areas with extreme vibration.

• Power Supply: Verify your local voltage matches the -01 (AC) configuration before wiring to avoid blowing the internal fuse.

5. Product Applications

Because this specific model combines Contacting Conductivity (for high-purity water) and Toroidal Conductivity (for high-chemical/fouling environments), it is ideal for:

1. Water Treatment: Monitoring reverse osmosis (RO) efficiency and demineralizer performance.

2. Chemical Processing: Measuring concentration in cooling towers or acid/base dilution.

3. Food & Beverage: Clean-in-Place (CIP) systems where caustic or acid strength must be monitored.

4. Pulp & Paper: Monitoring black liquor or chemical recovery processes.
