Rexroth VT3002-1-2X/48F R900020154 Amplifier Board Base

Description

Rexroth VT3002-1-2X/48F R900020154 Amplifier Board Base

Product Dimensions：

Detailed Description

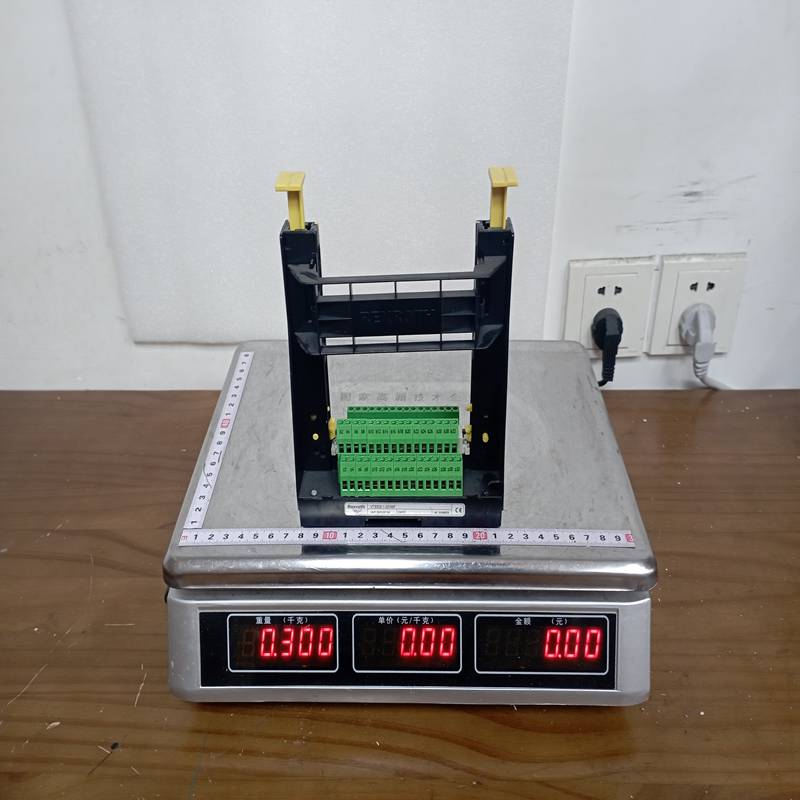

The Rexroth VT3002-1-2X/48F is a single Euro-format electronic card holder specifically designed for the secure installation, stable positioning, and clean wiring of individual amplifier boards or control cards within electronic control cabinets.

Belonging to component series 2X, this module acts as a robust physical and electrical interface between the field wiring and the plug-in electronic card. It bridges the gap by routing complex euro-card connections out into rugged, easily accessible screw-type terminal blocks.

Technical Parameters

Product Advantages

• Effortless Card Insertion & Release: Features a built-in lever mechanism and push buttons on both sides. This allows operators to easily lock or release amplifier boards without applying undue physical stress on the card’s faceplate or pins.
• Flexible Mounting Options: The base can be directly screwed onto a mounting plate or snapped onto standard TS35 DIN rails. It also includes an additional adapter within the standard scope of delivery for flexible vertical rail mounting.
• Robust Field Wiring: Equipped with high-quality, heavy-duty plug-in screw terminals that handle wire cross-sections up to 4 mm², ensuring vibration-proof field connections.
• Space-Saving Design: Its slim, compact footprint optimizes layout efficiency inside tightly packed control cabinets.

Precautions & Installation Notes

⚠️ Important Operational Guidelines:

• Power Off Before Service: Never insert or remove an electronic amplifier card from the holder while the power supply is actively switched on. Doing so risks causing electrical arcs that can permanently damage the card or the socket.
• Voltage Boundaries: Strictly abide by the maximum voltage limit of 48 VAC/VDC. Exceeding this threshold violates safety ratings and can lead to insulation breakdown.
• Environmental Clearance: Ensure adequate airflow inside the control cabinet to keep the ambient temperatures within the permissible -20^\circC to +70^\circC window, avoiding premature component degradation.
• Wiring Integrity: Ensure no stray wire strands escape the screw terminal blocks to prevent intermittent short circuits between tightly spaced pin assignments.

Product Applications

The VT3002-1-2X/48F is widely utilized in industrial environments using electro-hydraulic proportional and servo systems. Typical applications include:

• Control Cabinets: House proportional valve amplifiers, servo valve controllers, and signal conditioning cards.
• Industrial Hydraulics: Used heavily across plastic injection molding machinery, die-casting machinery, and metal forming presses.
• Factory Automation: Integrates modular analog/digital processing euro-cards into overarching PLC systems.
