Rexroth HCS02.1E-W0012-A-03-NNNN Single-Axis Servo Drive

Description

Rexroth HCS02.1E-W0012-A-03-NNNN Single-Axis Servo Drive

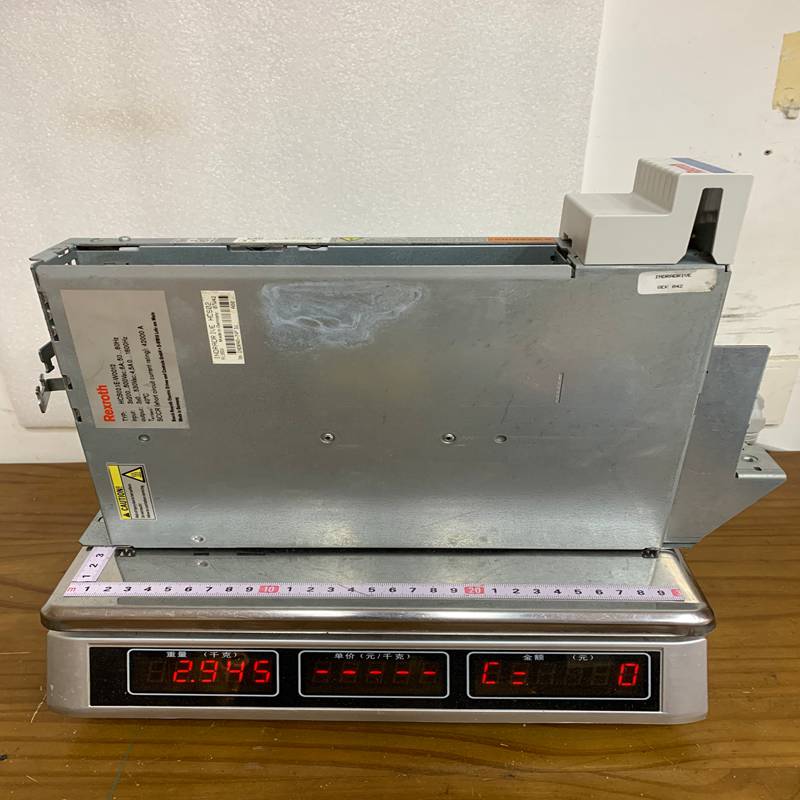

Product Dimensions：

The Rexroth IndraDrive C HCS02.1E-W0012-A-03-NNNN is a compact, versatile drive controller from Bosch Rexroth’s IndraDrive series. It is designed to provide high-performance motion control for single-axis applications in a space-saving “all-in-one” design that integrates both the power supply and the inverter.

Product Detailed Description

The HCS02 series is characterized by its compact design and high power density. The “E” designation indicates an Economy version, while “W0012” represents the current rating. This drive is part of a modular system that allows for various control units (like the BASIC or ADVANCED series) to be plugged into the power section, providing flexibility for different communication protocols (EtherNet/IP, PROFINET, SERCOS, etc.).

Technical Parameters

Product Advantages

• Integrated Design: Combines the power supply and inverter into a single unit, significantly reducing the required space in the control cabinet.
• Flexible Communication: Because the control unit is separate from the power section, the drive can easily adapt to different fieldbus systems by simply swapping the control card.
• Direct Mains Connection: Capable of connecting directly to 200V–500V power supplies without the need for additional transformers in most regions.
• Energy Efficiency: Supports DC bus sharing, allowing energy generated during braking by one drive to be used by another drive on the same bus.
• Digital Intelligence: Offers high-resolution encoder evaluation and advanced motion logic for precise positioning.

Important Considerations (Precautions)

• Control Unit Required: Note that the HCS02.1E-W0012 is the power section only. It requires a separate CSB or CDB control unit to function.
• Heat Dissipation: Ensure adequate clearance above and below the unit (typically 100mm) for proper vertical airflow. Failure to do so will trigger thermal protection.
• Residual Voltage: After turning off the power, wait at least 5 to 30 minutes (depending on the system size) for the DC bus capacitors to discharge to a safe level (< 50V) before touching terminals.
• Firmware Matching: If replacing a unit, ensure the firmware version on the control unit is compatible with the power section’s hardware revision.

Product Applications

The HCS02.1E-W0012 is ideal for applications requiring high precision in a small package:

• Packaging Machinery: High-speed labeling, wrapping, and pick-and-place systems.
• Printing and Paper: Controlling feed rollers and tensioning systems.
• Machine Tools: Small-scale CNC axis control and spindle drives.
• Handling Systems: Linear actuators and robotic gantry modules.
• Food & Beverage: Conveyor synchronization and dosing pumps.
