Rexroth FWA-ECODR3-SGP-03VRS-MS Servo Driver Firmware Module

Description

Rexroth FWA-ECODR3-SGP-03VRS-MS Servo Driver Firmware Module

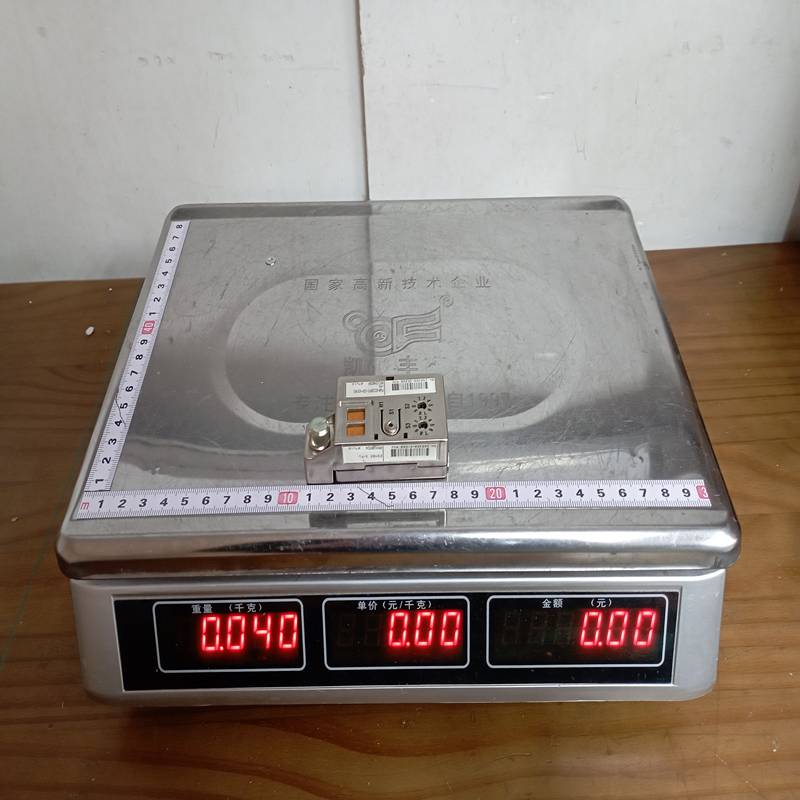

Product Dimensions：

The Rexroth FWA-ECODR3-SGP-03VRS-MS is a specialized Firmware Module (often in the form of a physical software module or “Firmware Key”) designed for the Bosch Rexroth EcoDrive03 (DKC series) servo drive system.

Product Detailed Description

The code “FWA-ECODR3-SGP-03VRS-MS” defines the functional intelligence of the drive. In the Rexroth ecosystem, the hardware (the drive) is separate from the firmware. This specific firmware module contains the operating system and control algorithms required to run the EcoDrive03 hardware for specific motion control tasks.

• FWA: Firmware
• ECODR3: EcoDrive03 Series
• SGP: Standard General Purpose (Functional package)
• 03VRS: Version 03, Standard Release
• MS: Multilingual (Standard)

Technical Parameters

Product Advantages

• Plug-and-Play Intelligence: Allows for the quick configuration of a drive by simply inserting the firmware module, making hardware replacement faster.
• Optimized Algorithms: The 03VRS version provides refined loop control for high-precision positioning and smooth velocity regulation.
• Standardized “SGP” Profile: The “Standard General Purpose” package covers a vast majority of industrial motion applications, reducing the need for specialized, expensive custom firmware.
• Multilingual Diagnostics: Simplifies troubleshooting for global maintenance teams by supporting multiple languages in the error code descriptions.

Important Considerations & Precautions

• Hardware Matching: Ensure your DKC drive hardware is compatible with “Version 03” firmware. Attempting to use V03 firmware on a drive designed for V01 hardware may result in a system fault or initialization error.
• Static Sensitivity: The firmware module is an electronic component. Handle it only at an ESD-protected workstation to prevent memory corruption from static discharge.
• Parameter Backup: Before swapping or updating a firmware module, always backup the drive parameters using DriveTop or IndraWorks software. Replacing the firmware often resets the drive to factory defaults.
• Firmware Locking: Once inserted and powered, the firmware “marries” the hardware settings. Do not remove the module while the drive is powered on.

Product Applications

The EcoDrive03 with SGP firmware is widely used in distributed automation architectures:

• Packaging Machinery: Coordinating multi-axis film feeding and sealing operations.
• Handling & Robotics: Pick-and-place units and Cartesian gantry systems requiring precise positioning.
• Printing Industry: Controlling feed rollers and tensioning systems where constant velocity is critical.
• General Automation: Any application using the SERCOS interface for high-speed, synchronized motion control.
