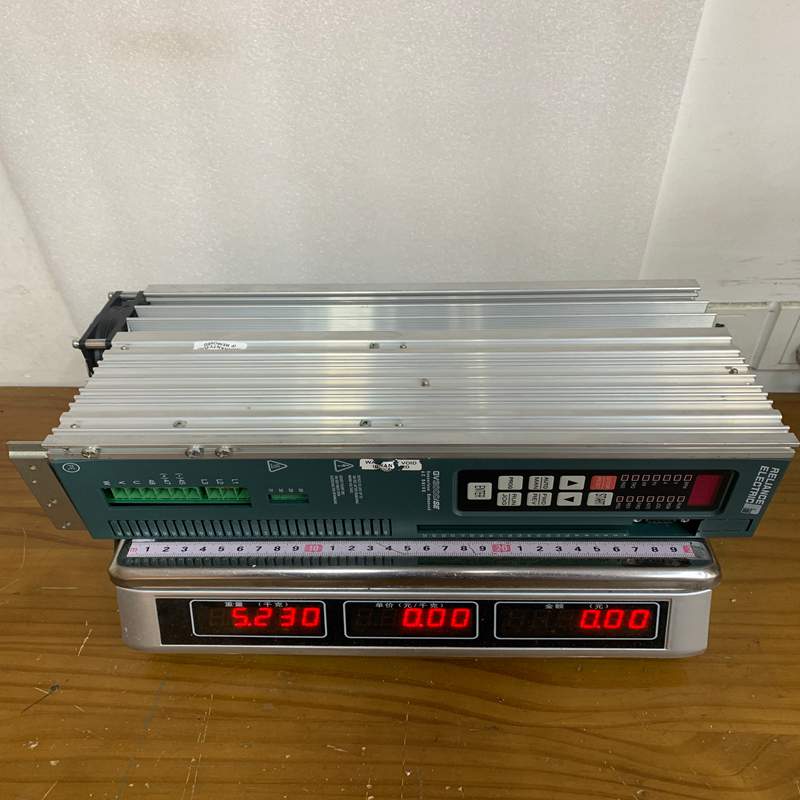

Reliance GV3000E-AC008-AA-DBU-RFI AC Variable Frequency Drive

Description

Reliance GV3000E-AC008-AA-DBU-RFI AC Variable Frequency Drive

Product Overview

The Reliance Electric GV3000E-AC008-AA-DBU-RFI is an industrial adjustable frequency AC drive (Variable Frequency Drive / VFD) manufactured by Reliance Electric (a brand under Rockwell Automation). It belongs to the GV3000E family, designed to control speed, torque, and acceleration of 3-phase AC induction motors.

This specific model features a rated continuous output current of 8 Amps and includes factory-installed options for a Dynamic Braking Unit (DBU) and an internal RFI Filter (Radio Frequency Interference).

Part Number Decoding & Specifications

Catalog Code Structure: GV3000E-AC008-AA-DBU-RFI

• GV3000E: Base GV3000 General Purpose AC Drive Series
• AC: AC Supply Input
• 008: Continuous Output Current Rating (8.0 Amps)
• AA: Standard Cabinet / NEMA 1 (IP20) Enclosure Design with Standard Keypad
• DBU: Factory-installed internal Dynamic Braking Unit (Chopper Transistor)
• RFI: Integrated RFI/EMC Filter for high-frequency noise mitigation

Technical Specifications

Key Advantages

• Flexible Control Capabilities: Supports simple V/Hz speed control for fan/pump applications up to high-performance sensorless vector control for demanding torque requirements.
• Integrated Braking Hardware: Built-in Dynamic Braking Unit (DBU) allows direct connection of external braking resistors for fast motor deceleration and stopping without purchasing separate power hardware.
• Built-in EMC Compliance: The integrated RFI filter minimizes electromagnetic interference and high-frequency harmonics injected into nearby sensitive electronics or power lines.
• Compact NEMA 1 Design: Combines control circuitry, braking electronics, and noise mitigation in a single footprint to save switchboard space.
• Diagnostic Readouts: Real-time LED digital keypad provides immediate current, frequency, voltage, and fault code displays for rapid diagnostic verification.

Important Usage & Installation Precautions

• Upstream Short-Circuit Protection: Install proper semiconductor fuses or molded case circuit breakers (MCCB) on the AC input line according to the user manual to protect against internal component shorts.
• Braking Resistor Sizing: The internal DBU chopper requires an appropriately rated external power resistor. Ensure the resistor value (ohms) does not drop below the drive’s minimum allowed resistance rating to prevent burning out the internal transistor.
• Capacitor Reconditioning (Legacy Equipment): If this drive has been stored unpowered for over 1 year, perform a gradual voltage reconditioning (DC bus reform) on the main bus electrolytic capacitors before applying full load.
• Motor Grounding & Shielding: Use shielded motor power cables and ensure low-impedance chassis grounding to maximize the efficiency of the integrated RFI filter.
• Heat Dissipation: Maintain a minimum 4-inch (100 mm) clear vertical clearance above and below the drive heatsink inside the cabinet for adequate thermal airflow.

Applications

• Pumps & Industrial Fans: Variable torque energy-saving speed control for centrifugal water pumps, exhaust fans, and cooling towers.
• Conveyor Systems: Controlled acceleration, torque control, and smooth deceleration for industrial belt and roller conveyors.
• Mixers & Agitators: Constant-torque motor control in chemical, food processing, and material blending operations.
• Machine Tools & Packaging Machinery: Drives for feed mechanisms, winders, cutters, and packaging lines requiring fast dynamic braking response.
