Description
Pro-face PFXGP4301TADW HMI

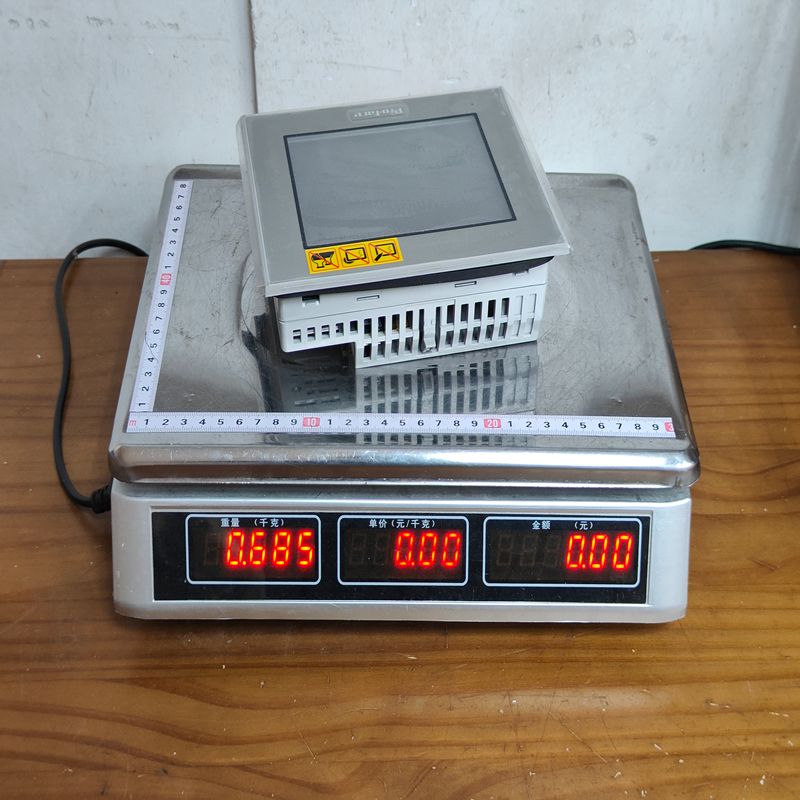

Product Dimensions：
The Pro-face PFXGP4301TADW is a high-performance Human Machine Interface (HMI) from the GP4000 series, known for its reliability and crisp display. It is widely used in industrial automation to provide a bridge between operators and machines.
Below is the detailed product information in English.
1. Product Overview
The PFXGP4301TADW belongs to the GP-4301T lineup. It features a 5.7-inch color TFT LCD screen. The “W” in the suffix typically denotes a “White” bezel color, offering a clean aesthetic for specific environments like medical or food processing.
2. Technical Specifications
| Feature | Specification |
| Display Type | Color TFT LCD |
| Display Size | 5.7 inch |
| Resolution | 320 x 240 pixels (QVGA) |
| Effective Display Area | W115.2 x H86.4 mm |
| Display Colors | 65,536 Colors |
| Backlight | White LED (Service life: 50,000 hours) |
| Touch Panel Type | Resistive Film (Analog) |
| Rated Voltage | 24V DC |
| Internal Memory | Flash EPROM 16 MB (Application) |
| Interfaces | Serial (RS-232C/RS-422/485), Ethernet, USB 2.0 (Type A & Mini-B), SD Card Slot |
3. Key Product Advantages
-
High Connectivity: Supports a vast range of industrial protocols, allowing it to communicate with PLCs, temperature controllers, and inverters from various manufacturers.
-
Energy Efficient: The LED backlight significantly reduces power consumption and extends the hardware’s lifespan.
-
Remote Monitoring: With Pro-face Remote HMI software, users can monitor and control the interface remotely via a smartphone or tablet.
-
Global Standards: Complies with international standards including CE, UL/cUL, and RoHS, making it suitable for global export.
-
Easy Maintenance: Features a modular design and an SD card slot for easy data backup and project transfers without a PC.
4. Usage Precautions
-
Power Supply: Ensure the input voltage is stable at 24V DC. Fluctuations outside the permitted range can damage the internal circuitry.
-
Cleaning: Use a soft, dry cloth. Avoid harsh chemicals or high-pressure water, as they can damage the resistive touch film.
-
Installation Environment: Avoid installing the unit in locations with direct sunlight, high humidity, or excessive metallic dust unless it is housed in a properly rated NEMA/IP enclosure.
-
Touch Input: Do not use sharp objects (like screwdrivers or pens) to operate the touch screen; use your finger or a dedicated plastic stylus.
5. Typical Applications
The PFXGP4301TADW is versatile and used across various sectors:
-
Factory Automation: Controlling assembly lines, packaging machines, and conveyor systems.
-
Food & Beverage: Used in processing plants due to its easy-to-clean surface and clear status visualization.
-
HVAC Systems: Managing large-scale building climate control and energy monitoring.
-
Automotive: Integration into robotic cells and testing stations.
-
Pharmaceuticals: Monitoring clean-room parameters and specialized laboratory equipment.
6. Software Compatibility
This model is programmed using GP-Pro EX software. This environment allows for drag-and-drop screen creation, advanced scripting, and comprehensive simulation before the hardware is deployed.
