Pro-face PFXGP4301TAD HMI

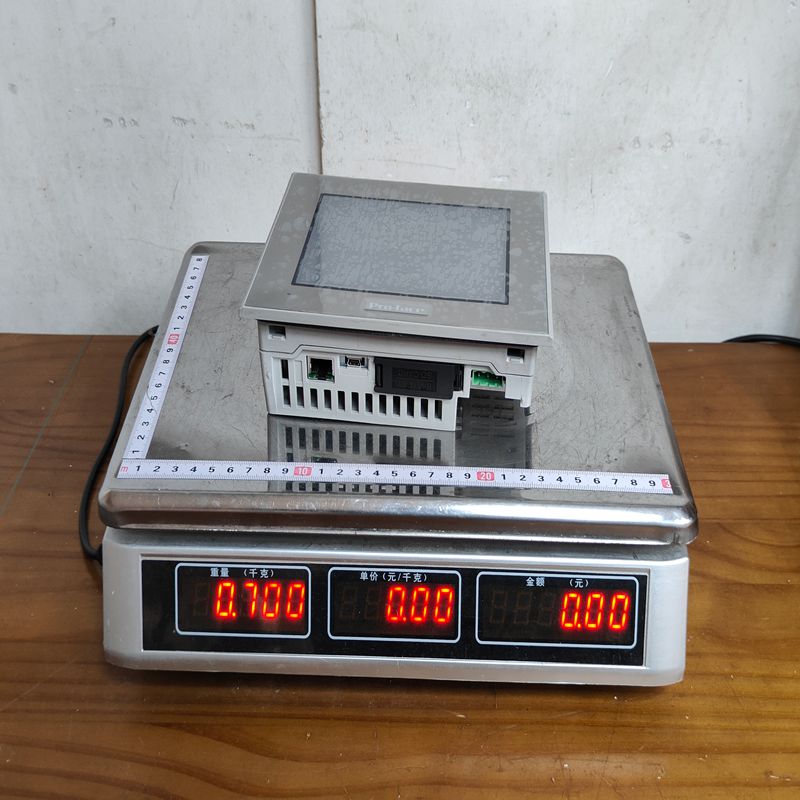

Product Dimensions：
The Pro-face PFXGP4301TAD is a high-performance 5.7-inch Human Machine Interface (HMI) from the GP4000 Series. Known for its reliability and versatility, it is widely used in industrial automation to provide a clear and interactive bridge between operators and machines.
Below is the detailed product information in English:
1. Product Description
The PFXGP4301TAD is a compact yet powerful HMI featuring a 5.7-inch TFT color LCD display. It is designed to replace older 5.7-inch models (like the GP3000 series) with a more energy-efficient and high-resolution interface. It utilizes an analog resistive touch panel for precise control and supports multiple communication protocols simultaneously.
2. Technical Specifications
| Feature | Specification |
| Display Type | TFT Color LCD |
| Display Size | 5.7 inches |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Backlight | White LED (Service life: >50,000 hours) |
| Rated Voltage | 24 VDC |
| Touch Panel | Resistive Film (Analog, no grid for better visibility) |
| Memory | 16 MB FEPROM (Application) / 512 KB SRAM (Backup) |
| Communication Ports | 1x RS-232C (COM1), 1x RS-422/485 (COM2) |
| Ethernet | 1x RJ45 (10BASE-T/100BASE-TX) |
| USB Interfaces | 1x USB 2.0 Type-A (Host), 1x USB 2.0 Mini-B (Client) |
| SD Card Slot | 1x SD/SDHC Card slot (up to 32 GB) |
| Protection Rating | IP65F, NEMA 4X/13 (Front panel only) |
3. Product Advantages
-
High Visibility: The 65,536-color TFT display provides crisp graphics and supports high-definition images for better operator clarity.
-
Connectivity: Supports simultaneous communication with up to four different protocol drivers (PLCs, inverters, etc.) via Serial and Ethernet.
-
Remote Monitoring: With Pro-face software (like GP-Viewer EX), users can monitor and operate the HMI remotely from a PC or mobile device.
-
Rapid Data Transfer: Transferring project files is up to 10 times faster than previous generations thanks to the high-speed USB and Ethernet ports.
-
Energy Efficient: The use of LED backlighting significantly reduces power consumption and heat generation.
4. Safety & Precautions
-
Power Supply: Always ensure a stable 24 VDC power source. Voltage fluctuations beyond the $\pm 10\%$ range can damage the unit.
-
Installation: When mounting in a panel, ensure the gasket is seated correctly to maintain the IP65F waterproof rating.
-
Environment: Avoid installation in environments with corrosive gases, extreme vibration, or direct sunlight, which can degrade the LCD and touch sensitivity.
-
Cleaning: Use a soft cloth with a mild detergent. Avoid organic solvents like thinners or gasoline, which can melt the plastic casing.
5. Typical Applications
-
Factory Automation (FA): Controlling and monitoring production lines, packaging machines, and conveyor systems.
-
Process Control: Water treatment facilities, HVAC systems, and chemical processing where remote monitoring is required.
-
Machine Tooling: Integrated into CNC machines or plastic injection molding machines for parameter adjustment.
-
Automotive Industry: Used in assembly stations for torque monitoring and error-proofing (Poka-Yoke).
