PHOENIX SACB-8/16-10,0PUR .SCOP PUR Cable

The PHOENIX CONTACT SACB-8/16-10,0PUR SCO P (Order No. 1452738) is a sensor/actuator distributor box designed for efficient field cabling in industrial automation. It allows multiple sensor signals to be bundled into a single master cable, reducing wiring complexity and installation time.

1. Product Detailed Description

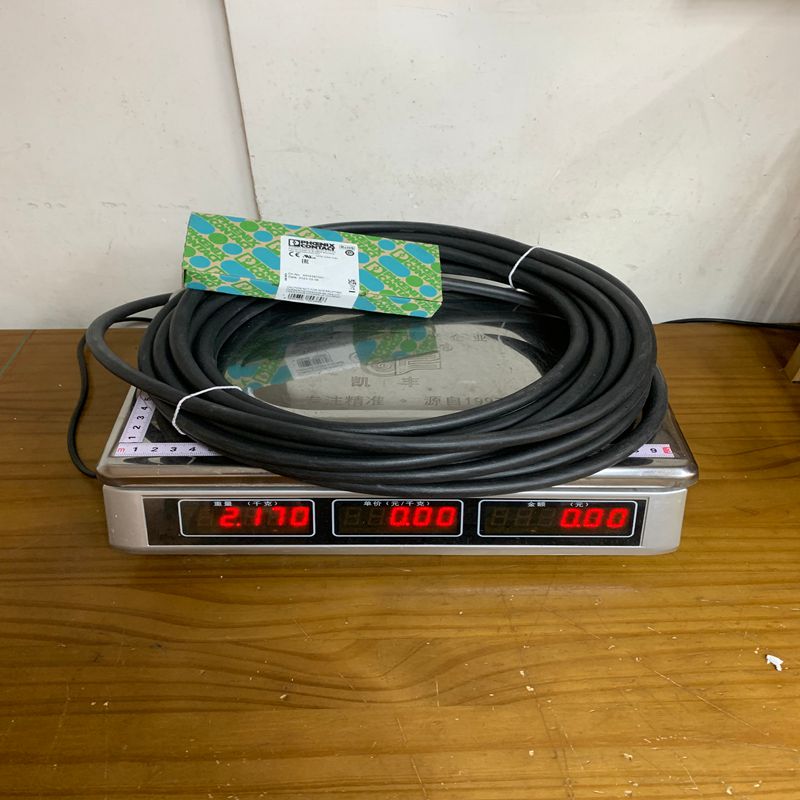

This distributor box features 8 slots with M12 SPEEDCON fast-locking technology. Each slot supports “Double Occupancy” (meaning two signals per slot), allowing for a total of 16 signals across 8 ports. It comes with a 10-meter pre-assembled PUR (Polyurethane) master cable, which is highly resistant to oils and mechanical wear.

2. Technical Parameters

3. Product Advantages

• SPEEDCON Technology: Reduces installation time by up to 90% compared to traditional screw connections; a half-turn creates a secure, gas-tight seal.

• High Durability: The PUR cable is halogen-free and resistant to oils, chemicals, and abrasion, making it ideal for drag chain applications and harsh environments.

• Integrated Diagnostics: Features a green LED for supply voltage and yellow LEDs for I/O status, allowing for quick troubleshooting.

• Space Saving: Bundling 16 signals into one master cable significantly reduces the number of cables running back to the control cabinet.

• Robust Housing: Made of PBT (Polybutylene terephthalate), providing excellent mechanical strength and flame resistance (UL 94 V0).

4. Precautions & Installation Notes

• Bending Radius: Always observe the minimum bending radius ($7.5 \times D$ for fixed; $10 \times D$ for flexible) to avoid damaging the internal conductors.

• Unused Slots: To maintain the IP67 rating, all unused slots must be sealed with M12 plastic or metal screw plugs.

• Mechanical Load: Use cable ties to relieve mechanical stress on the cable entry point to prevent premature failure.

• Tightening Torque: Ensure M12 connectors are tightened to the recommended torque (0.4 Nm) for optimal sealing.

5. Product Applications

This product is widely used in decentralized automation architectures, including:

• Factory Automation: Connecting proximity sensors, limit switches, and small actuators on assembly lines.

• Machine Tool Building: Ideal for environments with high exposure to cutting oils and coolants.

• Packaging Industry: Distributed I/O collection on large conveyor systems.

• Robotics: Used in robot arms where flexible cabling and high-density signaling are required.
