PERKINELMER N077-9524 Quartz Rectangular Tube

Description

PERKINELMER N077-9524 Quartz Rectangular Tube

Product Dimensions：

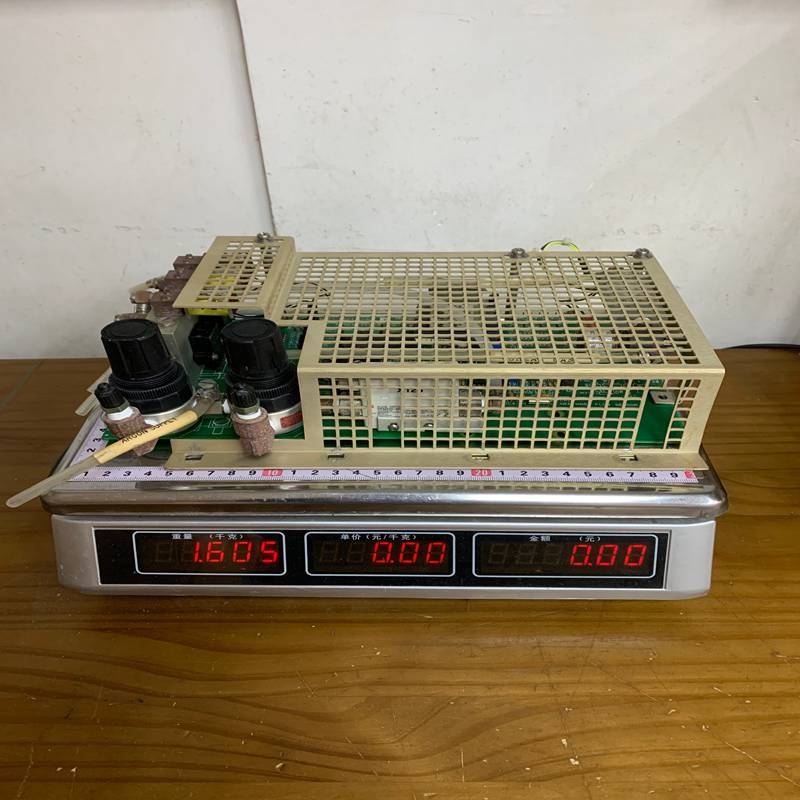

The PerkinElmer N077-9524 is a specialized electronic control component, specifically the RF Torch Pneumatics Control PCB (Printed Circuit Board). It is a critical internal part used in high-performance analytical instruments, primarily the Avio and Optima series of Inductively Coupled Plasma (ICP) spectrometers.

1. Product Description

The N077-9524 serves as the “brain” for the pneumatic system that manages gas flow to the RF (Radio Frequency) torch. In ICP-OES and ICP-MS systems, precise gas control (Argon) is essential to maintain a stable plasma for elemental analysis. This board typically integrates with flow sensors (such as the SMC PFM series) to monitor and regulate gas pressure and flow rates in real-time.

2. Product Parameters

• Part Number (MPN): N077-9524 (Versions include Issue C, E, F, G, H, I).

• Manufacturer: PerkinElmer.

• Device Type: RF Torch Pneumatics Control PCB / Gas Control Board.

• Compatibility: * Avio Series: Avio 200, Avio 500.

  • Optima Series: Optima 8300, 4×00, 5×00, 7×00 DV/V.

  • NexION Series: Some NexION ICP-MS models.

• Integrated Components: Often paired with an SMC Flow Sensor (e.g., PFM510-N01-1) and solenoid valves for gas regulation.

• Weight: Approximately 4 lbs (shipping weight including mounting bracket).

3. Product Advantages

• High Precision: Provides micro-controlled regulation of plasma, auxiliary, and nebulizer gas flows, ensuring analytical reproducibility.

• Integrated Monitoring: Works with digital flow sensors to provide instant feedback to the instrument software, preventing plasma “pop-outs” or torch damage.

• Modular Design: Features plug-and-play connectors for easy field replacement by service engineers, minimizing instrument downtime.

• Durability: Built with industrial-grade components designed to withstand the heat and electromagnetic interference (EMI) typical in RF generator environments.

4. Product Applications

The N077-9524 is used exclusively within the following laboratory environments:

• Environmental Testing: Analyzing trace metals in water and soil.

• Petrochemicals: Monitoring wear metals in oils and lubricants.

• Food Safety: Detecting heavy metal contaminants in food products.

• Pharmaceuticals: Ensuring elemental purity in drug manufacturing according to USP standards.

5. Important Considerations & Precautions

• Static Sensitivity: As a PCB, this part is highly sensitive to Electrostatic Discharge (ESD). Always use an anti-static wrist strap during installation.

• Firmware/Issue Matching: Different “Issues” (e.g., Issue F vs. Issue I) may have slight hardware variations. Ensure the version matches your instrument’s original specifications.

• Professional Installation: Replacement should ideally be performed by a PerkinElmer certified technician, as the pneumatic system requires recalibration after a board swap to ensure gas flow accuracy.

• Calibration: After installation, verify the flow sensor readings against the instrument’s diagnostic software to ensure the plasma ignites correctly and safely.
