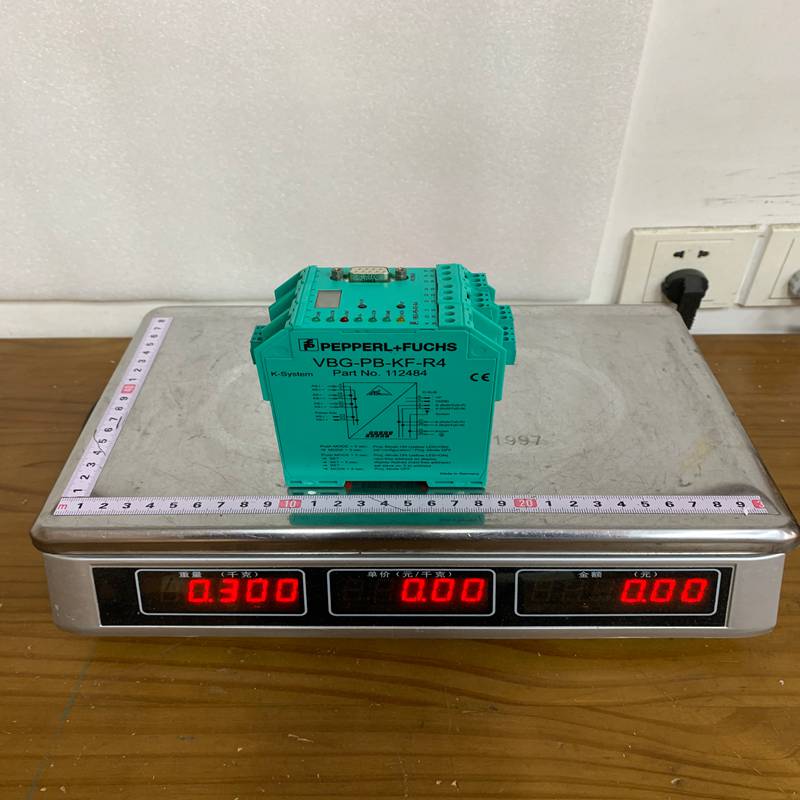

Pepper+Fuchs VBG-PB-KF-R4 AS-Interface Gateway

Description

Pepper+Fuchs VBG-PB-KF-R4 AS-Interface Gateway

Product Dimensions：

The Pepperl+Fuchs VBG-PB-KF-R4 is an industrial network gateway designed to seamlessly bridge AS-Interface (Actuator-Sensor Interface) networks with a PROFIBUS DP network. It acts as a complete AS-Interface master while functioning as a modular slave on the PROFIBUS side.

Product Detailed Description

The VBG-PB-KF-R4 is housed in a compact KF-style cabinet housing, making it highly suited for installation inside control cabinets on standard DIN rails. It complies with AS-Interface Specification 2.11, allowing it to manage field-level sensors and actuators and map their data directly into a higher-level PLC or DCS system via PROFIBUS.

The front panel is equipped with a 2-digit LC display and 7 system LEDs, providing instant local diagnostic and configuration status without requiring a PC connection.

Technical Parameters

Product Advantages

• Modular Data Mapping: It functions as a modular PROFIBUS slave. Operators can use standard PLC configuration tools (like STEP 7 or TIA Portal) and GSD files to customize exactly how much I/O data is transferred, optimizing network bandwidth.
• Tool-Free Terminal Maintenance: Features coded, removable terminal blocks that prevent incorrect wiring connections and make module replacements quick and straightforward.
• Power Rail Compatibility: Supports Pepperl+Fuchs Universal Power Rail (UPR-05) integration, allowing the module to draw power directly from the DIN rail and reducing cabinet wiring clutter.
• Advanced Diagnostics: Acyclic DP-V1 communication allows the master PLC to pull detailed diagnostic structures, while the onboard 2-digit display helps field technicians quickly pinpoint faulty slave addresses without opening software.

Important Considerations & Precautions

• GSD File Requirement: Before commissioning the device on a PROFIBUS network, the correct GSD file (*.gsd) must be imported into the master PLC programming software to ensure proper hardware recognition.
• Bus Termination: Ensure the RS-485 network has a proper bus termination resistor switched ON at the final physical device of the segment to prevent signal reflections.
• Power Constraints: Ensure that the AS-Interface power supply is decoupled properly and meets network specifications; variations in voltage can trigger the U AS-i error LED.
• Environmental Sealing: With an IP40 housing rating, this device is strictly intended for indoor use inside an industrial enclosure. It is not protected against water ingress or heavy dust accumulation.

Product Applications

• Conveyor & Logistics Systems: Collecting tracking data from hundreds of photoelectric sensors along a sorting line and routing them to a central PROFIBUS PLC.
• Automotive Assembly: Interfacing field-level pneumatic valves, pushbuttons, and proximity switches back to the main cell controller.
• Packaging Machinery: Coordinating high-density discrete inputs/outputs within a machine footprint while keeping cabinet space to a minimum.
• Cabinet Integration: Serving as a centralized master node in decentralized control desks where space-saving “KF” style profiles are required.
