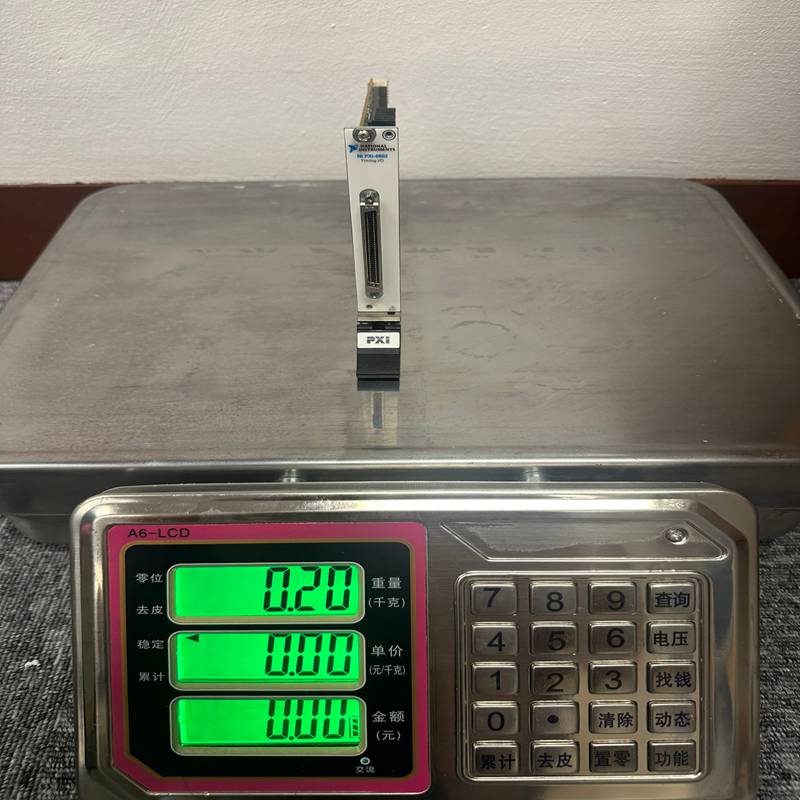

NI PXI-6602 Timer Module

Description

NI PXI-6602 Timer Module

The NI PXI-6602 is a high-performance timing and digital I/O module designed by National Instruments for the PXI platform. It is primarily used for precision hardware-timed applications, leveraging its onboard counters to handle complex pulse-width modulation (PWM), encoder interfacing, and frequency measurements.

1. Key Product Specifications

The PXI-6602 is built around the NI-TIO (Timing and I/O) ASIC, providing advanced timing capabilities that offload processing from the host CPU.

2. Product Advantages

• High Precision Timing: With 8 independent 32-bit counters, the module can perform high-speed operations without losing counts or requiring frequent software polling.

• DMA (Direct Memory Access): Supports high-speed data streaming between the module and the host PC, ensuring continuous data acquisition even at high frequencies.

• Versatility: It functions as a counter/timer, a digital frequency generator, and a digital I/O device simultaneously.

• PXI Integration: Being a PXI module, it benefits from the PXI backplane triggers, allowing it to synchronize perfectly with other PXI modules (like DAQ cards or Scopes) via the PXI Trigger Bus or Star Trigger.

3. Core Applications

The NI PXI-6602 is widely used in industrial automation, research, and validation testing:

• Position Measurement: Interfacing with quadrature encoders (X1, X2, X4 encoding) to track linear or angular displacement.

• Pulse Generation: Creating precise PWM signals for motor control or triggering external camera systems.

• Frequency/Period Measurement: Analyzing signal characteristics for flow meters, tachometers, or vibrations.

• Time-to-Digital Conversion: Measuring the time interval between two electrical events with high resolution.

• Event Counting: High-speed counting of pulses or digital transitions in manufacturing lines.

4. Important Considerations & Precautions

• Voltage Levels: The PXI-6602 is designed for 5 V TTL/CMOS signals. Applying voltages significantly higher than 5V can damage the input circuitry.

• Grounding: Ensure a common ground between the PXI chassis and the external signal source to prevent noise and signal integrity issues.

• Cabling: Due to the 80 MHz maximum frequency, use shielded cables (like the SH68-68-D1) to minimize electromagnetic interference (EMI).

• Driver Software: Requires NI-DAQmx driver software. Ensure your version of DAQmx supports the specific OS and LabVIEW version you are using.

5. Common Accessories

To use the PXI-6602 effectively, you typically need:

• Connector Block: NI CB-68LP or SCB-68 (shielded) for easy signal wiring.

• Cable: SH68-68-D1 shielded cable.
