NI PCLE-1427 Image Acquisition Card

Description

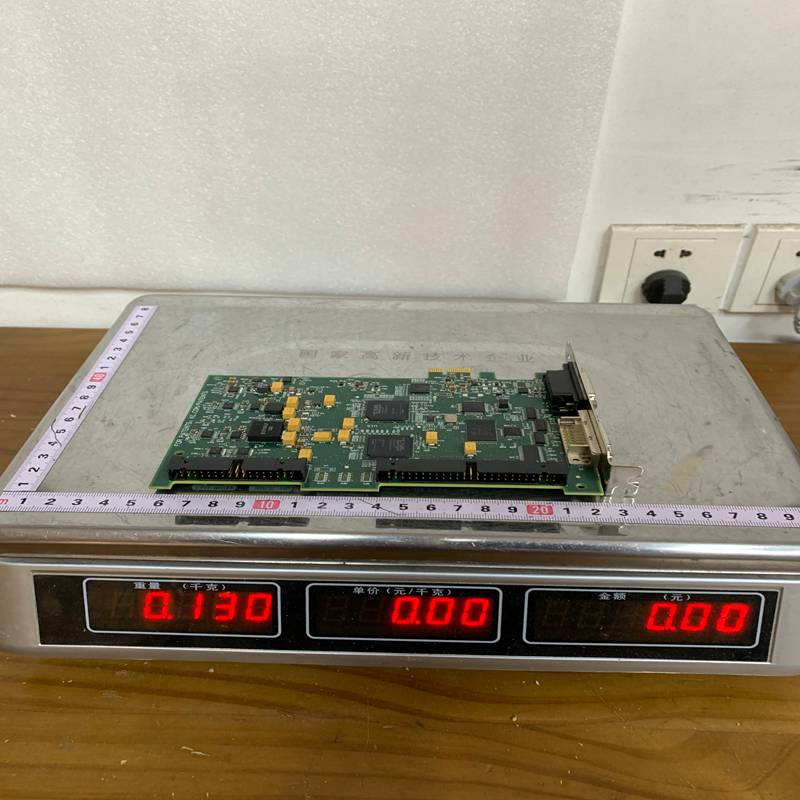

NI PCLE-1427 Image Acquisition Card

The NI PCIe-1427 (often typed as PCIe-1427) is a high-performance Camera Link Frame Grabber designed by National Instruments. it is part of the NI vision acquisition family, specifically engineered for machine vision applications that require high-speed, high-resolution image capture with minimal latency.

Product Detailed Description

The NI PCIe-1427 is a Base Configuration Camera Link image acquisition board. It interfaces via the PCI Express (PCIe) bus, providing the necessary bandwidth to handle data-intensive imaging from digital cameras. Unlike standard USB or Ethernet cameras, Camera Link provides a dedicated, high-speed point-to-point connection, making this card ideal for real-time inspection where timing and synchronization are critical.

Technical Parameters

Product Advantages

• Low Latency & High Speed: By utilizing the PCIe bus and the Camera Link protocol, the 1427 eliminates the “jitter” and overhead typically associated with network-based cameras (GigE).
• Deterministic Triggering: Features onboard digital I/O lines that allow for precise synchronization between the camera and external hardware, such as strobe lights or proximity sensors.
• Ease of Use: Fully compatible with NI Measurement & Automation Explorer (MAX), which allows for quick camera configuration and testing without writing code.
• Cost-Effective Base Link: While many high-end cards focus on “Full” or “80-bit” configurations, the PCIe-1427 provides a specialized, affordable solution for “Base” configuration cameras.
• Powerful Driver Support: Works seamlessly with the NI-IMAQ driver, which provides a rich set of functions for image scaling, region-of-interest (ROI) selection, and memory management.

Important Considerations (Precautions)

• Configuration Limit: This card only supports the Base Configuration. It cannot be used with “Medium” or “Full” Camera Link cameras (which require two cables).
• Power Supply: Ensure the PC’s power supply can handle the additional draw. Although PCIe x1 cards consume little power, the camera itself may require a separate power source if it does not support PoCL (Power over Camera Link).
• Cable Length: Camera Link cables have strict length limitations (typically 10 meters or less). Exceeding this can lead to data corruption or signal loss.
• Heat Dissipation: Ensure the computer chassis has adequate airflow, as high-speed frame grabbers can generate significant heat during continuous acquisition.

Product Applications

The NI PCIe-1427 is a staple in high-end industrial and scientific environments:

• Automated Inspection: High-speed bottle or food inspection on production lines where defects must be identified in milliseconds.
• Semiconductor Manufacturing: Precise alignment and wafer inspection using high-resolution digital cameras.
• Medical Imaging: Integration into diagnostic equipment for high-fidelity image capture and analysis.
• Scientific Research: High-speed motion analysis or microscopy where deterministic data transfer is required for accurate results.
• Web Inspection: Monitoring continuous rolls of material (paper, plastic, metal) for surface flaws or inconsistencies.
