MOXA EDS-P206A-4PoE Ethernet PoE Switch

Description

MOXA EDS-P206A-4PoE Ethernet PoE Switch

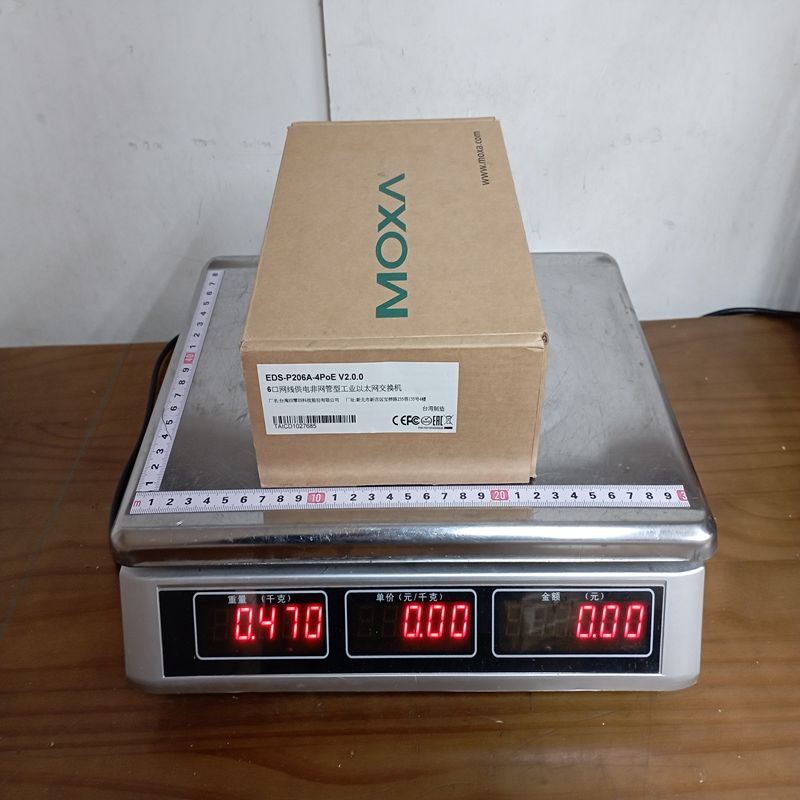

Product Dimensions：

The MOXA EDS-P206A-4PoE is an industrial-grade, unmanaged Ethernet switch designed for harsh environments that require Power over Ethernet (PoE) capabilities. Below is a detailed breakdown of the product.

## Product Overview

The EDS-P206A-4PoE series features 6 Ethernet ports: 4 ports support IEEE 802.3af/at PoE standards, and 2 ports are standard 10/100BaseT(X) or 100BaseFX ports. It is a “plug-and-play” solution designed to provide both data and power to PDs (Powered Devices) like IP cameras, wireless access points, and IP phones.

## Technical Specifications

## Key Advantages

• High Power Output: Supports PoE+ (30W per port), allowing it to power high-consumption devices like PTZ cameras or outdoor Wi-Fi 6 access points.

• Smart Power Management: Features intelligent power detection to prevent damage to non-PoE devices.

• Industrial Durability: High EMC protection and a fanless design ensure a long MTBF (Mean Time Between Failures) in vibrating or dusty environments.

• Flexible Voltage Support: It includes a built-in voltage booster, meaning it can provide 48V PoE output even if the input power source is only 12 or 24 VDC.

## Important Considerations (Usage Notes)

1. Power Input: Ensure your power supply can handle the total PoE budget (up to 120W) plus the switch’s own consumption to avoid system reboots.

2. Fiber Options: If choosing the fiber models (S-SC or S-ST), verify the distance requirements (Multi-mode vs. Single-mode) as these ports are fixed and not SFP-based.

3. Heat Dissipation: Although fanless, ensure there is adequate space around the DIN-rail mount for natural convection, especially when operating at full PoE load.

4. Grounding: Always connect the ground screw to a reliable earth ground to protect the internal circuitry from electrical surges.

## Typical Applications

• Smart City & Surveillance: Powering IP cameras in traffic monitoring systems where wiring is difficult.

• Factory Automation: Connecting and powering PoE-enabled sensors or HMI panels on a production line.

• Oil & Gas: Suitable for hazardous areas (Class I Div 2) where robust communication is required.

• Intelligent Transportation (ITS): Used in roadside cabinets to link traffic controllers and wireless bridges.
