MITSUBISHI A0J2HCPU CPU module

Description

MITSUBISHI A0J2HCPU CPU module

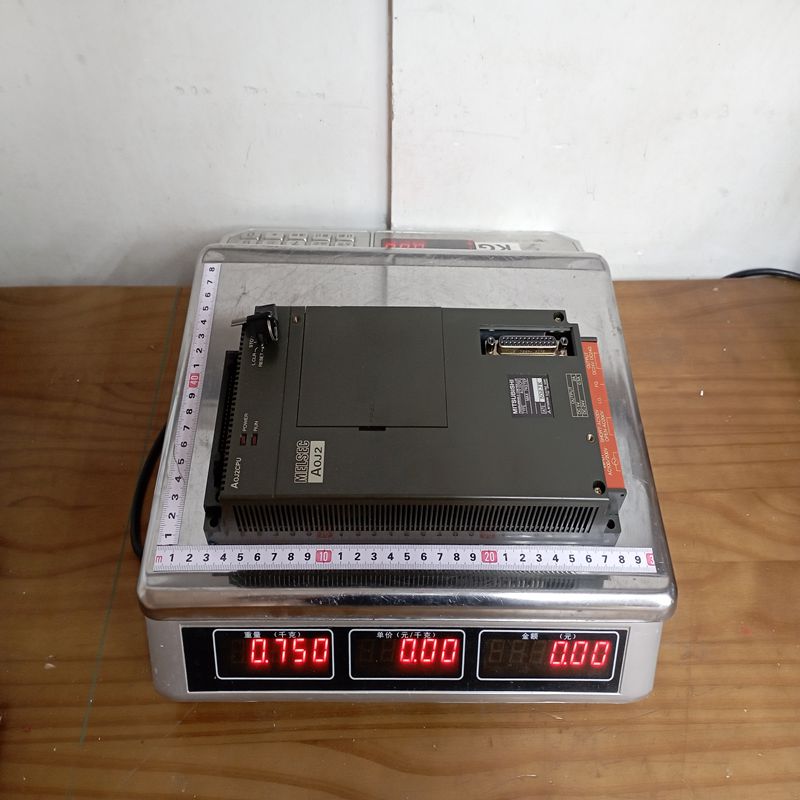

Product Dimensions：

The A0J2HCPU is a high-performance, compact Central Processing Unit (CPU) module from Mitsubishi Electric’s MELSEC-A series. It was designed as an all-in-one controller that integrates the CPU, power supply, and I/O points into a single unit, making it an efficient solution for small-to-medium-scale automation tasks.

### Technical Specifications

The A0J2HCPU is characterized by its increased processing speed and memory capacity compared to the standard A0J2 model.

### Product Advantages

• Space-Saving Design: Its “all-in-one” construction reduces the physical footprint in the control panel.

• High-Speed Processing: The “H” in the model name stands for “High-speed,” offering significantly faster execution of logic compared to the base A0J2.

• Flexibility: While it is a compact unit, it supports a variety of extension modules for digital I/O, analog signals, and positioning.

• Reliability: Built with industrial-grade durability, it is known for a long service life in harsh environments.

• Ease of Maintenance: Features clear LED indicators for CPU status (Run, Error, Battery) and I/O status.

### Important Considerations (Precautions)

1. Lifecycle Status: The MELSEC-A series (including the A0J2H) is discontinued. Finding new units is difficult, and they are primarily available as refurbished or surplus stock.

2. Battery Maintenance: The internal RAM and clock are backed up by a lithium battery. If the “BATT” LED lights up, replace the battery immediately to avoid losing the program.

3. Migration: Since this is legacy hardware, it is highly recommended to plan a migration to the modern MELSEC iQ-R or iQ-F (FX5U) series for better support and parts availability.

4. Heat Dissipation: Ensure proper ventilation within the cabinet, as the integrated power supply generates heat during operation.

### Common Applications

• Material Handling: Conveyor systems, simple palletizers, and sorting machines.

• Packaging Machinery: Small-scale wrapping, labeling, and filling machines.

• Utility Control: Water pump stations, fan controls, and lighting automation in commercial buildings.

• Dedicated Tooling: Small CNC auxiliary controllers or specialized assembly jigs.
