LS XP70-TTA/AC-G4 Touchscreen

Description

LS XP70-TTA/AC-G4 Touchscreen

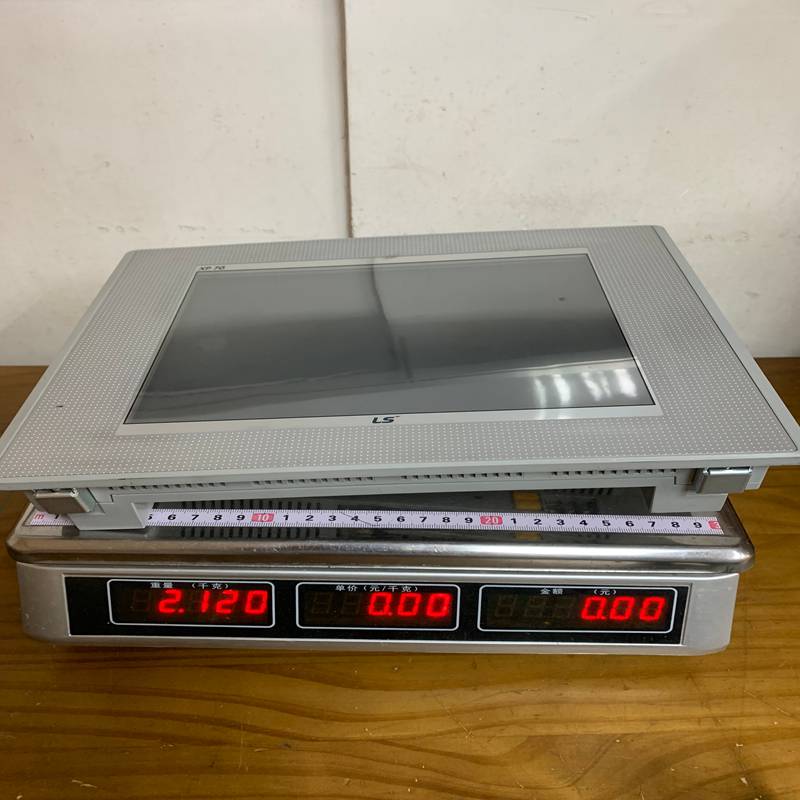

Product Dimensions：

The LS Electric XP70-TTA/AC-G4 (often listed under the XGT Panel or XP Series) is a high-performance Human Machine Interface (HMI) designed for industrial automation. It features a large color display and is powered by an AC supply, making it ideal for integration into standard control cabinets.

Product Detailed Description

The XP70-TTA/AC-G4 is a high-resolution touch panel that serves as the central interface between operators and automated machinery. Built on the Windows CE platform, it provides a familiar environment for running complex HMI projects, including data logging, alarm management, and multi-protocol communication. The “-G4” designation typically refers to a specific hardware generation or regional certification (often associated with enhanced memory or display durability).

Technical Parameters

Product Advantages

• Crisp Visuals: The 10.4-inch TFT display provides high luminance (up to 430 cd/m^2) and wide viewing angles, ensuring the screen is legible even in brightly lit factory floors.
• Broad Connectivity: Supports simultaneous communication with multiple devices (PLCs, Inverters, Barcode Scanners) via its diverse serial and Ethernet ports.
• Rugged Reliability: Designed to withstand industrial environments, featuring high vibration resistance (up to 9.8 m/s^2) and a wide operating temperature range.
• Rich Software Features: Utilizing XP-Builder software, it supports advanced functions like recipe management, script execution (for custom logic), and multi-language support.
• Maintenance Friendly: The front-facing USB port allows for easy project uploads, downloads, and firmware updates without opening the control cabinet.

Important Considerations (Precautions)

• Power Wiring: Since this is an AC model, ensure it is never connected to 24V DC power, which would fail to start the unit. Use 1.5 mm^2 to 2.5 mm^2 wiring for stable power delivery.
• Environmental Sealing: To maintain the IP65 rating, ensure the mounting gasket is correctly seated against a flat, clean panel surface during installation.
• Screen Protection: Avoid using sharp objects (screwdrivers, pens) on the touch screen. It is a 4-wire or 8-wire analog resistive system; use a finger or a dedicated stylus only.
• Battery: The internal backup battery (for the RTC and data retention) lasts approximately 3 years at 25°C. Check the battery status periodically to prevent data loss.

Product Applications

• Manufacturing Lines: Real-time monitoring of assembly robots, conveyor speeds, and production counts.
• Water Treatment: Visualizing pump statuses, flow rates, and tank levels in municipal water systems.
• HVAC Systems: Controlling large-scale climate control units in commercial buildings or cleanrooms.
• Packaging Machinery: Managing complex recipes and timing sequences for high-speed filling and wrapping machines.
