Honeywell UDI1700 Digital Display Instrument

Description

Honeywell UDI1700 Digital Display Instrument

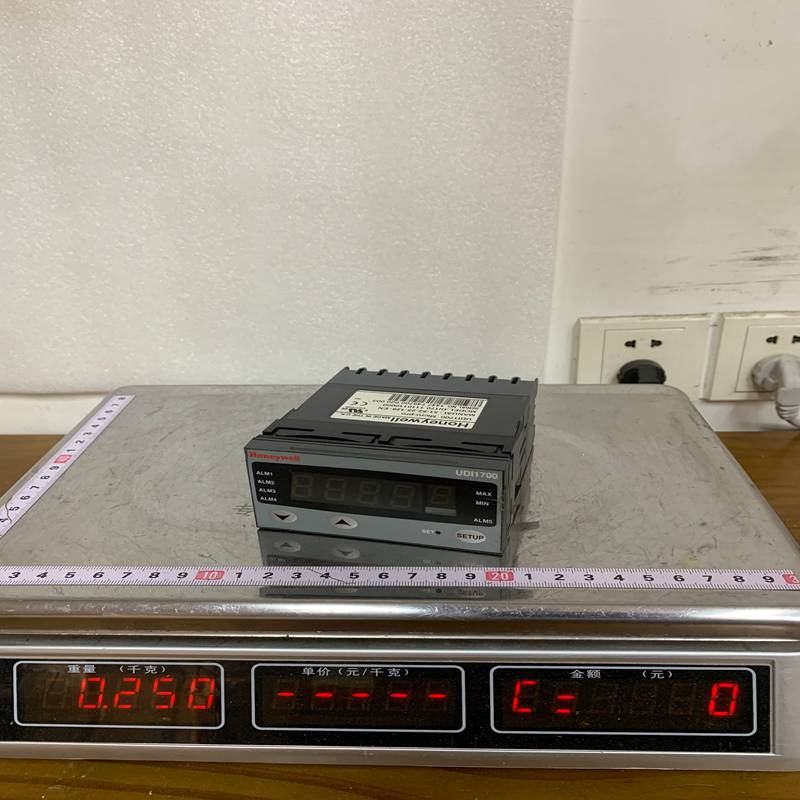

Product Dimensions：

The Honeywell UDI1700 is a versatile, microprocessor-based Universal Digital Indicator part of the 1/8 DIN family. It is designed to provide highly accurate monitoring of various industrial processes, including temperature, pressure, and flow.

Product Detailed Description

The UDI1700 features a sharp 4-digit display, typically available in a dual-color (Red/Green) format that can change color based on alarm status. It is a “Universal” indicator because its input is fully software-configurable, allowing it to interface with almost any industrial sensor without hardware changes.

Technical Parameters

Product Advantages

• Universal Input: Eliminates the need to stock multiple different indicators; a single unit can be configured for temperature, pressure, or level.
• Visual Alarm Logic: The display can be programmed to change from Green to Red when an alarm is triggered, providing an immediate visual cue to operators.
• High Precision: With a 0.1\% accuracy rating, it provides reliable data for critical quality control processes.
• Modular Design: Option slots allow for easy addition of up to 3 relay outputs, linear retransmission, or RS-485 communications in the field.
• Configuration Ease: Features a simple, menu-driven setup that can be performed via the front keypad or via PC software.

Important Considerations (Precautions)

• High/Low Limit Protection: It is a monitoring device, not a safety controller. Honeywell strongly recommends using a separate, dedicated high/low limit device to shut down equipment in dangerous conditions.
• Wiring Safety: Always disconnect power before removing the instrument from its housing. Use copper conductors only (except for thermocouple inputs).
• Panel Gasket: Do not remove the front panel gasket; it is essential for maintaining the IP65/NEMA 3 seal against dust and moisture.
• ESD Warning: The internal boards are sensitive to static electricity. Use a grounded wrist strap if removing the chassis for configuration or module installation.

Product Applications

• Plastic & Packaging: Monitoring heater band temperatures and pressure on extrusion lines.
• Food & Beverage: Displaying temperatures for pasteurization or storage tanks.
• Environmental Chambers: Real-time tracking of humidity and temperature levels.
• Furnaces & Ovens: Reliable process variable (PV) indication for high-temperature thermal processing.
• General Industrial: Acting as a high-precision remote display for 4–20 mA transmitters in water treatment or chemical dosing.
