Honeywell TC-RPCXX1 Redundant Rack Power Supply Module

Description

Honeywell TC-RPCXX1 Redundant Rack Power Supply Module

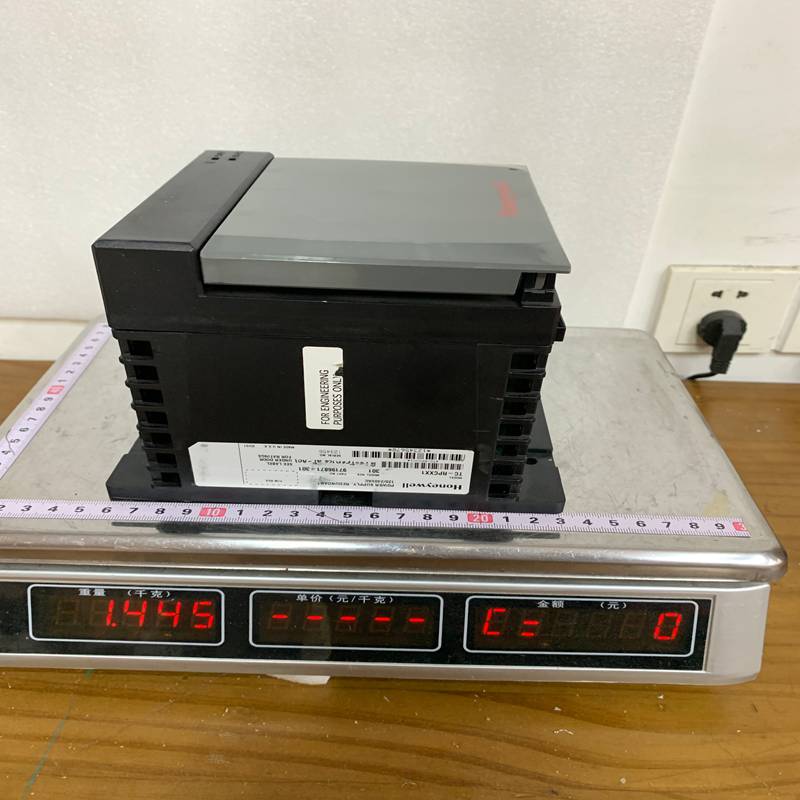

Product Dimensions：

The Honeywell TC-RPCXX1 is a specialized high-performance communication module designed for the Experion PKS (Process Knowledge System) and the C300 Controller environment. It serves as a Redundant Processor Communication link, facilitating high-speed data synchronization between primary and secondary controllers.

Product Detailed Description

The TC-RPCXX1 (often referred to as the Redundancy Cable/Link Module) is specifically engineered for the C300 and Series C I/O families. In a redundant architecture, two C300 controllers operate as a pair (Primary and Backup). The TC-RPCXX1 provides the dedicated, deterministic path required to mirror the runtime database from the Primary to the Backup in real-time, ensuring that if the Primary fails, the Backup can take over with zero disruption to the process.

Technical Parameters

Product Advantages

• Seamless Failover: Enables “bumpless” transfer of control. The backup controller is always “hot” and ready to take over within milliseconds.
• Dedicated Bandwidth: Because it uses a private link, redundancy synchronization does not compete with FTE (Fault Tolerant Ethernet) traffic or I/O communication.
• Deterministic Performance: Guaranteed timing for data packets ensures that the backup controller’s memory is a perfect bit-for-bit match of the primary.
• Easy Diagnostics: Integrated into the Experion System Management Console (SMC), providing clear status updates on the health of the redundancy link.

Important Considerations (Precautions)

• Firmware Matching: The primary and backup controllers, as well as their communication interfaces, must be running identical firmware versions for the redundancy link to initialize.
• Cable Integrity: The redundancy link is the most critical cable in the system. Avoid tight bends or routing near high-voltage cables that could cause electromagnetic interference.
• Configuration: Redundancy must be explicitly enabled in the Honeywell Control Builder software. If the TC-RPCXX1 is disconnected, the system will trigger a “Redundancy Lost” alarm, though the primary will continue to control the process.
• IOTA Grounding: Ensure the Series C IOTA (the baseplate) is properly grounded to prevent static discharge from damaging the communication ports.

Product Applications

The TC-RPCXX1 is used in mission-critical industries where a controller failure could result in safety hazards or massive financial loss:

• Refining & Petrochemical: Managing continuous distillation columns or reactors where a shutdown is extremely costly.
• Power Generation: Controlling turbine sequences and boiler management systems.
• Pharmaceuticals: Ensuring batch processes continue uninterrupted to prevent loss of expensive raw materials.
• Offshore Platforms: Providing reliable control in remote environments where manual intervention is difficult.
