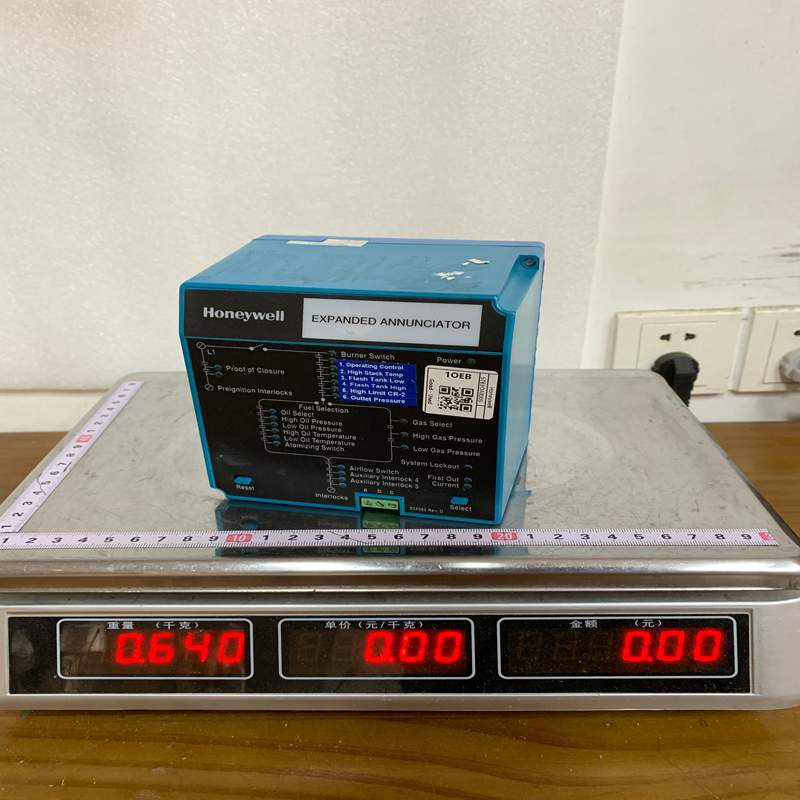

Honeywell S7830A1005 Expanded Annunciator for Burner Control System

Description

Honeywell S7830A1005 Expanded Annunciator for Burner Control System

Product Dimensions：

The Honeywell S7830A1005 is an expanded Expanded Annunciator module, part of the 7800 SERIES smart burner control system. It is designed to provide detailed, first-out fault identification for commercial and industrial burner installations.

Product Detailed Description

The S7830A1005 interfaces directly with a 7800 SERIES Relay Module (such as the RM7800 or RM7840) via a 3-wire local communications bus. It monitors up to 21 electronic interlocks or safety switches (such as low water cutoffs, high gas pressure switches, and exhaust fan interlocks).

When a burner safety shutdown occurs, the S7830A1005 captures the exact interlock that opened first, preventing the troubleshooting confusion caused by subsequent “cascade” failures. This information is then displayed on a Keyboard Display Module (KDM) or transmitted to a central SCADA system.

Technical Parameters

Product Advantages

• “First-Out” Fault Elimination: Saves hours of troubleshooting time by instantly isolating the exact safety switch that caused the system trip.
• Pre-ignition Interlock Guard: Monitors interlocks during both the pre-ignition period and the firing cycle, ensuring continuous system integrity.
• Expanded Hold and Alarm Messages: Generates specific, user-programmable text messages on the 7800 SERIES display panel rather than generic fault codes.
• Reduced Field Wiring: Consolidates 21 separate 120V monitoring points into a single module, sending data to the main controller over a simple 3-wire communication network.

Important Considerations & Precautions

• Safety Isolation: The S7830A1005 is a diagnostic tool only. It does not replace the mandatory hard-wired safety limits required to cut power directly to the fuel valves.
• Phasing and Power Line Noise: Ensure that the power supply to the S7830A1005 is on the same phase as the primary 7800 SERIES Relay Module. Out-of-phase wiring can lead to module communication damage or tracking errors.
• High-Voltage Hazards: Because the module processes 120V AC live inputs on its terminal blocks, always disconnect the master system power before removing or inserting the unit into its wiring subbase.
• Subbase Compatibility: This module requires a dedicated Q7800A or compatible wiring subbase.

Product Applications

The S7830A1005 is widely used in complex commercial and industrial heating systems:

• Industrial Boilers: Monitoring complex safety loops on large firetube or watertube steam boilers.
• Commercial Furnaces: First-out diagnostics for multi-stage air heating applications.
• Process Ovens & Kilns: Protecting automated baking, drying, or metal-treatment ovens where multiple ventilation and temperature limits must be satisfied.
• Incinerators: Ensuring safety line validation before and during multi-stage waste combustion.
