Honeywell S6040A1003 Flame Detector

Description

Honeywell S6040A1003 Flame Detector

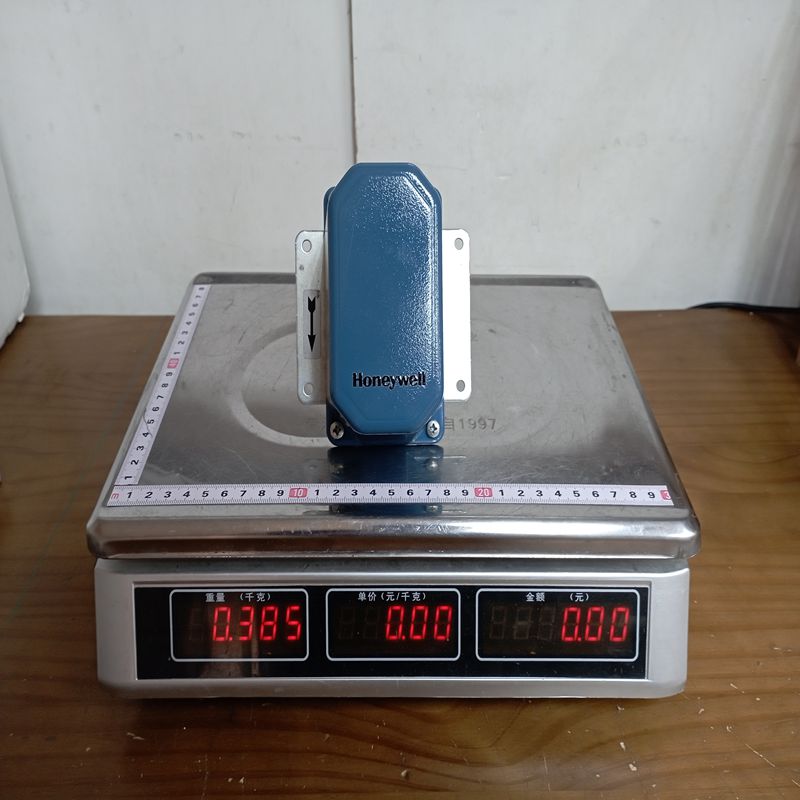

Product Dimensions：

The Honeywell S6040A1003 is a high-performance differential pressure switch designed primarily for monitoring air pressure, vacuum, or differential pressure in HVAC and ventilation systems.

Below is a detailed technical breakdown of this product in English.

1. Product Overview

The S6040A1003 belongs to Honeywell’s S6040 series. It acts as a safety or control device by sensing changes in air pressure and triggering an electrical contact when a specific setpoint is reached. It is commonly used to monitor filter status or fan operation.

2. Technical Specifications

These parameters define the operational limits and physical characteristics of the device:

3. Key Product Advantages

• High Precision: Features a calibrated scale for easy and accurate setpoint adjustment.

• Durability: Built with high-quality materials to ensure long-term stability and a million-plus cycle lifespan.

• Ease of Installation: Includes versatile mounting brackets and PG11 cable glands for simplified wiring.

• Reliability: The IP54 rating provides excellent protection against dust and water splashes in industrial environments.

• Clear Visibility: Usually features a transparent cover, allowing for quick inspection of the setpoint and internal components.

4. Product Applications

The S6040A1003 is widely used in Building Management Systems (BMS) for:

• Filter Monitoring: Detects when a filter is clogged by measuring the pressure drop across it.

• Fan/Blower Control: Verifies air flow in ducts; if the fan fails, the pressure drop triggers an alarm or shuts down the system.

• Cleanroom Monitoring: Maintains specific pressure gradients between different rooms.

• Frost Protection: Used in heat exchangers to prevent ice buildup by monitoring air flow resistance.

5. Important Precautions (Notes)

• Mounting Orientation: For maximum accuracy, the switch should be mounted vertically. If mounted horizontally, the switching point may shift slightly due to the weight of the diaphragm.

• Condensation: Ensure the pressure tubes are sloped downwards away from the switch to prevent condensation from entering the housing.

• Electrical Safety: Always disconnect power before opening the cover to adjust the setpoint or perform wiring.

• Media Limitation: Do not use this device with flammable or corrosive gases, as it may damage the silicone diaphragm or cause a fire hazard.

6. Wiring Configuration

The SPDT contact allows for two types of logic:

1. Normally Open (NO): Closes when the pressure rises above the setpoint.

2. Normally Closed (NC): Opens when the pressure rises above the setpoint.
