Honeywell FC-DCOM-232485 Communication Interface Module

Description

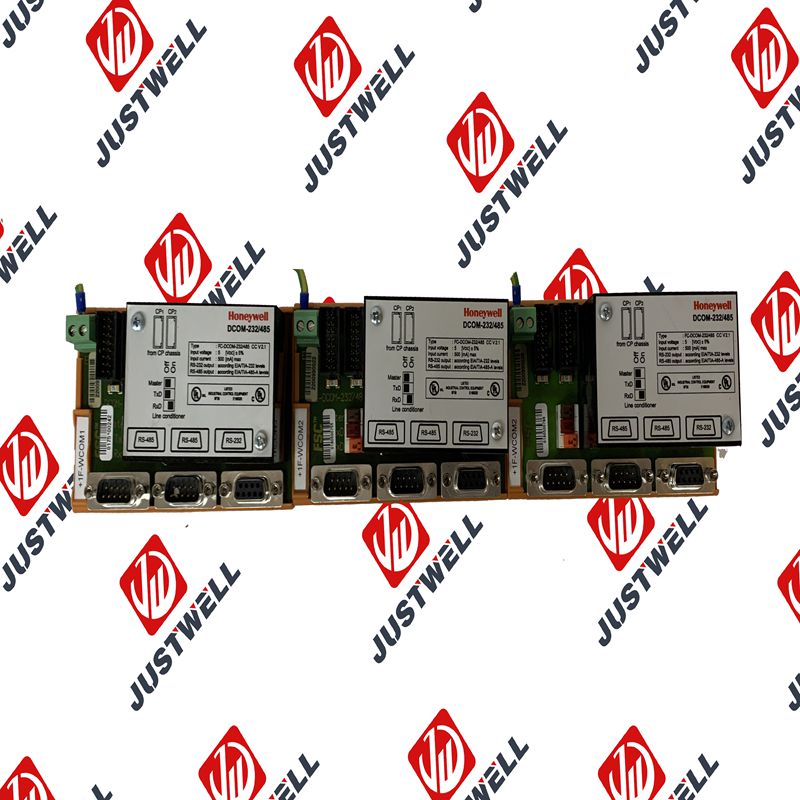

Honeywell FC-DCOM-232485 Communication Interface Module

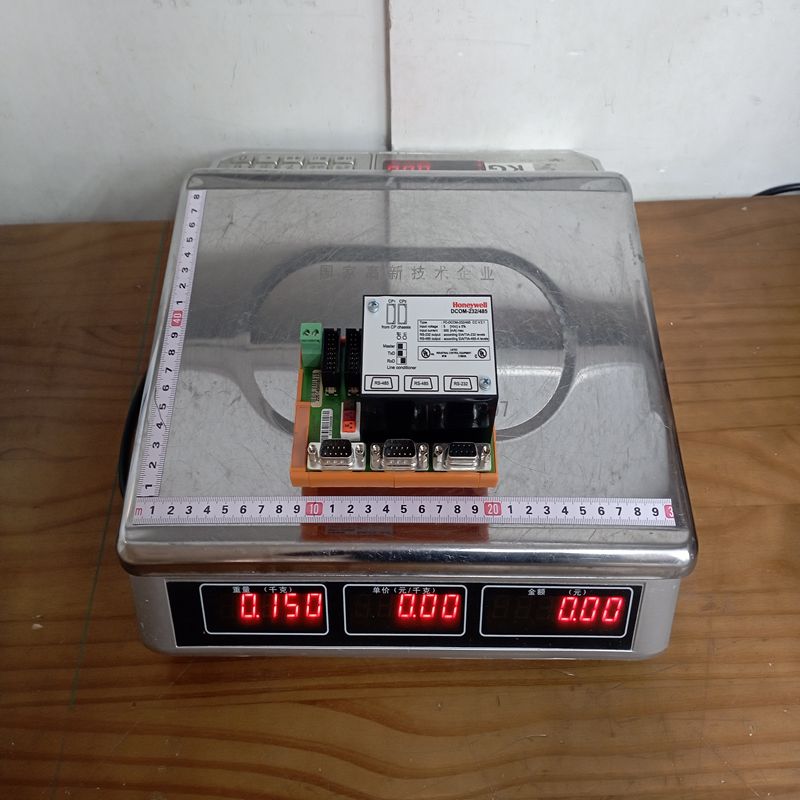

Product Dimensions：

1. Product Detailed Description

The FC-DCOM-232/485 module is a vital interface component that converts the internal communication signals of the Safety Manager into industry-standard RS-232 or RS-485/422 levels.

It is typically mounted on a DIN rail and connected to the Control Processor(s) via specialized cables. The module is engineered for high-integrity environments (up to SIL3 applications) where reliable communication between the safety system and third-party equipment (like PLCs, HMIs, or gas detectors) is mandatory.

2. Product Parameters (Specifications)

3. Product Advantages

• Dual Protocol Support: Provides flexibility by supporting both RS-232 (point-to-point) and RS-485/422 (multi-drop) standards in a single module.

• Safety System Integration: Specifically designed for use with Honeywell’s Safety Manager, ensuring full compatibility with redundant safety architectures.

• High-Speed Processing: Capable of handling baud rates up to 2 MBaud for RS-485, allowing for rapid data refresh in critical monitoring tasks.

• Galvanic Isolation: Protects the control processor from electrical noise and surges present on external communication lines.

• Industrial Ruggedness: Certified for high-temperature environments (up to 70°C) and harsh industrial interference.

4. Cautions & Precautions

• Power Source: This module is powered by the Control Processor. Ensure the 5V supply from the processor is stable; exceeding 5V $\pm 5\%$ may damage the internal circuitry.

• Electrostatic Discharge (ESD): As an electronic assembly, it is sensitive to ESD. Always use a grounding wrist strap during installation or handling.

• Configuration: The module must be correctly configured via hardware jumpers or software settings to switch between RS-232 and RS-485 modes. Incorrect settings may lead to communication failure.

• Termination: For RS-485 long-distance communication, ensure proper termination resistors (usually 120 $\Omega$) are applied at the end of the bus to prevent signal reflection.

5. Product Applications

The FC-DCOM-232/485 is primarily found in high-reliability industrial sectors:

• Emergency Shutdown Systems (ESD): Interfacing the safety controller with local operator panels or remote telemetry units.

• Fire & Gas (F&G) Systems: Connecting gas sensors or flame detectors that use serial communication to the main safety rack.

• Refining & Petrochemicals: Linking Safety Manager units to Distributed Control Systems (DCS) like Experion PKS for monitoring.

• BMS Integration: Used in building management for high-security facilities to bridge safety data to supervisory workstations.
