Honeywell CC-UPTA01 Pass-Through Adapter Module

Description

Honeywell CC-UPTA01 Pass-Through Adapter Module

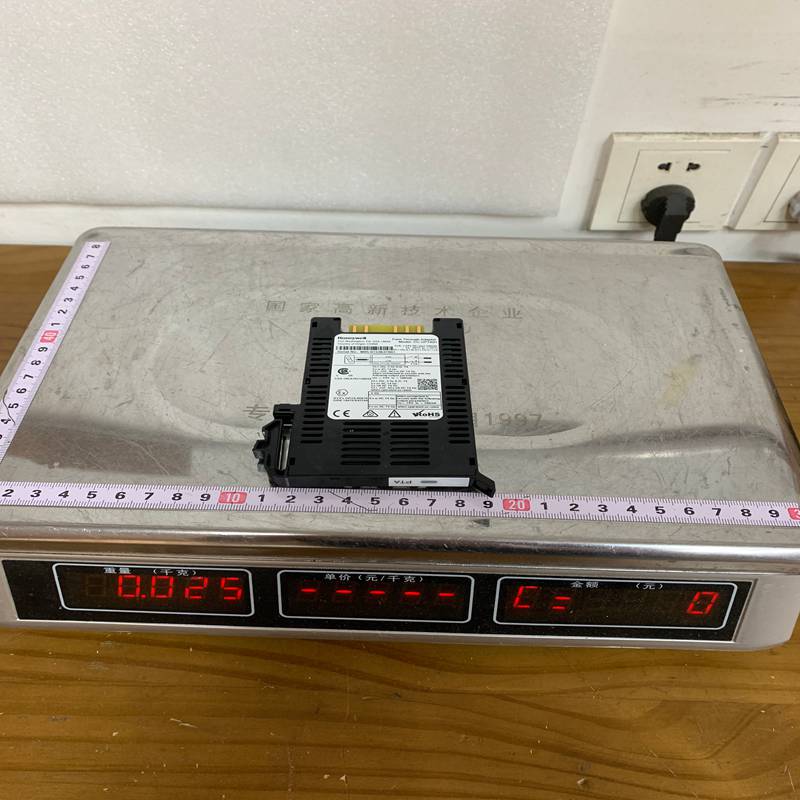

Product Dimensions：

The Honeywell CC-UPTA01 is a high-performance Uncoated Universal Power Terminal Assembly module. It is a critical hardware component within the Experion PKS (Process Knowledge System) C300 controller environment, specifically designed for use with the Series C I/O system.

Product Detailed Description

The CC-UPTA01 serves as the physical interface and power distribution point for the Series C Universal Process I/O modules. It is designed to facilitate the wiring of field signals and provide the necessary power infrastructure to the associated I/O modules. The “Uncoated” designation means it does not have the conformal coating typically used for extra protection in highly corrosive (G3) environments, making it suitable for standard industrial control rooms.

Technical Parameters

Product Advantages

• Universal Versatility: Designed to work with Honeywell’s Universal I/O modules, which can be software-configured for various signal types (AI, AO, DI, DO), reducing the need for multiple hardware variants.
• Streamlined Wiring: The terminal assembly simplifies the connection between field devices and the C300 control system, reducing installation time and potential wiring errors.
• High Density: Its compact design allows for a high concentration of I/O points within a standard cabinet footprint, optimizing space in control rooms.
• Hot-Swappable Support: When used in a properly configured Series C system, it allows for the replacement of I/O modules without interrupting the power or signal integrity of the rest of the system.

Important Considerations & Precautions

• Environment Suitability: Because this is the Uncoated version, it should be installed in controlled environments (G1 or G2). If your facility is subject to high humidity or corrosive chemicals (G3), the coated version (CC-CPTA01) should be used instead.
• Power Loading: Ensure the 24V DC power supply feeding the terminal assembly is properly sized to handle the peak load of all 32 channels, especially when driving high-draw actuators or solenoids.
• Tightening Torque: When securing field wires to the terminal blocks, use the manufacturer-specified torque to prevent loose connections, which can lead to intermittent signals or overheating.
• Static Protection: Always use an ESD wrist strap when handling the assembly or plugging/unplugging the associated I/O modules to prevent damage to sensitive CMOS components.

Product Applications

The CC-UPTA01 is used in large-scale industrial automation projects utilizing the Honeywell Experion platform:

• Oil & Gas Refineries: Managing complex loops where signal types (analog vs. digital) may change during project commissioning.
• Chemical Processing: Providing the robust interface needed for thousands of sensor inputs and control outputs in a distributed control system (DCS).
• Power Generation: Used in the control of auxiliary systems and turbine monitoring where high reliability is non-negotiable.
• Pharmaceutical Manufacturing: Integrated into highly accurate process control systems requiring organized and high-density I/O management.
