Honeywell CC-PDIL01 51405040-175 Input Module

Description

Honeywell CC-PDIL01 51405040-175 Input Module

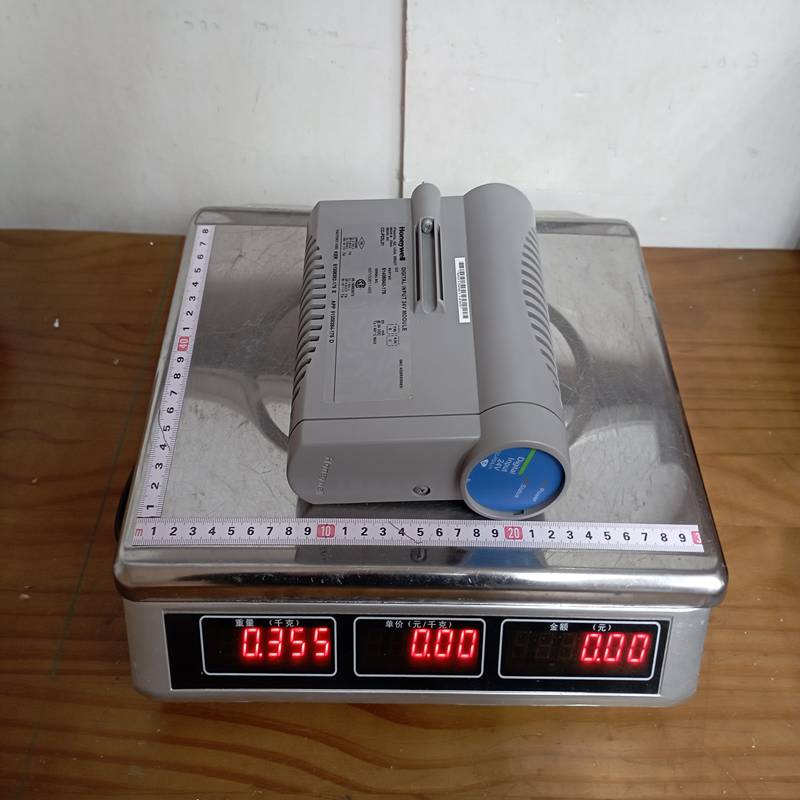

Product Dimensions：

The Honeywell CC-PDIL01 (Part Number: 51405040-175) is a high-performance Digital Input Leaf (DIL) Module belonging to the Experion PKS (Process Knowledge System) C300 controller family. It is a critical component used to interface field-level discrete signals with the C300 control environment.

Product Detailed Description

The CC-PDIL01 is a 24V DC Digital Input module designed for high-density industrial applications. It acts as the bridge between field devices (like switches, push buttons, or limit switches) and the I/O processor. The “51405040-175” designation refers to the specific coated version of the hardware, typically indicating Conformal Coating, which provides extra protection against harsh, corrosive, or humid environments.

Technical Parameters

Product Advantages

• High Density: Provides 32 channels in a compact “leaf” form factor, significantly reducing the footprint within the I/O cabinet.

• C300 Integration: Offers seamless, native integration with Honeywell’s Series C I/O, allowing for advanced diagnostics and easy configuration through the Experion PKS software.

• Environmental Resilience: The conformal coating (indicated by the -175 suffix) allows the module to operate reliably in “Class G3” harsh environments where moisture and corrosive gases are present.

• Hot-Swappable: Supports “Hot-Plug” capability, allowing modules to be replaced while the system is powered and the controller is running, ensuring zero process downtime.

• Advanced Diagnostics: Includes per-channel status LEDs and software-level alerts for open circuits or field power loss.

Important Considerations (Precautions)

• I/O Termination Assembly (IOTA): The CC-PDIL01 must be plugged into a compatible IOTA (such as the CC-TDIL01 or CC-TDIL11). Ensure the IOTA is correctly wired before seating the module.

• Electrostatic Discharge (ESD): Like all Honeywell Series C components, this module is sensitive to ESD. Always use a grounded wrist strap when handling the unit.

• Field Power: The module requires an external 24V DC power supply for the field-side signals. Ensure this power source is stable and correctly fused.

• Keying: Ensure the mechanical keying on the IOTA matches the module to prevent inserting the wrong module type, which could damage the hardware.

Product Applications

The CC-PDIL01 is widely used in large-scale industrial automation for monitoring:

• Process Interlocks: Monitoring the status of emergency stop buttons and safety gates.

• Valve Feedback: Receiving “Open/Closed” limit switch signals from pneumatic or electric actuators.

• Motor Control: Tracking the “Run/Stop” or “Fault” status from Motor Control Centers (MCC).

• Sensor Integration: Interfacing with proximity switches, level switches, and pressure switches in oil & gas, chemical, or power generation plants.
