Honeywell C6045D 1019 Air Pressure Switch

Description

Honeywell C6045D 1019 Air Pressure Switch

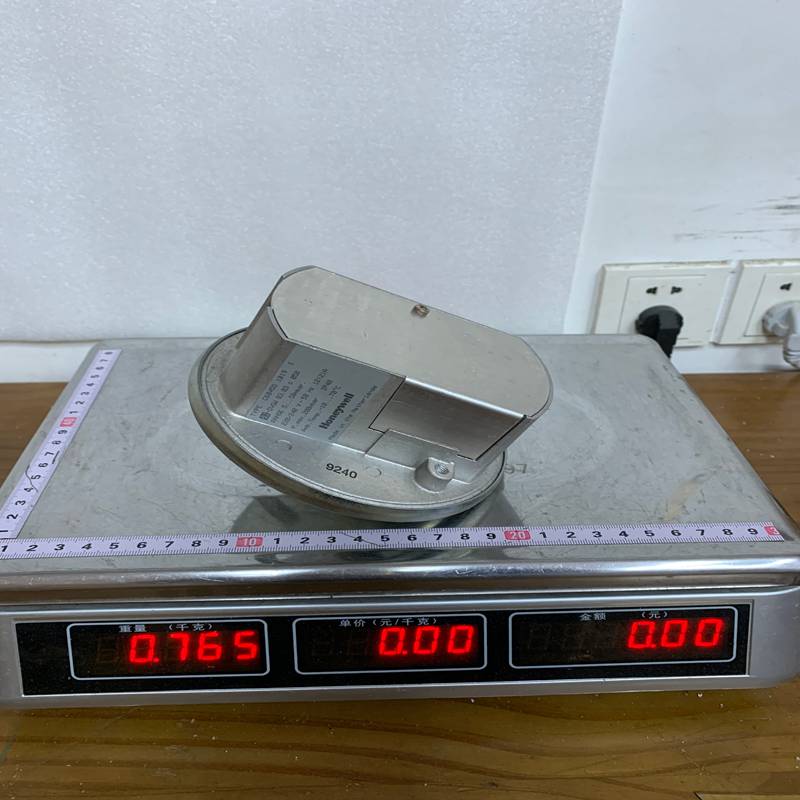

Product Dimensions：

The Honeywell C6045D 1019 is a high-reliability, industrial Air and Gas Pressure Switch. It is specifically engineered to monitor, detect, and control positive pressure, negative pressure (vacuum), or differential pressure of air and non-aggressive fuel gases within commercial and industrial combustion systems.

Product Detailed Description

The C6045D 1019 features a rugged die-cast aluminum housing designed to withstand demanding boiler room and industrial plant environments. It operates by utilizing an internal diaphragm that moves when pressure changes, acting upon an electrical SPDT (Single Pole Double Throw) microswitch. This switch can be wired to either close or open a circuit when the air or gas pressure reaches a user-defined setpoint.

Technical Parameters

Product Advantages

• Versatile Mounting: The robust mechanical design allows the switch to be installed either horizontally or vertically, providing excellent flexibility in tight piping manifolds or control cabinets.
• Dual Port Configuration: Equipped with different sized ports for positive (G1/4″) and negative (G1/8″) pressures, allowing a single module to easily act as a differential pressure monitor.
• Heavy-Duty Construction: The die-cast aluminum housing protects internal micro-components from mechanical stress, maximizing service life.
• High Electrical Capacity: Capable of handling up to 12A resistive loads, allowing it to directly switch small blowers or safety valves without requiring intermediate relays.

Important Considerations & Precautions

• Media Limitations: This switch is meant for air and non-aggressive gases (such as natural gas, propane, or butane). It must not be used with corrosive, chemically aggressive, or highly volatile industrial gases unless explicitly stated by the manufacturer.
• Ingress Protection: With an IP40 rating, the housing is protected against solid objects over 1mm but has no protection against water. Avoid installing it outdoors or in areas prone to heavy condensation or splashing without an additional protective enclosure.
• Setpoint Adjustment: Always calibrate and test the trip point using an external test manometer during commissioning to ensure the setting matches your system’s exact safety requirements.

Product Applications

The Honeywell C6045D 1019 is a staple in thermal processing and HVAC infrastructure:

• Gas Train Monitoring: Installed on the gas valve trains of commercial boilers or furnaces to cut off fuel supply if the incoming gas pressure drops too low or spikes too high.
• Combustion Air Proving: Used to verify that the combustion air blower is actively running and generating sufficient draft before an industrial burner is permitted to ignite.
• Filter Monitoring: Measuring differential pressure across large ventilation or exhaust air filters to signal when a filter is clogged and requires replacement.
• Flue Gas Systems: Monitoring negative draft pressures in industrial chimneys and exhaust flues to ensure safe ventilation of combustion byproducts.
