Honeywell 51309152-175 I/O Module

Description

Honeywell 51309152-175 I/O Module

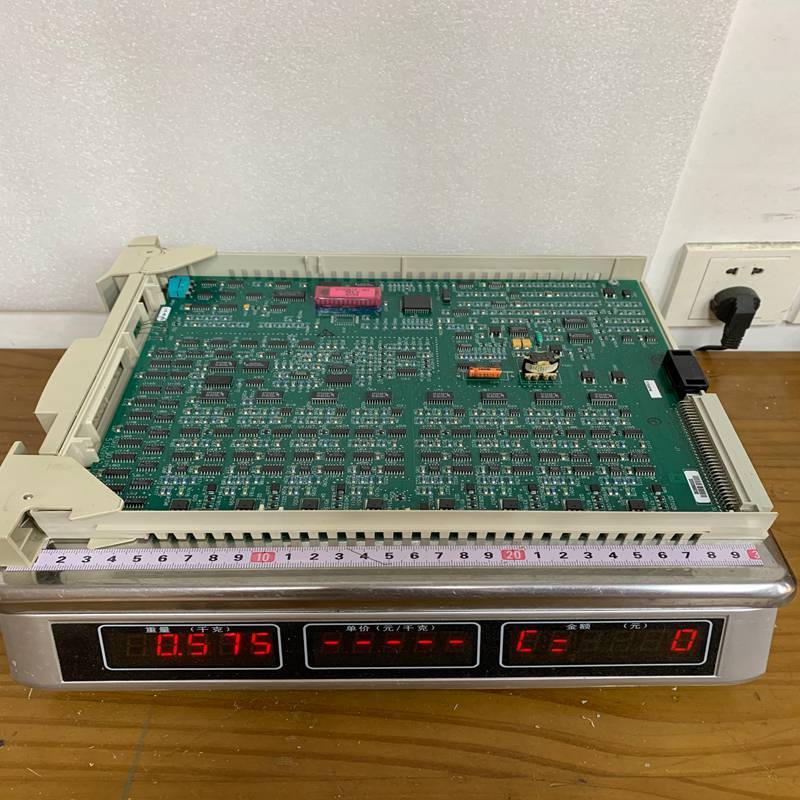

Product Dimensions：

The Honeywell 51309152-175 is a high-performance High Level Analog Input (HLAI) Module designed for use within the Experion PKS (Process Knowledge System) and TDC 3000 control architectures. It belongs to the I/O Processor (IOP) family, specifically tailored for High-Performance Process Manager (HPM) and Advanced Process Manager (APM) systems.

Product Detailed Description

The 51309152-175 module serves as a critical interface between field instruments and the control system. It is designed to receive and process standard analog signals (typically 4–20 mA or 1–5 V DC) from transmitters and sensors. This specific part number represents the circuit board assembly used to convert physical electrical signals into digital data that the controller can interpret for process automation.

Technical Parameters

Product Advantages

• High Density: With 16 channels per module, it maximizes the use of rack space, reducing the overall footprint of the control cabinet.
• Precision and Stability: Offers superior signal resolution and accuracy, which is essential for fine-tuned process control in industries like oil refining or chemical processing.
• Self-Diagnostics: The module includes onboard diagnostics that can detect internal hardware failures or out-of-range signals, alerting operators via the HMI.
• Hot-Swappable: Supports online replacement (when used in redundant configurations), allowing for maintenance without interrupting the active control process.

Important Considerations (Precautions)

• Field Termination Assemblies (FTA): This module must be paired with the correct FTA (e.g., MU-GAIH12 or MU-GAIH82) and the appropriate 50-pin cable. Using mismatched cables can lead to signal noise or hardware damage.
• Current vs. Voltage: If you are using 4–20 mA signals, ensure the 250 Ohm precision resistors are correctly installed on the FTA; otherwise, the module will only read voltage.
• Electrostatic Discharge (ESD): As a sensitive electronic component, always use a grounded wrist strap when handling the board to prevent static damage to the CMOS components.
• Redundancy: If the process is mission-critical, ensure the module is installed in a redundant pair configuration to prevent a single point of failure.

Product Applications

The 51309152-175 is a staple in large-scale industrial automation:

• Refining & Petrochemical: Monitoring pressure, flow, and level transmitters across distillation columns and storage tanks.
• Power Generation: Integrating feedback signals from steam turbines and boiler feedwater systems.
• Pharmaceutical: Precise monitoring of reactor temperatures and environmental conditions where high accuracy is mandatory.
• Metals & Mining: Managing heavy machinery sensors and conveyor belt instrumentation in harsh industrial environments.
