Honeywell 10018/E/1 Ethernet Communication Module

Description

Honeywell 10018/E/1 Ethernet Communication Module

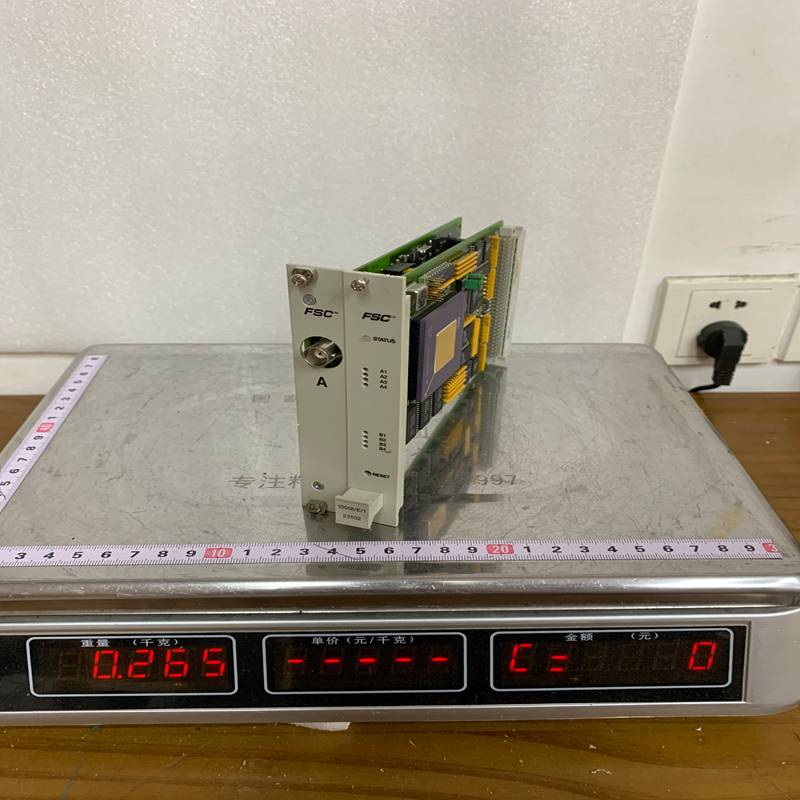

Product Dimensions：

The Honeywell 10018/E/1 is a high-reliability Digital Input Module belonging to the Safety Manager (formerly Fail-Safe Control – FSC) system. This module is a cornerstone of Honeywell’s industrial safety solutions, designed to provide high-integrity monitoring of field contacts in safety-instrumented functions.

Product Detailed Description

The 10018/E/1 is a 16-channel digital input module that operates on a 24 VDC logic level. Its primary role is to interface with field sensors—such as limit switches, pushbuttons, and pressure switches—and report their status to the Safety Manager controller. The module is engineered with internal redundancy and sophisticated self-diagnostics to meet SIL 3 (Safety Integrity Level 3) requirements.

Technical Parameters

Product Advantages

• High Diagnostic Coverage: The module performs continuous self-tests to detect internal hardware failures, ensuring that a “dangerous undetected fault” is extremely unlikely.
• Galvanic Isolation: Protects the sensitive controller electronics from field-side electrical noise, surges, and ground loops.
• Fault Reporting: Integrated with the Safety Manager software, it provides detailed error codes for rapid troubleshooting, distinguishing between channel faults and module-wide hardware issues.
• Density & Scalability: 16 channels in a single compact module allow for high-density safety I/O configurations, saving valuable cabinet space.

Important Considerations & Precautions

• Field Wiring: Ensure that 24 VDC field power is stable. Voltage drops over long cable runs can lead to “false OFF” signals if the voltage at the input terminal falls below the logic-low threshold.
• Safety Pairing: To maintain a SIL 3 rating for the entire loop, the module must be used in conjunction with a certified safety controller and appropriate field devices.
• ESD Sensitivity: Like all Safety Manager components, this module is sensitive to electrostatic discharge. Always use an ESD wrist strap when handling the card or inserting it into the chassis.
• Configuration: The module’s behavior (such as filtering or latching) must be correctly defined in the Honeywell Safety Builder software to match the specific safety logic requirements.

Product Applications

The Honeywell 10018/E/1 is deployed in critical infrastructure where failure is not an option:

• Emergency Shutdown (ESD): Monitoring manual call points and emergency stop buttons across a plant.
• Fire & Gas (F&G): Interfacing with smoke detectors, heat sensors, and gas detectors that provide a digital contact output.
• Interlock Systems: Monitoring the position of safety valves and access gates to ensure a process cannot start unless all safety conditions are met.
• Process Safety: High-level or high-pressure switch monitoring in chemical reactors and storage tanks.
