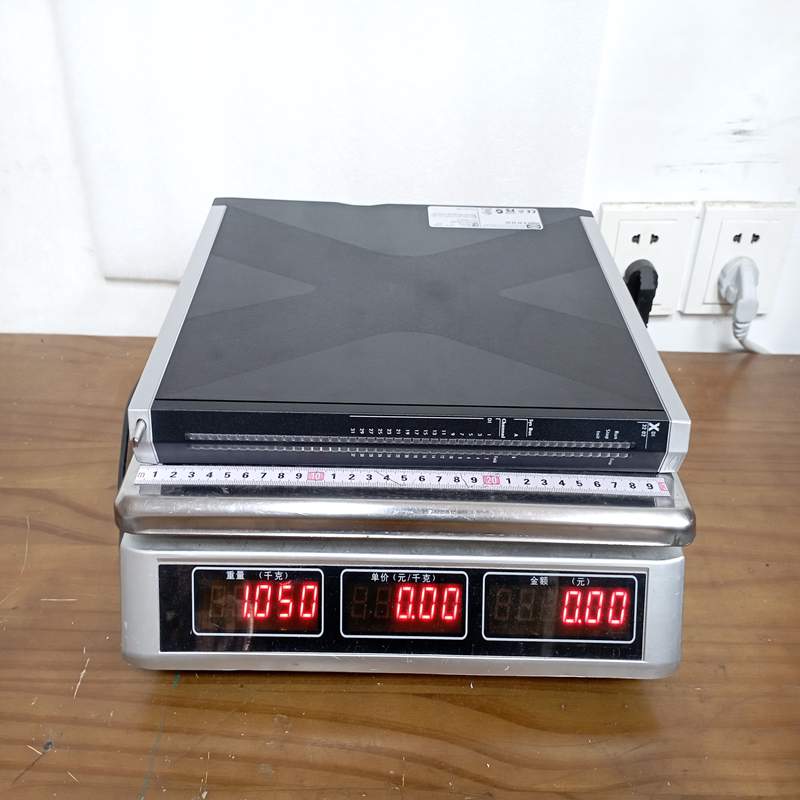

HIMA X-DI 32 02 32CH Safety Digital Input Module

Description

HIMA X-DI 32 02 32CH Safety Digital Input Module

Product Overview

The HIMA X-DI 32 02 is a high-density, safety-critical digital input module belonging to HIMA’s HIMax safety system family. Designed for Emergency Shutdown (ESD), Burner Management Systems (BMS), and Fire & Gas (F&G) applications, it provides 32 digital input channels with SIL 3 functional safety certification.

The module features integrated diagnostic capabilities, line-monitoring functionality (detecting open-circuit and short-circuit faults on field lines), and support for redundant configurations to ensure maximum process availability without sacrificing safety.

Technical Specifications

Key Advantages

• Certified Safety Standards: Fully SIL 3 certified according to IEC 61508 and IEC 61511, fulfilling strict safety regulations for critical infrastructure.
• Continuous Line Diagnostics: Advanced internal circuitry performs real-time diagnostics on field cables to immediately detect wire breaks or short circuits.
• Hot-Swappable Design: Enables quick online replacement during live operation (Hot-Swap) without stopping the safety system or causing spurious trips.
• Non-Interfering Dual/Redundant Topologies: Can be used in single or redundant (X-DI 32 02 pair) setups to guarantee maximum system availability and fault tolerance.
• High Channel Density: Packs 32 safety-rated inputs into a single compact card, reducing cabinet footprint and wiring complexity.

Important Installation & Usage Precautions

• Line-Monitoring Resistors: When line monitoring (short/open circuit detection) is enabled in SILWorX, ensure proper end-of-line (EOL) resistor networks (R_S and R_P) are installed near the field switch/sensor.
• System Redundancy & Baseplate Slotting: When configuring redundant input channels, verify that the modules are inserted into designated redundant slot pairs on the HIMax rack as defined in SILWorX.
• Earthing & Shielding: Properly ground field cabling shields to the cabinet ground bar to prevent Electromagnetic Interference (EMI) from corrupting 24 V DC input signal readings.
• SILWorX Software Configuration: The module parameters (filter times, line monitoring thresholds, trip behaviors) must be configured and locked via HIMA’s SILWorX engineering environment prior to commissioning.
• Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap when handling or replacing the X-DI 32 02 module to protect sensitive safety microcontrollers.

Applications

• Emergency Shutdown Systems (ESD): Processes field signals from pushbuttons, pressure switches, and temperature switches in oil & gas plants.
• Burner Management Systems (BMS): Monitors flame detectors, fuel gas valve limit switches, and purge switches in utility boilers and furnaces.
• Fire & Gas Systems (F&G): Captures digital status inputs from flame detectors, smoke detectors, and manual call points in hazardous areas.
• Turbomachinery & Compressor Control: Trip logic and overspeed digital inputs for steam/gas turbines and large industrial compressors.
