HI-OPTEL HSFP-03-3312M-22F SFP Optical Module

Description

HI-OPTEL HSFP-03-3312M-22F SFP Optical Module

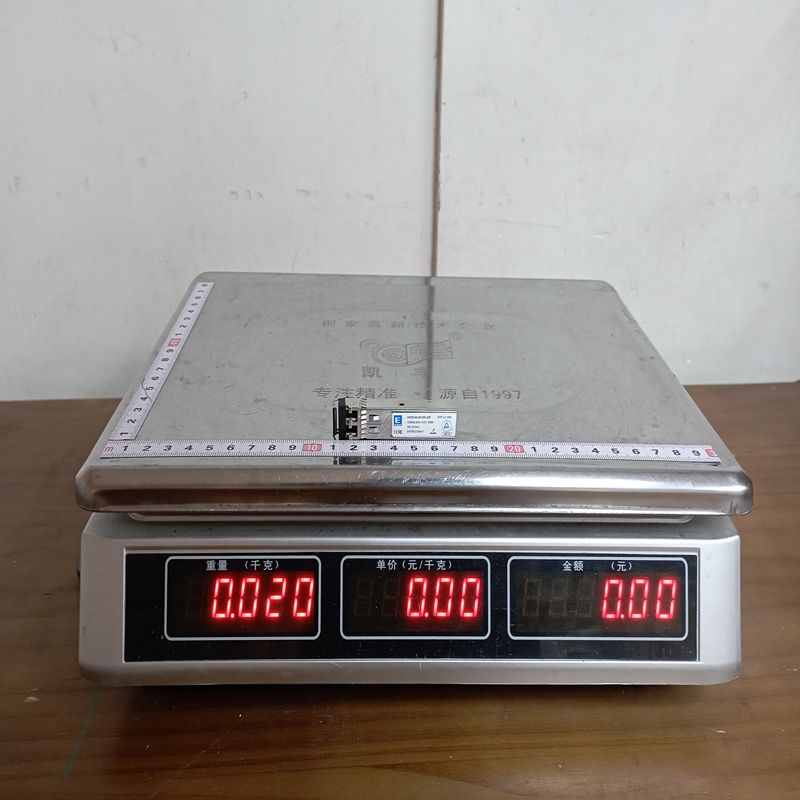

Product Dimensions：

The HI-OPTEL HSFP-03-3312M-22F is a high-performance, cost-effective Small Form-factor Pluggable (SFP) optical transceiver module designed for 100BASE-FX Fast Ethernet and OC-3/STM-1 SONET/SDH applications.

Below is the detailed technical breakdown of the product:

1. Product Description

The HSFP-03-3312M-22F is a hot-pluggable optical module that enables fiber optic communication over single-mode fiber (SMF). It operates at a nominal wavelength of 1310nm and supports transmission distances of up to 2km. It features a duplex LC connector interface and is compliant with industry-standard SFP Multi-Source Agreements (MSA).

2. Technical Parameters (Specifications)

3. Product Advantages

• Hot-Pluggable: Can be installed or removed without powering down the host system, ensuring zero downtime during maintenance.

• Low Power Consumption: Optimized electrical design to minimize heat dissipation within high-density switches.

• High Reliability: Built with an eye-safety design (Laser Class 1) and robust metal housing for EMI (Electromagnetic Interference) reduction.

• Broad Compatibility: Fully compliant with SFP MSA, allowing it to work seamlessly with switches/routers from various brands (e.g., Cisco, Huawei, H3C).

• Standardized Interface: Uses the widely adopted duplex LC connector for easy patch cord management.

4. Key Applications

• Fast Ethernet: 100BASE-FX links for enterprise and campus networks.

• Telecommunications: SONET OC-3 / SDH STM-1 infrastructure.

• Industrial Networking: Connecting industrial switches and media converters in factory automation.

• FTTX: Fiber-to-the-home/building distribution points.

5. Important Precautions (Notes)

• ESD Protection: Always wear an anti-static wrist strap when handling the module to prevent damage from Electrostatic Discharge.

• Optical Cleanliness: Do not remove the dust plugs until you are ready to connect the fiber. Ensure the fiber end-faces are cleaned with a specialized cleaner before insertion.

• Eye Safety: Never look directly into the optical bore of the transceiver or the end of a connected fiber cable while the laser is active.

• Compatibility Check: Ensure the host device’s SFP port supports 100Mbps/155Mbps rates, as some Gigabit-only ports may not be backward compatible.

• Bend Radius: Maintain the minimum bend radius of the fiber optic cables to avoid signal loss (attenuation).
