GE SELA36AT0100 Circuit Breaker

Description

GE SELA36AT0100 Circuit Breaker

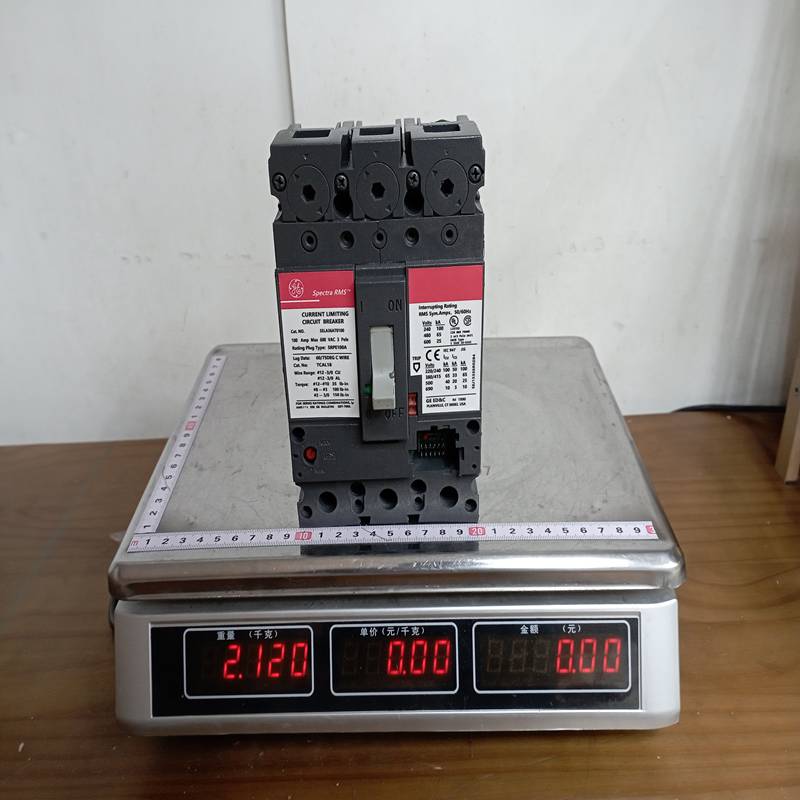

Product Dimensions：

The GE SELA36AT0100 is a high-performance molded case circuit breaker (MCCB) from GE’s Spectra RMS series. Known for its reliability and compact design, it is widely used in industrial and commercial electrical distribution systems.

Below is the detailed product information in English.

## Product Overview

The SELA36AT0100 belongs to the Spectra RMS Hi-Break family. It is a 3-pole, 100-ampere frame breaker that utilizes a sophisticated digital RMS sensing trip unit. The “SELA” designation indicates a high interrupting capacity, making it suitable for environments with high fault current potential.

## Technical Specifications

## Key Product Advantages

• Digital Accuracy: The RMS sensing technology ensures the breaker doesn’t nuisance trip due to harmonic distortion in the electrical system, providing precise protection.

• High Interrupting Capacity: With a 65kA rating at 480V, it can safely handle significant short-circuit currents, protecting downstream equipment.

• Compact Footprint: The SE150 frame size allows for high-density installation in panelboards and switchboards.

• Flexibility: It features interchangeable rating plugs, allowing the user to change the continuous current rating without replacing the entire breaker.

• Field-Installable Accessories: It supports a wide range of internal accessories, including shunt trips, auxiliary switches, and bell alarms.

## Common Applications

The SELA36AT0100 is versatile and found in various demanding environments:

• Industrial Plants: Protecting motor control centers (MCCs) and heavy machinery.

• Commercial Buildings: Main or branch protection in high-rise office distribution panels.

• Data Centers: Where high reliability and resistance to harmonic noise are critical.

• OEM Equipment: Integrated into custom power distribution units (PDUs).

## Important Precautions & Installation Notes

Warning: Electrical equipment should be installed, operated, and maintained only by qualified personnel.

1. Rating Plugs: This breaker requires a Rating Plug (e.g., SRPK100A) to function. The breaker will not close without the plug installed, and the plug must match the desired continuous current.

2. Mounting Orientation: It can be mounted vertically or horizontally without affecting the trip characteristics.

3. Torque Requirements: Ensure all terminal connections are torqued to the manufacturer’s specifications to prevent overheating.

4. Environment: Avoid installing in areas with excessive moisture, corrosive gases, or extreme dust without proper enclosures (NEMA rated).
