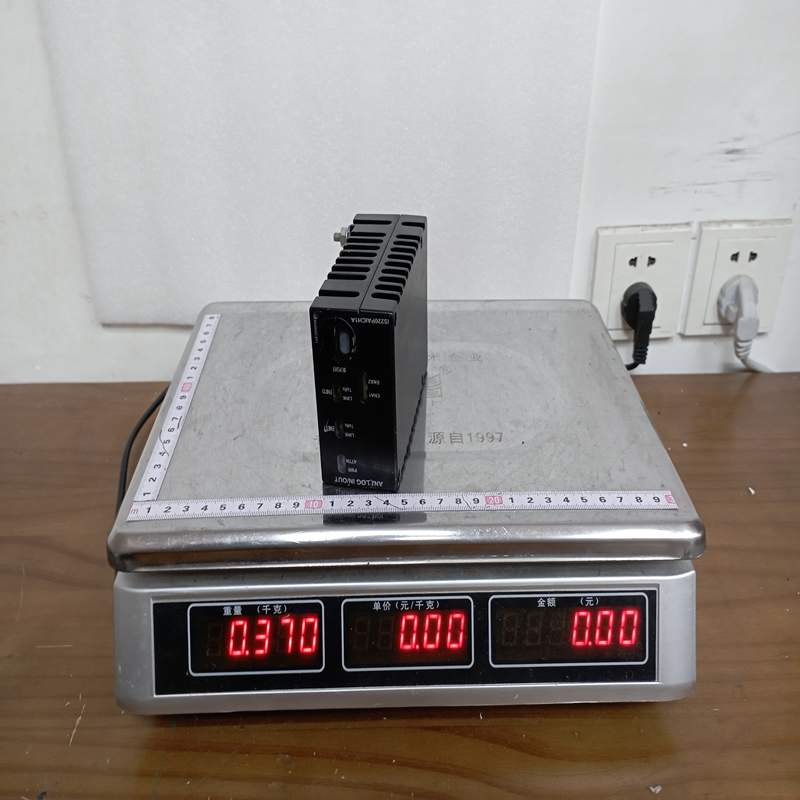

GE IS220PAICH1A Analog I/O Module

Description

GE IS220PAICH1A Analog I/O Module

Product Overview

The GE IS220PAICH1A is a high-performance Analog I/O Pack (PAIC) developed by General Electric as part of the Mark VIe Distributed Control System (DCS) platform.

It mounts directly onto a terminal board (such as the IS200STAIH1A or IS200STAIH2A) via a 37-pin D-sub connector, converting analog signals from field sensors into digital data transmitted over GE’s high-speed Ethernet IONet to the controller. The PAIC supports 10 analog inputs (voltage/current) and 2 analog outputs (0–20 mA or 4–20 mA current loops) for precise control and diagnostic feedback in gas, steam, and hydro turbine applications.

Technical Specifications

Key Advantages

• High Fault Tolerance (TMR Support): Fully supports Triple Modular Redundancy (TMR) architectures, using Software Implemented Fault Tolerance (SIFT) for dynamic input voting and continuous operation during single-pack failure.
• Distributed Ethernet Intelligence (IONet): Processes analog signals locally via an internal high-speed processor and streams digital signal data directly over redundant Ethernet lines, reducing long analog wiring runs and noise susceptibility.
• Hot-Swappable Design: Allows online module replacement during plant operation without taking down the controller or interrupting field loop power.
• Advanced Diagnostics: Built-in hardware watchdog, local temperature monitoring, sensor open-circuit/short-circuit detection, and LED status indicators facilitate fast troubleshooting.
• High Measurement Precision: Features high-resolution Analog-to-Digital (A/D) converters and software calibration for tight process loop control.

Important Usage & Installation Precautions

• Terminal Board Compatibility: Ensure the terminal board paired with the PAICH1A (e.g., STAI) is equipped with appropriate burden resistors for current loop inputs, as current-to-voltage conversion occurs across the terminal board resistors.
• Power & Grounding: Connect to a clean 28 V DC power supply source. Verify proper chassis grounding to prevent ground loops from degrading analog signal accuracy over IONet lines.
• Ethernet Cabling: Use shielded Cat5e/Cat6 industrial Ethernet cables for IONet connections (RJ-45) to ensure high noise immunity in EMI-heavy environments.
• Configuration Sync: Always ensure the pack configuration (range settings, calibration, current vs. voltage mode) matches the project parameters loaded via GE ToolboxST.
• ESD Safe Handling: The internal circuitry contains static-sensitive components; electrostatic discharge (ESD) wrist straps must be worn during installation or replacement.

Applications

• GE Speedtronic Mark VIe Turbine Controls: Serves as the primary analog signal processing unit for GE heavy-duty gas turbines, steam turbines, and combined-cycle power plants.
• Turbine Auxiliary Systems: Monitors process pressures, temperatures, valve positions (LVDT signals converted at terminal boards), and oil levels.
• Power Generation Plant Automation: Acts as an analog interface block in balance-of-plant (BOP) control systems, HRSG monitoring, and generator protection loops.
• Oil & Gas Processing: Applied in offshore platforms, compressor stations, and refinery process loops requiring Class I, Div 2 hazardous rating certifications.
