GE IC695PSD140B Rack Power Module

Description

GE IC695PSD140B Rack Power Module

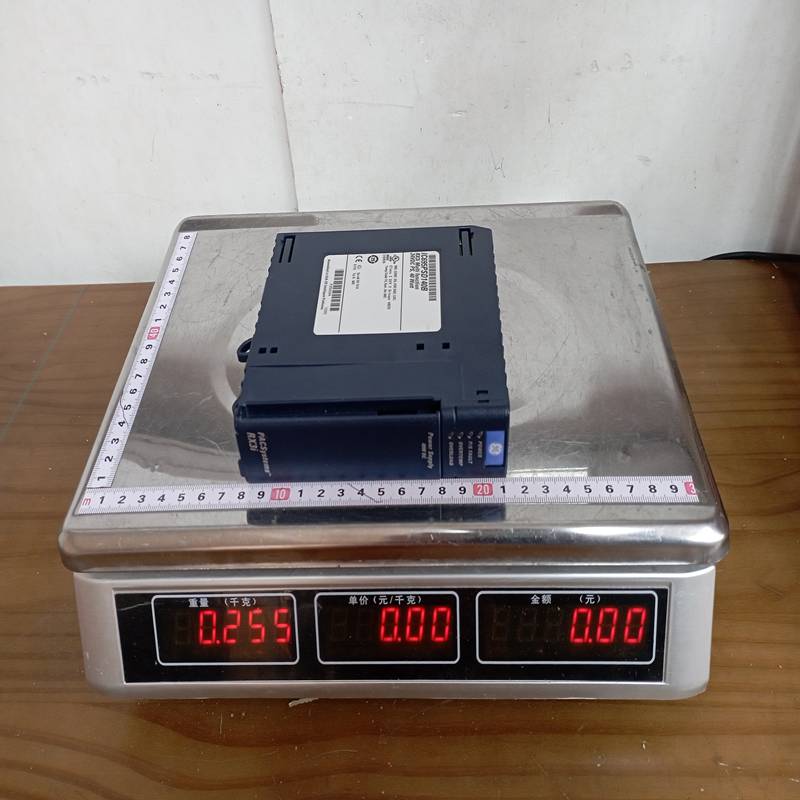

Product Dimensions：

The GE IC695PSD140B is a high-performance PACSystems RX3i Power Supply module designed to provide reliable DC power to the RX3i backplane. It is a multi-purpose power supply capable of supporting both the PCI and serial buses within the RX3i system.

## Product Detailed Description

The IC695PSD140B is a Multi-Voltage Power Supply that operates from a 24VDC nominal source. It occupies two slots on an RX3i Universal Backplane (IC695CHSxxx). This module provides three output voltages to the backplane:

• +5 VDC for logic circuits.

• +24 VDC for relay power and isolated circuits.

• +3.3 VDC for newer RX3i modules.

It features built-in protection against overvoltage, overcurrent, and reverse polarity, ensuring the longevity of the connected PLC components.

## Product Parameters

Below are the core technical specifications:

## Product Advantages

• High Efficiency: Optimized power conversion minimizes heat generation within the cabinet.

• Redundancy Support: Can be used in redundant power supply configurations to increase system uptime.

• Advanced Diagnostics: Includes internal temperature monitoring and an “Over Temperature” LED indicator to warn of overheating before a shutdown occurs.

• Hot-Swappable: Supports “Hot Insertion” into the backplane, allowing for maintenance without powering down the entire rack (under specific conditions).

• Rugged Design: Built to withstand harsh industrial environments with high vibration and temperature fluctuations.

## Precautions & Maintenance

• Current Limits: Ensure the total power consumption of all modules in the rack does not exceed the 40W limit.

• Proper Ventilation: Maintain adequate spacing around the rack to allow for natural convection cooling.

• Wiring: Use appropriate wire gauges for the 24VDC input to prevent voltage drops.

• Grounding: Ensure the backplane is properly grounded to the system earth to avoid noise interference or damage.

• Slot Placement: This module must be installed in a Universal Backplane (IC695); it is not compatible with older Series 90-30 backplanes.

## Product Applications

The IC695PSD140B is widely used in demanding automation environments, including:

• Oil & Gas: Control systems for pipelines and refineries.

• Power Generation: Management of turbine controls and substation automation.

• Water Treatment: Monitoring and controlling pumps and filtration processes.

• Manufacturing: Complex assembly lines requiring high-speed data processing via the RX3i PCI bus.
