GE IC693PWR330H Power Supply Module

Description

GE IC693PWR330H Power Supply Module

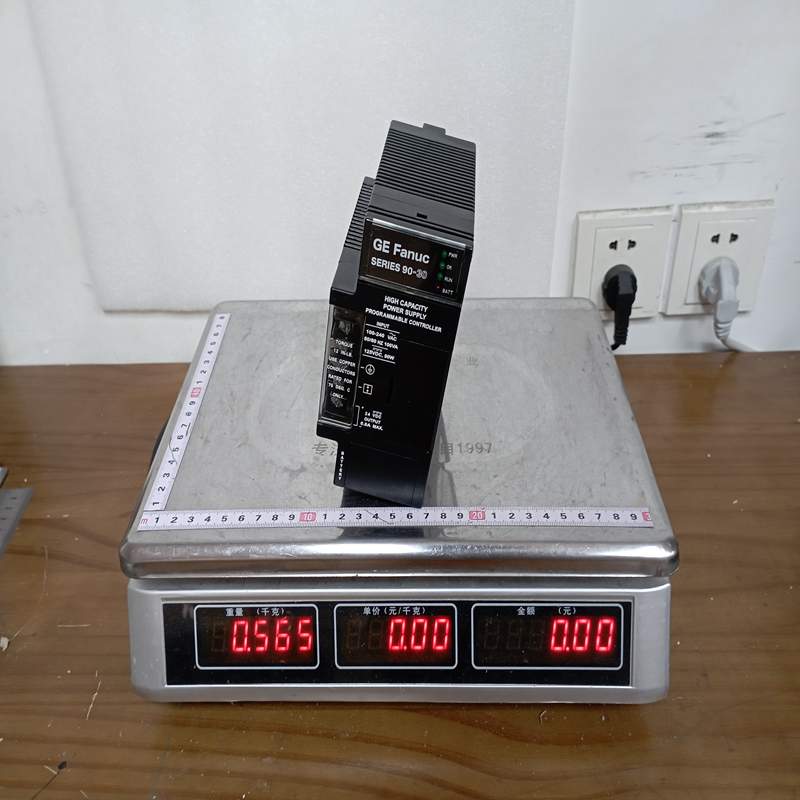

Product Dimensions：

The GE Fanuc IC693PWR330H is a High-Capacity Power Supply module from the Series 90-30 Programmable Logic Controller (PLC) family (now maintained under Emerson Automation Solutions). It is designed to provide robust and reliable DC power to the PLC backplane, supporting the CPU and various I/O modules.

Product Detailed Description

The IC693PWR330H is a rack-mounted power supply that occupies the leftmost slot of a Series 90-30 baseplate. It operates on a wide range of input voltages (both AC and DC) and converts this input into three distinct DC output voltages (+5V, +24V Isolated, and +24V Relay) to power the internal logic circuitry and field devices.

The “H” suffix denotes the specific hardware revision, indicating the latest updates for component reliability and manufacturing standards.

Technical Parameters

Product Advantages

• Dual Input Flexibility: Uniquely accepts both standard alternating current (AC) and high-voltage direct current (DC) inputs without requiring manual jumper configuration.
• High Output Capacity: Delivers up to 6 Amps on the +5V logic loop, allowing it to power power-hungry CPUs and dense analog/specialty modules in full expansion racks.
• Isolated Field Power: Provides a dedicated, isolated +24V DC output loop specifically for driving external field inputs, mitigating electrical noise back-feeding into the logic bus.
• Diagnostic Indicators: Equipped with a prominent front-face LED (“PWR”) to provide real-time status indication of the internal power health.

Important Considerations & Precautions

• Load Calculation: While it is a “High-Capacity” unit, the combined wattage draw of the +5V, +24V Relay, and +24V Isolated outputs must not exceed 30 Watts simultaneously. Exceeding this will trigger the overcurrent protection and shut down the PLC.
• Hot-Swapping Prohibited: Power down the entire system before removing or installing this power supply. Attempting to hot-swap the power supply will result in severe damage to the baseplate and adjacent CPU/IO modules.
• Grounding: To ensure proper noise immunity and safety compliance, the ground terminal on the module’s terminal strip must be connected directly to a low-impedance earth ground.

Product Applications

The IC693PWR330H is deployed across standard industrial automation environments where the Series 90-30 PLC platform is used:

• Water and Wastewater: Powering localized pump control panels and telemetry units.
• Material Handling: Used in automated conveyor systems, sorting facilities, and packaging lines.
• Manufacturing Assembly: Providing dependable power for distributed I/O racks on automated automotive or electronics assembly lines.
• Infrastructure Panels: Frequently integrated into HVAC, lighting control, and building management systems.
