GE IC693MDL646C 24VDC Digital Input Module

Description

GE IC693MDL646C 24VDC Digital Input Module

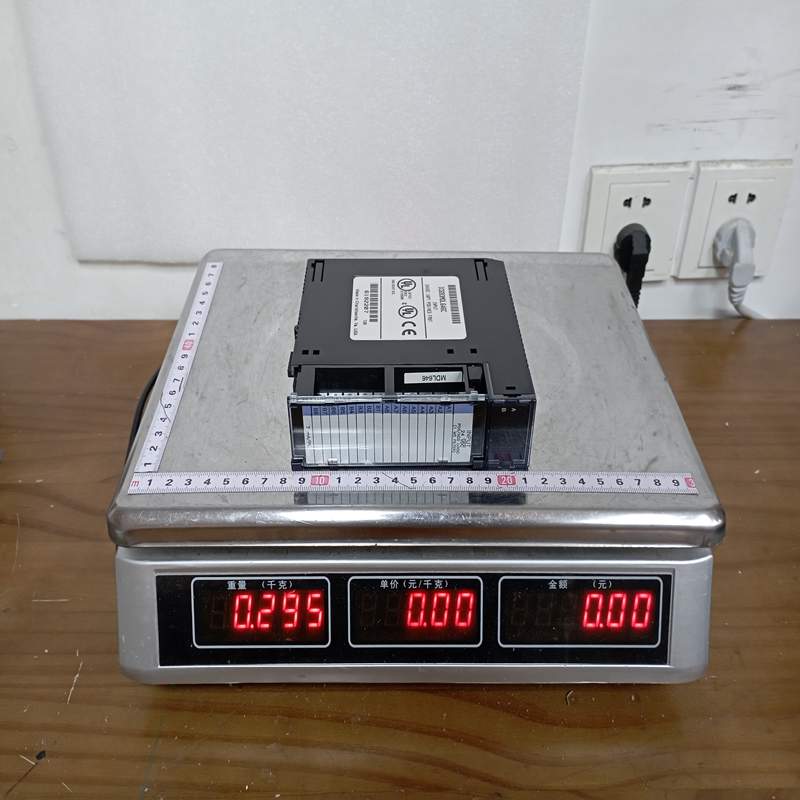

Product Dimensions：

The GE Fanuc IC693MDL646C (now managed under Emerson Automation Solutions) is a 24 V DC Positive/Negative Logic Input Module belonging to the Series 90-30 PLC family. It provides 16 discrete input channels, allowing the PLC to interface with various field sensors and switches.

Product Detailed Description

The IC693MDL646C is designed to detect the ON/OFF states of field devices. Because it supports Positive/Negative logic (also known as sinking or sourcing inputs), it is highly flexible; it can accept input signals that switch either the positive or negative side of the power supply. The “C” at the end of the part number indicates the specific hardware revision, which typically includes component optimizations over older “A” or “B” revisions while remaining fully backward-compatible.

Technical Parameters

Product Advantages

• Dual Logic Flexibility: By supporting both sinking and sourcing configurations, a single module type can be deployed regardless of whether the field devices switch to the positive rail or the common ground.
• Optical Isolation: Features electrical isolation between the field side circuitry and the sensitive logic side of the PLC backplane, protecting the controller from external surges.
• Group Isolation: The 16 inputs are split into two independent groups of 8. This allows you to use different power sources or logic types for each group on the same card.
• Status Indicators: Built-in LEDs on the front hinge cover display the ON/OFF status of each individual channel, simplifying field troubleshooting.

Important Considerations & Precautions

• Input Proximity / Noise: Due to the 7 ms filter delay, highly high-speed pulses (like from high-speed encoders) may not be registered. For fast inputs, a high-speed counter module should be used instead.
• Wiring Configuration: Ensure that the common terminal for a group (e.g., A1 or B1) matches the configuration (Sink/Source) of the instruments in that group. Mixing logic types within the same group of 8 will cause reading errors.
• Hot-Swapping: The Series 90-30 rack system generally does not support hot-swapping modules. Always switch off the PLC chassis power before removing or inserting the module to prevent damage to the backplane.

Product Applications

The IC693MDL646C is found in legacy and upgraded industrial control systems:

• Manufacturing Assemblies: Reading states from limit switches, proximity sensors, and photoelectric eyes on a conveyor.
• Operator Panels: Interfacing with pushbuttons, selector switches, and emergency stop monitoring circuits.
• Material Handling: Tracking the open/closed status of pneumatic gates, valves, and mechanical arms.
• Infrastructure Control: Monitoring fault contacts from motor starters, variable frequency drives, or circuit breakers.
