GE IC693MAR590B Relay Output Hybrid Module

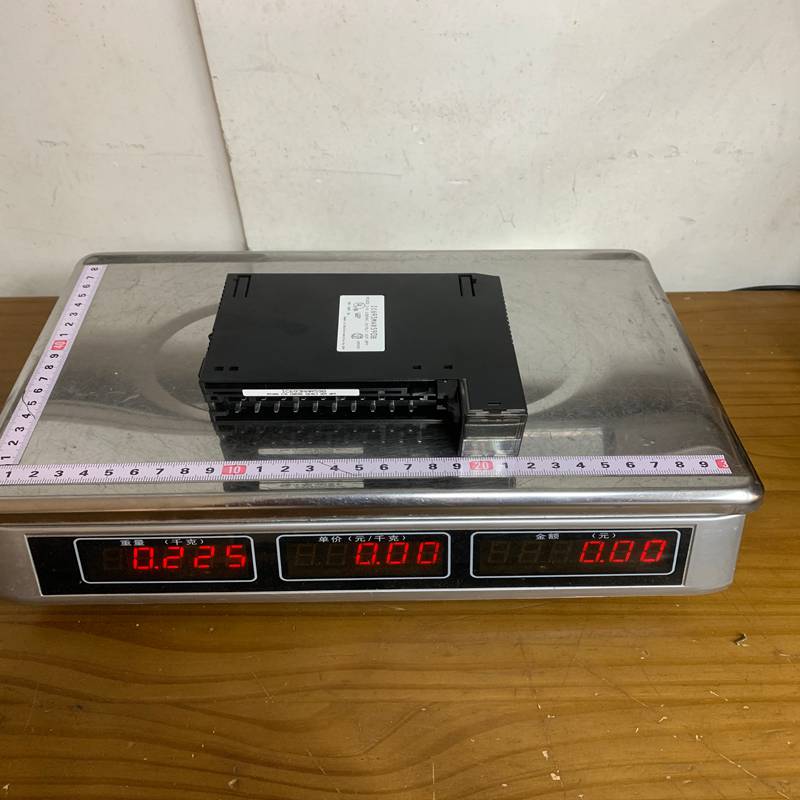

Product Dimensions：
The GE IC693MAR590B is a specific I/O module within the Series 90-30 Programmable Logic Controller (PLC) family, originally manufactured by GE Fanuc (now Emerson).
This particular module is a 120 VAC Input/Output Mixed Module, providing a cost-effective solution for applications requiring a small number of both inputs and outputs in a single slot.
Product Specifications
The IC693MAR590B features a combination of AC inputs and relay outputs.
| Feature | Specification |
| Module Type | Mixed Input/Output (I/O) |
| Input Points | 8 Points (120 VAC) |
| Output Points | 8 Points (Relay, Normally Open) |
| Input Voltage Range | 0 to 132 VAC (50/60 Hz) |
| Output Load Current | 2 Amps maximum per point |
| Internal Power Consumption | 80 mA from +5V bus; 125 mA from +24V Relay bus |
| Response Time | 30ms (Input) / 15ms (Output) |
| Isolation | 1500V between field side and logic side |
Key Product Advantages
-
Space Efficiency: Combining 8 inputs and 8 outputs into a single slot saves valuable rack space, making it ideal for compact control panels.
-
Versatile Switching: The relay outputs can handle both AC and DC loads, providing flexibility for different field devices.
-
Rugged Reliability: As part of the Series 90-30 line, it is designed for harsh industrial environments with high vibration and temperature fluctuations.
-
Ease of Maintenance: Features a removable terminal block, allowing for module replacement without disconnecting field wiring.
Important Considerations & Precautions
-
Current Limits: While each output can handle 2A, the total current for the common terminal must not exceed the module’s rated capacity (typically 4A total per common).
-
Inductive Loads: When switching inductive loads (like motors or solenoids), ensure you use external suppression (RC snubbers or varistors) to protect the relay contacts from arcing.
-
Module Placement: This module can be installed in any I/O slot of a 5-slot or 10-slot baseplate in a Series 90-30 system.
-
Wiring Safety: Always disconnect power before removing or inserting the module to prevent damage to the backplane or the module’s internal circuitry.
Common Product Applications
The IC693MAR590B is widely used in medium-to-light industrial automation, including:
-
Material Handling: Controlling small conveyor belts and sorting gates.
-
Water Treatment: Managing pumps, level sensors, and valve actuators.
-
Packaging Machinery: Coordinating basic start/stop sequences and limit switch feedback.
-
HVAC Systems: Monitoring environmental sensors and triggering fans or heaters.
