GE IC693BEM331L Bus Interface Module

Description

GE IC693BEM331L Bus Interface Module

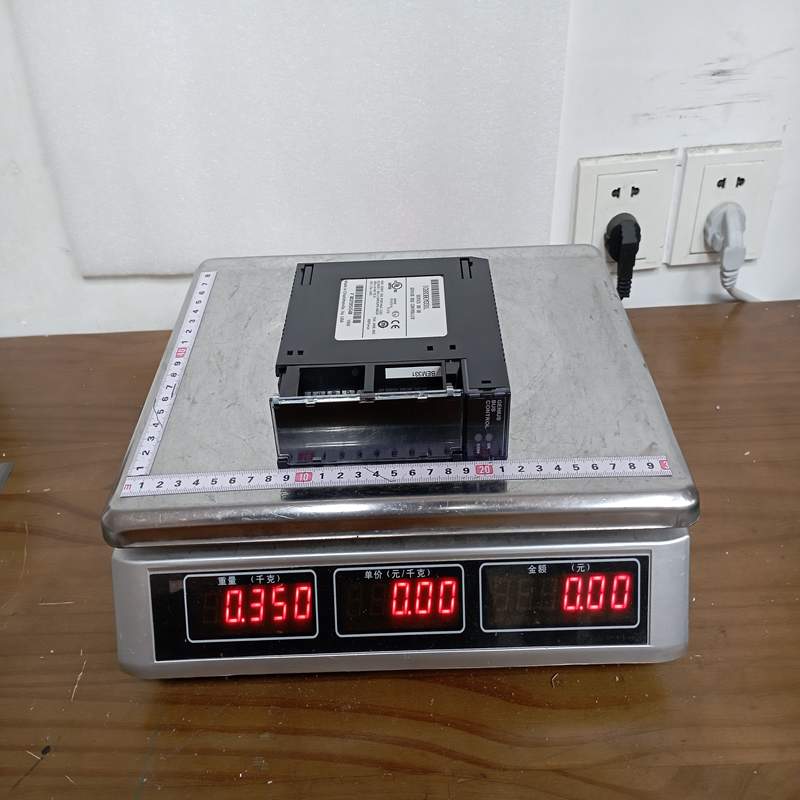

Product Dimensions：

The GE Fanuc (now Emerson) IC693BEM331L is a Genius Bus Controller (GBC) module designed for the Series 90-30 PLC system. It acts as the intelligent interface between the Series 90-30 controller and a Genius distributed I/O network.

Product Detailed Description

The IC693BEM331L allows a Series 90-30 CPU to manage a serial, token-passing Genius bus. A single Genius bus can support up to 32 devices (including the bus controller itself), which can include Genius I/O blocks, remote drops, power units, and other controllers. The module manages all network communications independently, offloading this processing burden from the main PLC CPU to maintain fast scan times.

The “L” suffix indicates the specific hardware/firmware revision of the module, reflecting the final manufacturing standards for high reliability and component updates.

Technical Parameters

Product Advantages

• Efficient Distributed Architecture: Reduces wiring costs drastically by allowing I/O blocks to be placed directly at the machine or process site rather than routing individual wires back to a central control cabinet.
• On-Board Diagnostics: Genius technology provides advanced diagnostics down to the individual channel level, detecting faults like short circuits, open wires, and overload conditions.
• Global Data Sharing: Supports “Global Data” transmission, allowing peer-to-peer data sharing between multiple PLCs on the same Genius network without complex programming.
• Hot-Swapping of Sub-devices: Field I/O blocks connected to the Genius bus can be replaced while the network and the IC693BEM331L remain fully operational.

Important Considerations & Precautions

• Baud Rate Matching: Every device on the Genius network must be configured to operate at the exact same baud rate as the IC693BEM331L. A mismatch will break network communication.
• Bus Termination: The physical ends of the Genius bus cable must be properly terminated with standard resistors (typically 75, 100, or 150 ohms depending on the cable type) to prevent signal reflection and data corruption.
• Configuration Software: The module must be configured using Proficy Machine Edition (or legacy Logicmaster 90) software. Ensure that the hardware configuration matches the physical slot position.
• Firmware Dependencies: Ensure your Series 90-30 CPU firmware is compatible with the “L” version of this module to ensure all advanced diagnostic and configuration features are supported.

Product Applications

The IC693BEM331L is typically utilized in legacy and retrofitted heavy industrial automation systems:

• Water and Wastewater: Managing distributed pumping stations and chemical treatment monitoring across a large physical plant footprint.
• Material Handling: Coordinating long conveyor systems, sorting systems, and automated warehousing applications.
• Power Plants & Utilities: Interfacing with remote turbine controls, distributed power monitors, and auxiliary equipment.
• Manufacturing Lines: Linking discrete automation clusters, assembly fixtures, and remote operator interfaces back to a centralized Series 90-30 controller.
