GE IC200ALG230F Analog Input Module

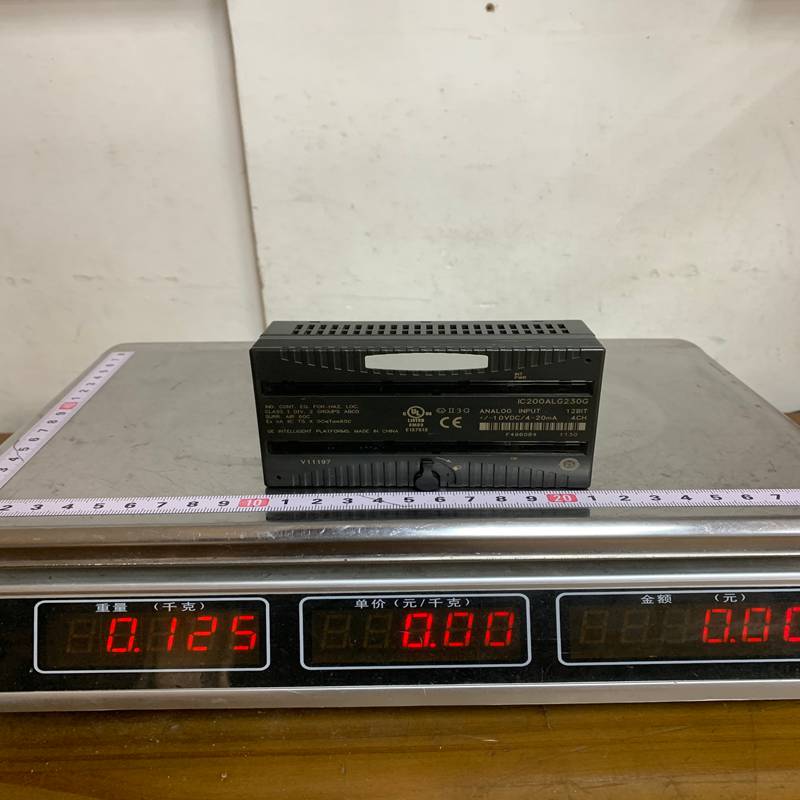

Product Dimensions：
Product Overview
The IC200ALG230 is an Analog Input Module from the GE VersaMax series. It provides an interface between the PLC (Programmable Logic Controller) and analog field devices. This specific module is designed to provide 4 channels of 12-bit voltage analog input, typically used to monitor sensors that output standard voltage signals.
Technical Specifications
| Feature | Specification |
| Module Type | Analog Input (Voltage) |
| Number of Channels | 4 (Single-ended) |
| Input Range | 0 to +10V DC |
| Resolution | 12 bits (2.5 mV per count) |
| Accuracy | +/- 0.5% of full scale (at 25°C) |
| Input Impedance | > 500k Ohms |
| Update Rate | 5ms (approx.) for all 4 channels |
| Power Consumption | 5V output: 25mA; 3.3V output: 10mA |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
Product Advantages
-
Hot-Swappable: Like most VersaMax modules, it can be extracted and replaced while the system is powered up (with an appropriate carrier), minimizing downtime.
-
High Density: The compact footprint allows for 4 channels in a very small space, saving cabinet real estate.
-
Seamless Integration: It integrates effortlessly with VersaMax CPUs or as remote I/O via Profibus, Ethernet, or DeviceNet.
-
Diagnostic LEDs: Features an “OK” LED to indicate the health of the module and the presence of power.
Important Considerations (Usage Notes)
-
Shielding: To prevent electromagnetic interference (EMI), always use shielded twisted-pair cables for analog signals and ground the shield at the source or the module, but not both.
-
External Power: Ensure the backplane power supply is sufficient to handle the current draw of this module alongside others in the rack.
-
Terminal Base: This module requires a separate terminal base (such as the IC200TBI001 or IC200TBA001) for wiring.
-
Calibration: The module is factory-calibrated; however, periodic system-level checks are recommended to account for sensor drift over time.
Product Applications
The IC200ALG230 is commonly used in industrial automation environments for:
-
Process Control: Monitoring pressure transducers or flow meters that output 0-10V.
-
HVAC Systems: Reading temperature or humidity sensors.
-
Positioning: Interfacing with potentiometers or ultrasonic sensors for distance measurement.
-
General Monitoring: Capturing data from any standard analog instrumentation in manufacturing or utility plants.
