GE HE693RTD601R RTD Temperature Input Module

Description

GE HE693RTD601R RTD Temperature Input Module

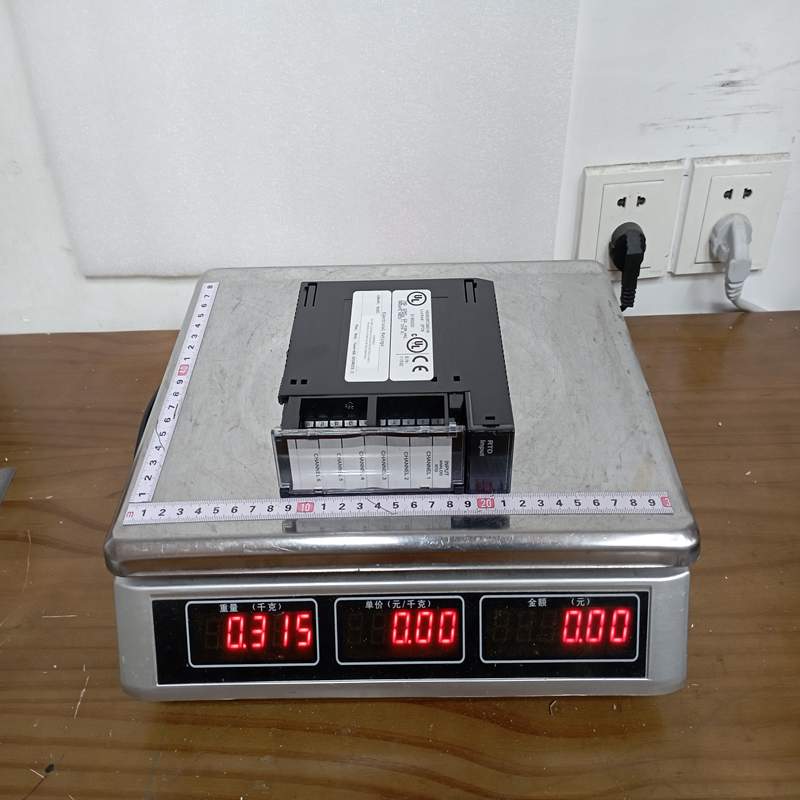

Product Dimensions：

The GE Fanuc HE693RTD601R is a specialized high-density temperature input module designed for the Series 90-30 PLC system. This module is manufactured by Horner APG (specifically for GE Fanuc networks) and allows the PLC to interface directly with Resistance Temperature Detectors (RTDs) to gather high-precision temperature data.

Product Detailed Description

The HE693RTD601R functions as a smart analog input module that provides several independent channels for RTD sensors. It handles the excitation current, signal conditioning, linearization, and analog-to-digital conversion internally, passing digitized temperature values straight to the Series 90-30 PLC’s CPU registers.

Technical Parameters

Product Advantages

• High Density & Accuracy: Offers 6 independent channels in a single slot with 16-bit resolution, ensuring highly accurate thermal tracking without consuming excessive backplane space.
• Lead-Wire Compensation: Supports 3-wire and 4-wire configurations, which automatically cancel out the electrical resistance introduced by long cable runs between the sensor and the control cabinet.
• Open-Circuit Detection: Built-in diagnostics immediately flag broken wires or sensor failures via %I or %AI bits to prevent the PLC from acting on faulty data.
• No External Transmitters Required: Eliminates the need for external 4-20 mA temperature transmitters, saving hardware costs and reducing points of failure.

Important Considerations (Precautions)

• Shielding and Noise: RTD signals are low-voltage analog signals susceptible to electromagnetic interference (EMI). Always use shielded, twisted-pair cables and ground the shield only at the PLC end.
• Configuration Settings: The module must be correctly configured in the GE Logicmaster, VersaPro, or Proficy Machine Edition software to match the exact RTD type (e.g., Pt100 vs. Ni120) being used. Incorrect selection yields highly inaccurate readings.
• Unused Channels: Unused channels should ideally be shorted or disabled in the software configuration to prevent open-circuit alarms or floating noise signals.
• Backplane Power Constraints: Calculate the overall 5V power budget of your Series 90-30 power supply to ensure adding this module does not overload the rack.

Product Applications

The HE693RTD601R is ideal for thermal monitoring across various industries:

• Plastic Injection Molding: Precise temperature control of extruder barrels and hot runner systems.
• Food & Beverage: Monitoring pasteurization, fermentation tanks, and industrial baking ovens.
• Chemical & Petrochemical: Tracking reaction vessel temperatures and storage tank conditions.
• HVAC & Building Automation: Environmental tracking in large facilities, server rooms, or cleanrooms.
• Power & Utilities: Monitoring bearing temperatures on large motors, pumps, and turbines to prevent catastrophic overheating.
