GE CR305X100E Upgraded Main Control Module for Insulation Monitoring Units

Description

GE CR305X100E Upgraded Main Control Module for Insulation Monitoring Units

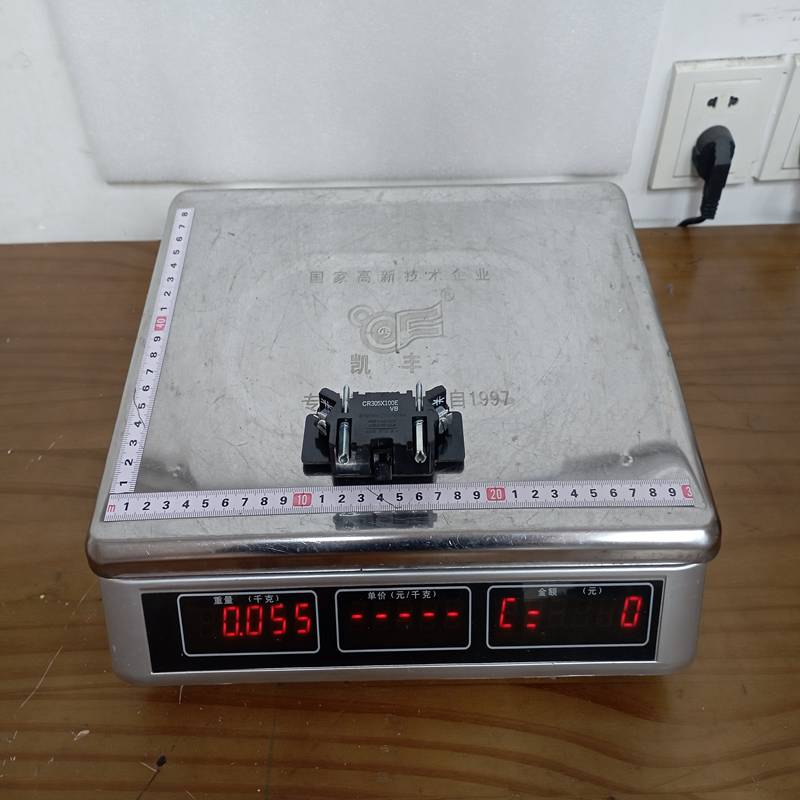

Product Dimensions：

The GE (General Electric) CR305X100E is a high-quality Auxiliary Contact Block designed for use with the 300-Line series of magnetic contactors and starters. It is a field-installable accessory used to provide additional signaling or interlocking logic within a motor control circuit.

Product Detailed Description

The CR305X100E is a side-mounted auxiliary contact kit. It features 1 NO (Normally Open) and 1 NC (Normally Closed) contact configuration. These contacts change state whenever the main contactor is energized or de-energized, allowing the control system to track the status of the motor (e.g., “Motor Running” or “Fault/Stopped” status).

Technical Parameters

Product Advantages

• Simple Installation: Designed for easy field mounting; it snaps or screws onto the side of the main contactor without requiring specialized tools.
• Bifurcated Design: The internal contacts are often bifurcated (split), which ensures high reliability even when switching low-voltage, low-current signals (logic levels).
• Compact Footprint: Adds minimal width to the contactor assembly, allowing for high-density mounting within control panels.
• Electrical Interlocking: Having both an NO and NC contact in one block makes it ideal for creating electrical interlocks (e.g., preventing two contactors from closing at the same time).

Important Considerations (Precautions)

• Contactor Size: This specific “E” suffix kit is typically rated for NEMA Size 00, 0, 1, and 2 contactors. Ensure your main contactor frame size is compatible before installation.
• Current Limits: While the contacts are rated for 10A thermal current, they are intended for control circuits only. Do not attempt to use these contacts to switch main motor power.
• Wiring Torque: Over-tightening the screw terminals can crack the plastic housing, while under-tightening can lead to overheating or intermittent signals. Follow GE’s recommended torque specs.
• Safety First: Always disconnect the main power and control power before opening the enclosure to install or wire the auxiliary block.

Product Applications

The CR305X100E is used extensively in industrial motor control centers (MCCs):

• Status Indication: Using the NO contact to light up a “Run” pilot light on a control panel door.
• PLC Feedback: Sending a digital signal to a PLC input to confirm that the contactor has physically closed.
• System Interlocking: Using the NC contact in the coil circuit of a second contactor to ensure “Forward/Reverse” or “Duty/Standby” operations are safely managed.
• Remote Alarms: Triggering remote telemetry or SCADA systems when a motor is started or stopped.
