Description
GE CL00A310T1 3-Pole AC Contactor

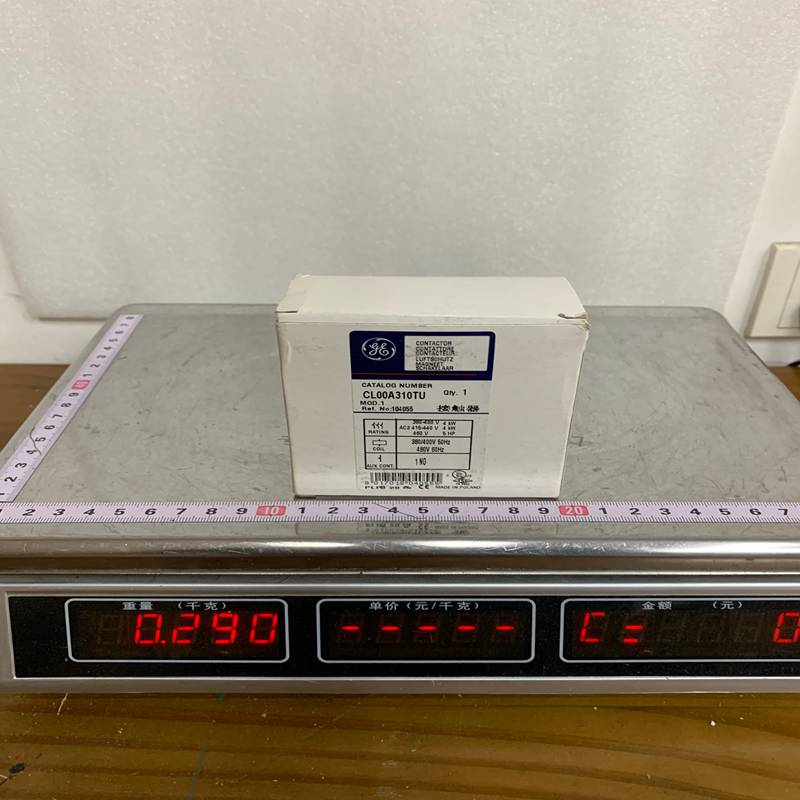

Product Dimensions：
The GE (General Electric) CL00A310T1 is a high-quality 3-pole magnetic contactor from the Industrial Solutions / C6000 series. It is specifically designed for starting and controlling AC motors and switching non-inductive or slightly inductive loads.
Product Detailed Description
The CL00A310T1 is a compact, non-reversing power contactor. The “CL00” designation indicates it is a Frame 00 device, which is the most compact size in the GE lineup. It features a high-performance electromagnetic coil and heavy-duty contacts designed for millions of electrical and mechanical operations.
Technical Parameters
| Feature | Specification |
| Product Series | GE CL Series (C6000) |
| Poles | 3-Pole (3NO – Normally Open) |
| Max. Operating Current (I_e) | 9 A (AC-3) / 25 A (AC-1) |
| Coil Voltage (U_c) | 110-120 V AC (50/60 Hz) |
| Motor Rating (460V) | 5 HP (Three-Phase) |
| Motor Rating (230V) | 3 HP (Three-Phase) |
| Auxiliary Contacts | 1NO (Built-in) |
| Mounting | 35mm DIN Rail or Screw Mounting |
| Terminal Type | Screw Terminals (IP20 Touch-Safe) |
| Standards | UL, CSA, IEC/EN 60947-1, 60947-4-1 |
Product Advantages
- Space-Saving Design: Its ultra-compact width allows for high-density installation in control panels where space is a premium.
- Tool-Free Accessory Mounting: Auxiliary contact blocks, timers, and mechanical interlocks can be snapped onto the front or side without the need for tools.
- International Standards: Fully compliant with global standards (UL for North America and IEC for Europe/Asia), making it suitable for export machinery.
- High Durability: Engineered for a mechanical life of up to 10 million operations and an electrical life of approximately 1 million operations at rated load.
Important Considerations & Precautions
- Coil Voltage Matching: Ensure the control circuit provides a stable 110-120V AC. Operating the coil at significantly lower voltages can cause “chattering,” which leads to contact welding.
- Overload Protection: A contactor alone does not provide thermal protection for a motor. It must be paired with a compatible Overload Relay (such as the GE MT series) to protect the motor from burnout.
- Orientation: While it can be mounted in various positions, the vertical position is preferred for optimal heat dissipation and mechanical performance.
- Tightening Torque: Always adhere to the recommended torque specifications for power terminals to prevent overheating caused by loose connections.
Product Applications
The GE CL00A310T1 is widely used in both commercial and industrial automation:
- Motor Control: Starting and stopping small three-phase motors for pumps, fans, and small conveyors.
- Lighting Systems: Controlling high-power lighting circuits in warehouses or stadiums.
- HVAC Equipment: Switching compressors and blowers in industrial air conditioning units.
- Machine Tools: Integrated into the control cabinets of lathes, milling machines, and packaging equipment.
