Foxboro lGP10-A22F1F Intelligent Gauge Pressure Transmitter

Description

Foxboro lGP10-A22F1F Intelligent Gauge Pressure Transmitter

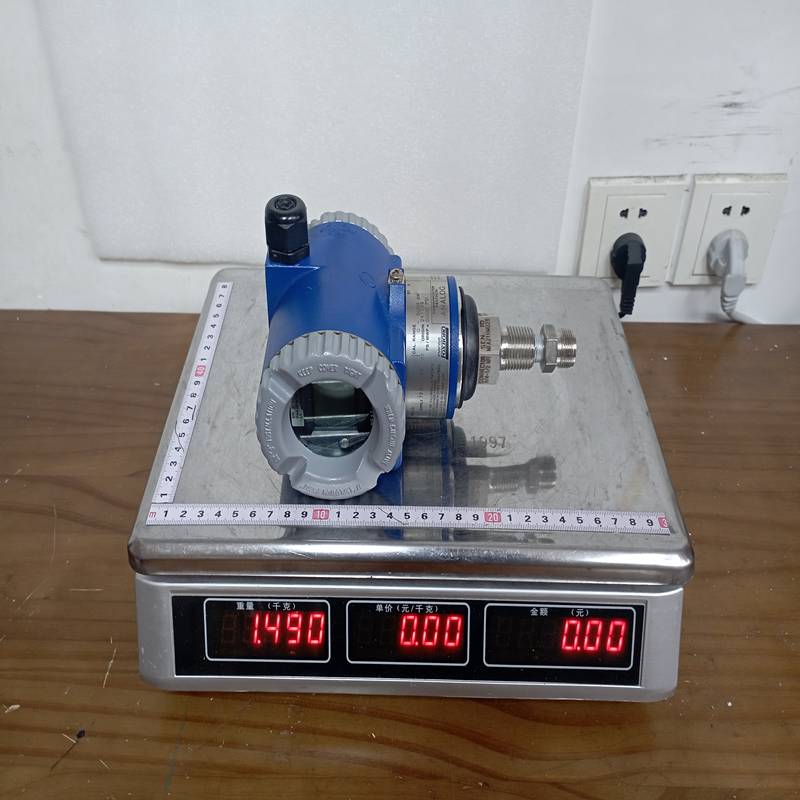

Product Dimensions：

1. Product Overview (Product Detailed Description)

The Foxboro IGP10-A22F1F is an intelligent, high-performance, 2-wire d/p Cell® family electronic transmitter that measures gauge pressure and transmits a proportional 4-20 mA analog output signal. Part of the industry-proven Foxboro I/A Series, it utilizes a silicon strain gauge microsensor to convert process pressure into an electrical signal.

The specific code breakdown for IGP10-A22F1F reveals its exact build:

• IGP10: Intelligent Gauge Pressure Transmitter

• -A: 4 to 20 mA Analog Output

• 2: 316L Stainless Steel Process Connection, 316L Stainless Steel Diaphragm, Silicone Fill Fluid

• 2: 1/2 NPT External Thread, 1/4 NPT Internal Thread Process Connection

• F: High Pressure Span Limits (2000 to 6000 psi / 14 to 42 MPa)

• 1: 1/2 NPT Conduit Connection, Aluminum Housing

• F: FM (Factory Mutual) Explosionproof Certification

2. Product Specifications (Product Parameters)

3. Key Advantages (Product Advantages)

• Robust Materials & Durability: Constructed with a Co-Ni-Cr or 316L SST wetted sensor element combined with an epoxy-coated housing, making it highly resistant to harsh, corrosive industrial environments.

• Exceptional Stability: Minimizes downtime and calibration costs with a long-term drift profile of less than $\pm0.05\%$ URL per year over a 5-year period.

• High Pressure Capability: The “F” span code allows accurate measurement up to 6000 psi, making it ideal for extreme hydraulic and high-pressure process systems.

• Simple Analog Integration: Seamlessly integrates into existing legacy loops or straightforward PLC/DCS analog input cards without requiring complex fieldbus addressing.

4. Operational Considerations (Precautions)

⚠️ Critical Safety and Handling Warnings

• Overpressure Limits: Never subject the transmitter to pressures exceeding the maximum overrange rating of 9000 psi. Doing so can permanently damage the silicon microsensor or cause structural failure.

• Explosionproof Environments (FM Rating): Ensure the conduit plugs and housing covers are fully engaged and tightly sealed to maintain the FM Explosionproof integrity in hazardous areas. Disconnect power before removing the cover in a live zone.

• Impulse Piping Stress: When connecting via the 1/2 NPT external or 1/4 NPT internal threads, use a wrench on the transmitter flats to counter-torque. Do not use the transmitter housing itself to tighten the connection, as it can damage internal seals.

• Temperature Limits: Ensure the process and ambient temperatures remain within specified limits (typically $-40^\circ\text{C}$ to $+85^\circ\text{C}$ for silicone fill) to prevent measurement shifts or oil degradation.

5. Industrial Applications (Product Application)

The high-pressure rating and rugged build of the IGP10-A22F1F make it ideal for the following applications:

• Oil & Gas Upstream: Wellhead pressure monitoring, manifold testing, and high-pressure injection system tracking.

• Chemical & Petrochemical Processing: Monitoring reactions and storage pressures in heavy industrial high-pressure chemical reactors.

• Power Generation: Main steam line monitoring and feed-water pump discharge pressure measurement.

• Hydraulic Systems: Heavy industrial machinery hydraulic loop monitoring, where pressure spikes up to 6000 psi occur.

• Pulp & Paper: High-pressure liquor or steam processing lines.
