Foxboro FBM233 HART Analog Input Fieldbus Module

Description

Foxboro FBM233 HART Analog Input Fieldbus Module

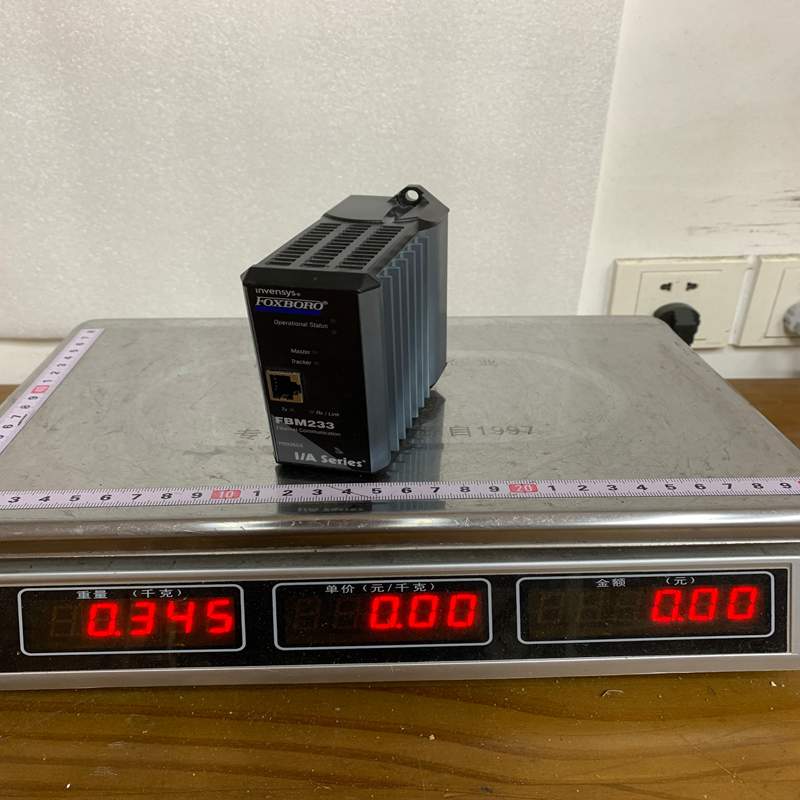

Product Dimensions：

The Foxboro FBM233 (Fieldbus Module 233) is a high-performance, high-density communication interface module belonging to the Foxboro I/A Series and EcoStruxure Foxboro DCS (Distributed Control System) family. It serves as a critical bridge between the control system and various field networks.

Product Detailed Description

The FBM233 is a 10/100 Mbps Ethernet Device Interface Module. It allows the Foxboro system to interface with external devices over Ethernet networks using industrial protocols such as Modbus TCP or EtherNet/IP (depending on the specific software driver loaded).

It can reside in a standard 1×8 or 1×2 modular baseplate and communicates with the system’s Control Processors (such as the CP60 or FCP270/FCP280) via the redundant 2 Mbps Module Fieldbus. The FBM233 is available in both non-redundant and redundant configurations to ensure high availability in critical control loops.

Technical Parameters

Product Advantages

• High Density & Integration: Connects up to 64 third-party Ethernet devices (like drives, smart meters, or PLCs) to a single module pair, reducing hardware footprints.
• Redundancy Support: Supports a redundant pair configuration (two FBM233 modules working side-by-side). If the primary module fails, the backup seamlessly takes over communication without interrupting data flow.
• Galvanic Isolation: The Ethernet ports are electrically isolated from the internal system logic, preventing field-side electrical surges from damaging the core DCS components.
• Hot-Swappable: Supports “Hot-Plug” replacement. Maintenance teams can replace a faulty module while the baseplate remains powered without disturbing adjacent modules.
• Robust Diagnostics: Provides real-time status LEDs on the front panel for visual troubleshooting (Module Status, Network Activity, Link Speed).

Important Considerations & Precautions

• Driver Configuration: The FBM233 requires the correct software driver (e.g., Modbus TCP driver) to be loaded into the Foxboro Control Processor. Ensure software licensing and revisions match your hardware.
• Network Segmentation: To maintain deterministic control, the Ethernet network connected to the FBM233 should be an isolated industrial network. Do not connect it directly to an unmanaged enterprise or office network to avoid broadcast storms.
• Baseplate Compatibility: Ensure the module is firmly seated into a compatible Foxboro modular baseplate and the locking screws are properly tightened to withstand vibration.
• IP Addressing: Carefully plan and document the static IP addresses assigned to the FBM233 ports and the sub-devices to avoid network address conflicts.

Product Applications

The FBM233 is used across heavy process industries to pull sub-system data into the main Foxboro DCS:

• Power Generation: Interfacing with Electrical Control Systems, Protection Relays, and Motor Control Centers (MCCs) over Modbus TCP.
• Oil & Gas Refineries: Connecting to independent safety systems, tank gauging systems, or skid-mounted PLCs (e.g., compressor controls).
• Chemical Processing: Integrating third-party analytical equipment, weigh scales, and smart variable frequency drives (VFDs) into the primary control strategies.
• Water & Wastewater: Gathering telemetry data from remote RTUs and pump stations over Ethernet networks.
