Fisher FS-67CFR-362 Pneumatic Filter Pressure Regulator

Description

Fisher FS-67CFR-362 Pneumatic Filter Pressure Regulator

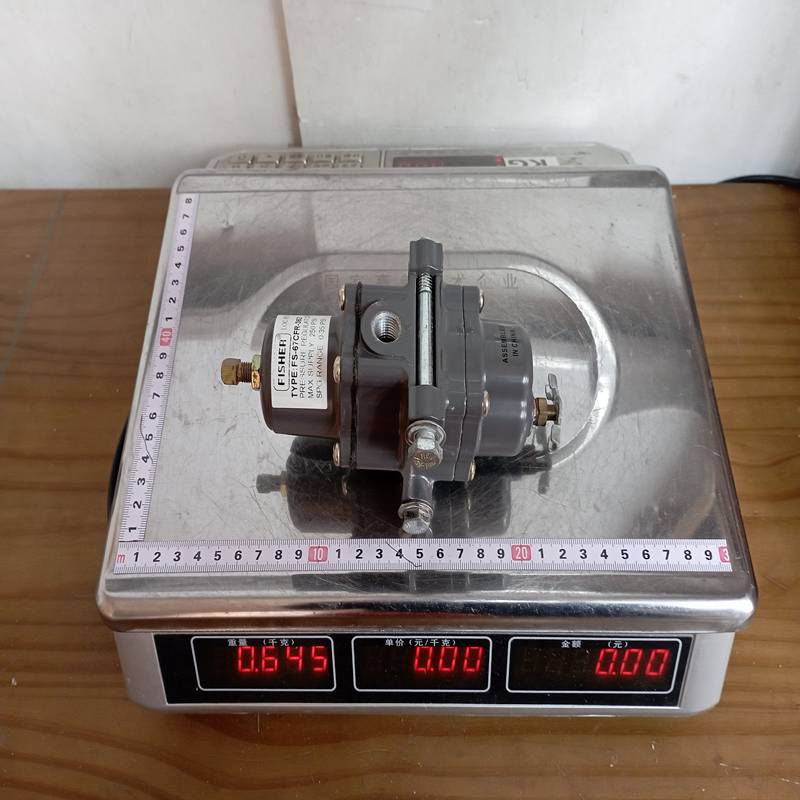

Product Dimensions：

The Fisher FS-67CFR-362 is a high-performance, filter-regulated pressure instrument commonly used in industrial pneumatic systems. It belongs to the 67C Series, which is known for providing constant, clean air pressure to controllers, transmitters, and other pneumatic equipment.

Below is a detailed breakdown of this specific model.

Product Description

The Fisher 67CFR-362 is an instrument supply regulator designed to provide clean, accurately regulated air pressure. The “FR” in the model name indicates that it includes an internal filter and an internal relief valve, which simplifies piping and provides overpressure protection for downstream equipment.

Key Technical Specifications

Product Advantages

• Integrated Filtration: The 5-micron filter ensures that moisture and particulates do not reach sensitive instruments, reducing maintenance costs and downtime.

• Compact Design: Its small footprint allows for easy installation in tight spaces or direct mounting on actuators and controllers.

• High Stability: It maintains a steady output pressure even when inlet pressures fluctuate, ensuring the accuracy of your pneumatic instruments.

• Internal Relief: The internal relief valve (67CFR models) vents excess pressure, preventing damage to downstream components without needing additional safety valves.

• Corrosion Resistance: The powder-coated aluminum body provides excellent durability in harsh industrial environments.

Product Applications

The 67CFR-362 is ubiquitous in the oil and gas, chemical, and power generation industries. Common uses include:

• Pneumatic Controllers: Providing a steady air supply to Fisher 3582 or 3610J positioners.

• Valve Actuators: Regulating the air used to open or close control valves.

• Air Tools: Small-scale pneumatic machinery requiring precise pressure.

• Pressure Transmitters: Supplying clean air for signal conversion.

Important Considerations (Safety & Maintenance)

1. Mounting Orientation: For the internal filter and drain to work effectively, the regulator should be mounted with the drain valve pointing downward.

2. Regular Maintenance: The filter element must be checked periodically. A clogged filter will cause a significant pressure drop and slow response times.

3. Pressure Limits: Never exceed the maximum inlet pressure of 250 psi. Doing so can cause diaphragm rupture or body failure.

4. Air Quality: While it has a 5-micron filter, the input air should still be relatively dry to prevent icing in extremely cold temperatures.
