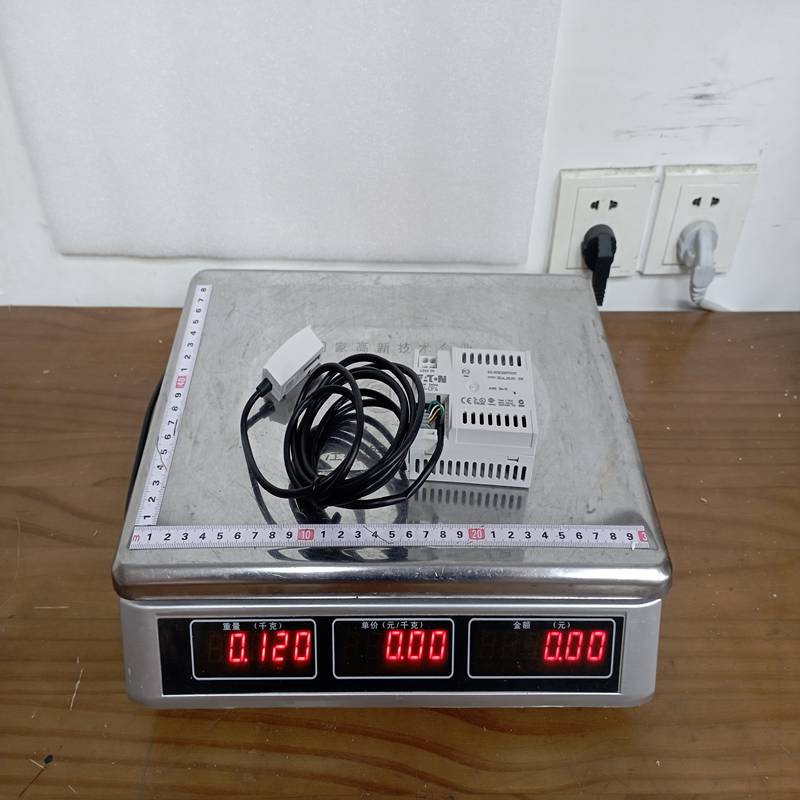

Eaton MFD-CP4 Communication Module

Description

Eaton MFD-CP4 Communication Module

The Eaton MFD-CP4 is a high-performance Controller/Power Supply module belonging to the easySafety and MFD-Titan (Multi-Function Display) multi-window display and control system family. It serves as the intelligent core that powers and controls the MFD display units, enabling simple automation and visualization tasks in a compact footprint.

Product Detailed Description

The MFD-CP4 is a back-end module that clips directly behind an MFD-Titan display unit (such as the MFD-80..). It combines the Central Processing Unit (CPU), programmatic logic memory, and the system Power Supply into a single hardware block. It acts as a smart relay/compact PLC controller that can be programmed using Eaton’s easySoft software, allowing users to process inputs, execute logic, and push graphics or text directly to the connected display screen.

Technical Parameters

Product Advantages

• Space-Saving Integration: By combining the power supply unit and the CPU logic on the back of the display screen, it eliminates the need for separate PLC hardware and complex interconnecting wiring.
• Cost-Effective Visualization: Provides a complete HMI (Human-Machine Interface) and low-point PLC control solution at a fraction of the cost of a standalone industrial PC or large touch panel.
• Flexible Expansion: It can function as a standalone device or be expanded with digital/analog I/O modules, or networked via easyNET to communicate with up to 8 other easy800/MFD devices.
• Industrial Durability: When paired with the correct front-facing MFD display unit, it provides high IP65 ingress protection, making it resilient against dust and water jets in harsh industrial fields.

Important Considerations & Precautions

• Voltage Stability: Ensure a stable 24V DC input. Transient voltage drops below 20.4V DC may cause the module to reset, losing temporary runtime data.
• Assembly Sequence: Always mount the MFD-CP4 onto the display unit before wiring the power supply terminals to ensure the internal interconnect pins seal correctly without bending.
• Programming Limitations: The MFD series is optimized for small-to-medium automation. For highly complex math functions or massive data tracking, an industrial PLC (like Eaton XC series) should be considered.
• Firmware Sync: If integrating into an existing easyNET network, ensure the firmware version of the MFD-CP4 aligns with the other devices on the network to prevent communication mismatch errors.

Product Applications

The MFD-CP4 is widely utilized in distributed automation loops and localized machinery control panels:

• Custom Machine Build: Control and operator interfacing for small packaging lines, labeling machines, and conveyor sorting stations.
• Building Automation: Managing lighting, heating/ventilation (HVAC) sequences, and greenhouse climate controls while giving local operators a text display to adjust setpoints.
• Pumping Systems: Regulating pressure booster pumps, wastewater level control loops, and multi-pump alternation schemes.
• Apparatus Construction: Providing a user-friendly interface on specialized test benches, industrial ovens, and material mixing equipment.
