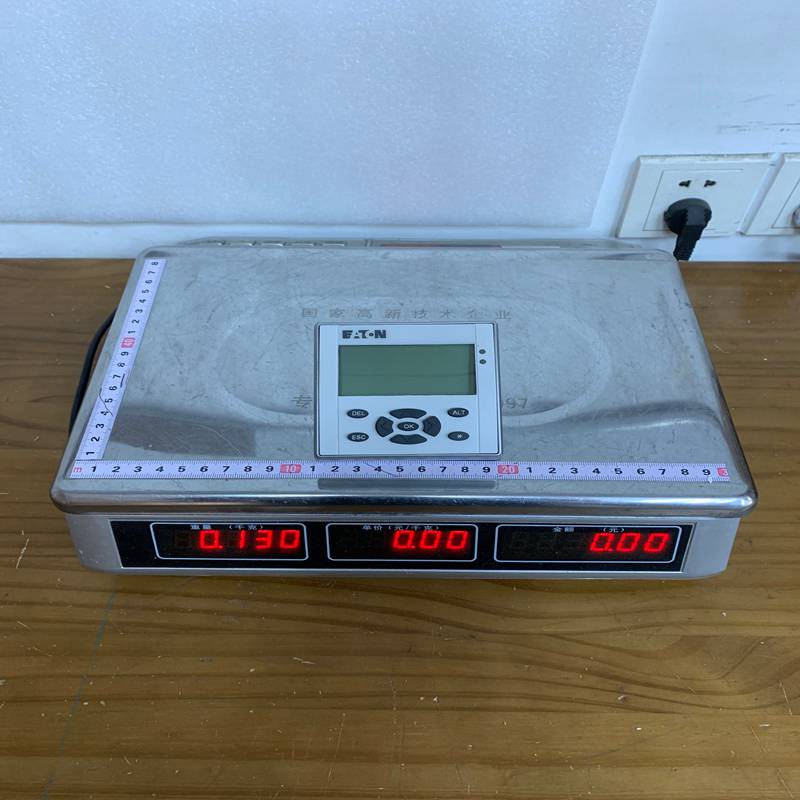

EATON MFD-80-B Multifunction Display

The Eaton MFD-80-B is a high-performance, compact Multi-Function Display module from the easyRelay (specifically easy800 and MFD-Titan) product family. It is designed to provide visualization, operator interface, and control capabilities for small-to-medium automation applications.

Product Detailed Description

The MFD-80-B serves as the human-machine interface (HMI) text display unit within the modular MFD-Titan system. It is combined with a controller/cpu module (such as the MFD-CP8) and an I/O module to form a complete, intelligent control and visualization system. The module features a backlit graphic display and a set of configurable operator buttons on the front panel, allowing users to monitor process variables, adjust parameters, and view system text messages directly on the machine enclosure.

Technical Parameters

Product Advantages

• Modular Versatility: The plug-and-play architecture allows the MFD-80-B to be easily paired with various CPU and I/O expansion modules depending on the project’s exact scaling requirements.
• Rugged Front Protection: With an IP65 environmental rating on the front panel, it is highly resistant to water jets and dust, making it ideal for harsh industrial environments.
• Customizable Interface: The 4 programmable function keys allow operators to trigger macro commands, switch screens, or toggle machine states without navigating deep menus.
• Clear Text & Graphics: Despite its compact size, the 132 \times 64 pixel resolution supports both multi-line text notifications and basic graphical icons (such as bar graphs or state animations).
• Cost-Effective HMI Alternative: Eliminates the need for expensive, large touchscreens in simple machines while providing significantly more data than traditional pilot lights and pushbuttons.

Important Considerations & Precautions

• Power Constraints: The MFD-80-B does not have its own independent power terminal; it relies entirely on the communication backplane of the companion CPU module. Ensure the CPU module is adequately powered.
• Gasket Inspection: To maintain the IP65 seal, verify that the front panel sealing gasket is perfectly seated and undamaged during cabinet installation.
• Screen Care: Avoid cleaning the display surface with abrasive chemical solvents or sharp objects, as this can degrade the protective plastic overlay.
• Programming Software: Configuration of screens, text strings, and logic functions requires Eaton’s easySoft-Pro software.

Product Applications

The MFD-80-B is widely implemented in decentralized control layouts and standalone machinery:

• Building Automation: Controlling lighting networks, roller shutter timing, greenhouse ventilation, and heating/cooling loops.
• Material Handling: Small conveyor belts, sorting gates, and lifting platforms that require local error codes and operator overrides.
• Pump & Valve Control: Water treatment systems, booster pumps, and agricultural irrigation machinery requiring pressure or flow monitoring.
• Custom OEM Machinery: Compact packaging machines, wood-processing tools, and industrial laundry equipment where a minimalist, rugged display is mandatory.
