Eaton F801 Power Supply Module

Description

Eaton F801 Power Supply Module

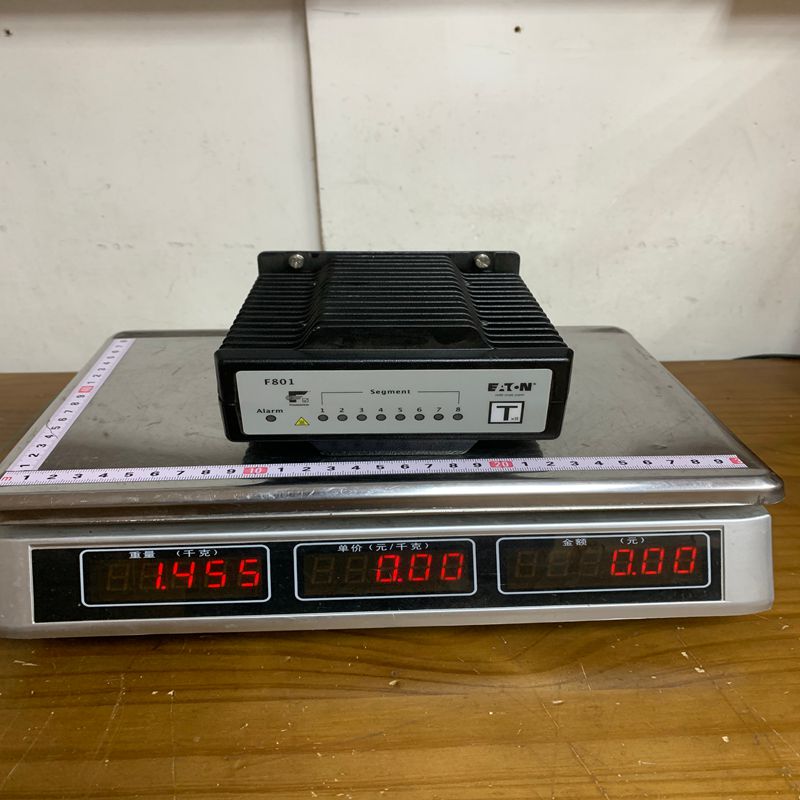

Product Dimensions：

The Eaton F801 is a high-performance Fieldbus Power Conditioner System (redundant) designed specifically for use in Foundation Fieldbus™ networks. It is a critical component in process automation, ensuring that the bus remains powered and stable even in the event of a module failure.

1. Product Description

The Eaton F801 system typically consists of a carrier (such as the F809F or F809F-Plus) and several F801 power modules. It is designed to provide redundant power to eight Foundation Fieldbus H1 segments. The system filters the DC power supply to prevent interference with the fieldbus digital signals and provides impedance matching for the network.

2. Technical Parameters (Specifications)

3. Key Product Advantages

• High Reliability: Features full redundancy; if one module fails, the second module takes over the load without any interruption to the segment.

• Hot-Swappable: Modules can be replaced while the system is live without disrupting the communication on the fieldbus segments.

• Compact Design: The high density of 8 segments per carrier saves significant space in the control cabinet.

• Low Heat Dissipation: Highly efficient power conversion reduces the need for extensive cooling systems.

• Integrated Diagnostics: Often used in conjunction with diagnostic modules (like the F809F) to monitor segment health, noise levels, and voltage drops.

4. Product Applications

The Eaton F801 is primarily used in Large-scale Process Industries where Foundation Fieldbus H1 is the communication standard. Common industries include:

• Oil & Gas: Refineries and offshore platforms.

• Chemical Processing: Plants requiring high uptime and intrinsic safety management.

• Pharmaceuticals: Precise control environments.

• Power Generation: Reliable data transmission for turbine and boiler control.

5. Important Considerations (Precautions)

• Carrier Compatibility: The F801 modules must be used with the correct Eaton/MTL F8xx series carriers.

• Grounding: Ensure the carrier is properly earthed to prevent EMI (Electromagnetic Interference) from affecting bus communication.

• Segment Loading: Do not exceed the 350mA current limit per segment, as this can trigger overcurrent protection and drop the segment.

• Environment: While rated for wide temperatures, ensure adequate ventilation within the cabinet to maximize the lifespan of the electronics.

• Terminations: Ensure that the fieldbus segment is terminated correctly at both ends (usually one terminator is built into the power conditioner carrier).
